Control Arm: Service and Repair

REMOVAL





1. Using special tool disconnect the lower arm ball joint from the knuckle.

NOTE: Be sure to tie a cord to the special tool and to a nearby part.

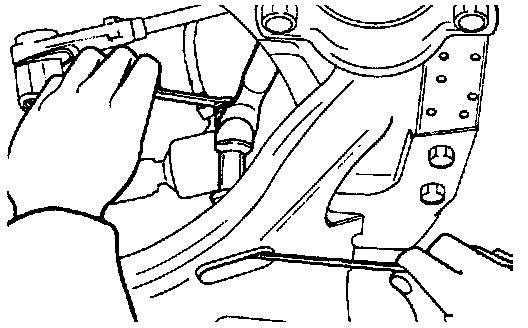

2. Remove the stabilizer link mounting self-locking nut, and detach the stabilizer bar from the lower arm.





3. Remove the lower arm mounting nut and bolt.

BALL JOINT AND DUST COVER REPLACEMENT





1. Using a screwdriver, remove the dust cover from the lower arm ball joint.
2. Remove the snap ring.

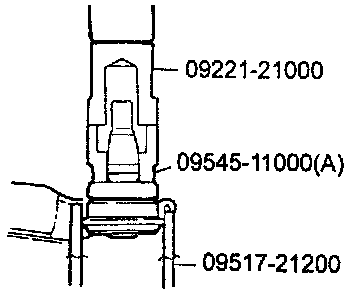

3. Using the special tools, remove the ball joint from the lower arm assembly.

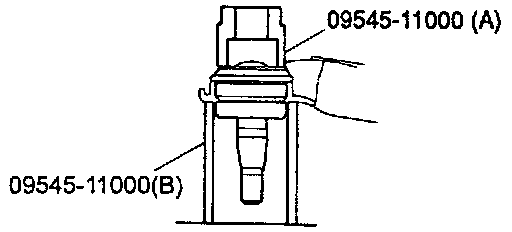

4. Press fit the ball joint into the lower arm assembly.

INSTALLATION

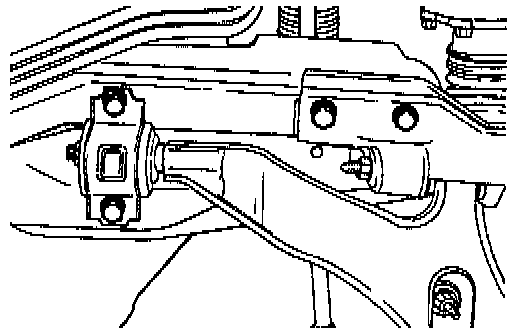

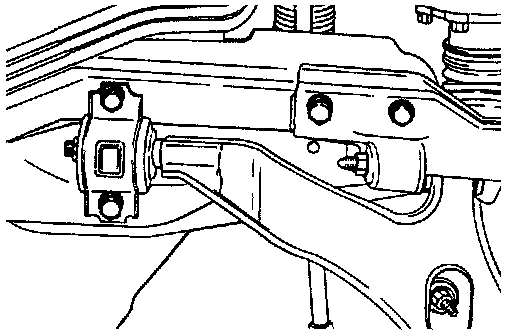

1. Install the lower arm mounting bolt and nut.

Tightening Torque:
Lower Arm Mounting Bracket to Lower Arm: 95-120 Nm (69-87 ft. lbs.)
Lower Arm Mounting Bolt: 60-80 Nm (43-58 ft. lbs.).





2. Tighten the stabilizer link with a spanner wrench (14 mm or 9/16 inch), then install the self locking nut.
