Stabilizer Bar: Service and Repair

DISASSEMBLY

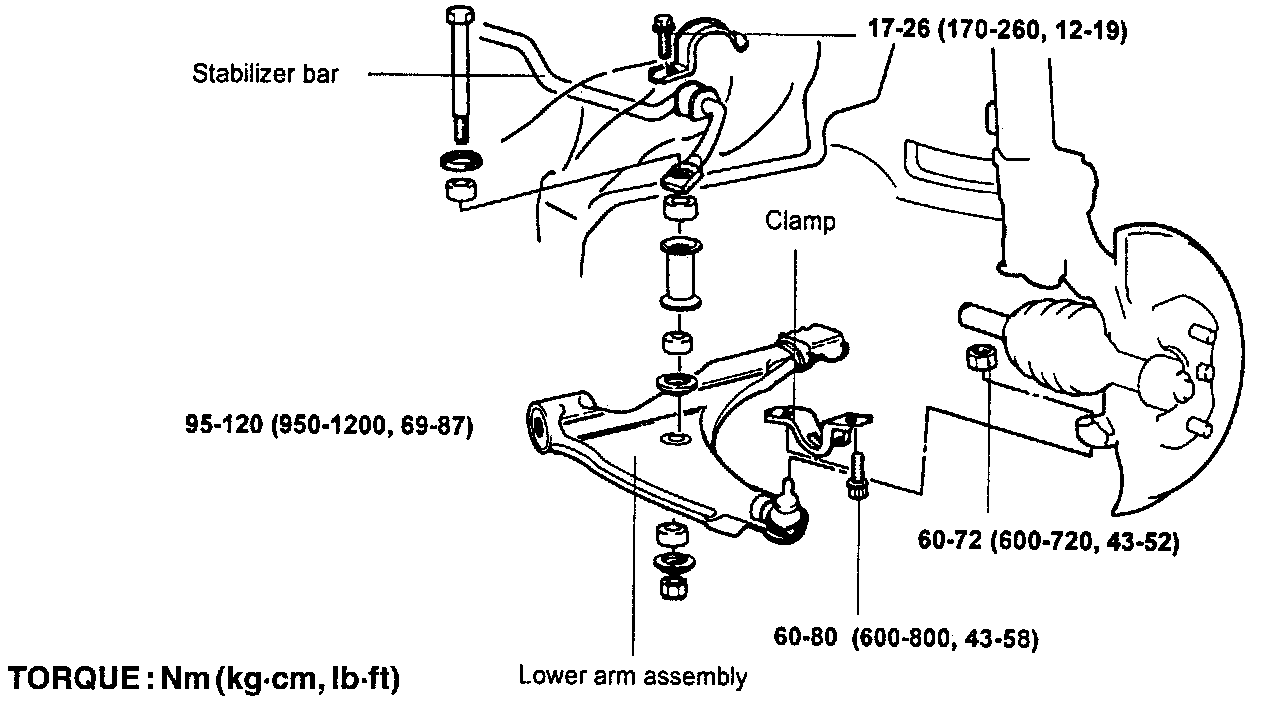

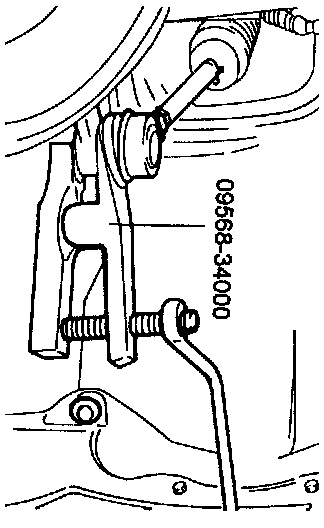

1. Disconnect the tie rod end ball joint from the knuckle using special tool.

NOTE: Be sure to tie a cord to the special tool and to a nearby part.





2. Remove the stabilizer link self locking nut with a spanner wrench (14 mm or 9/16 inch).





3. Remove the stabilizer bar through the access opening.

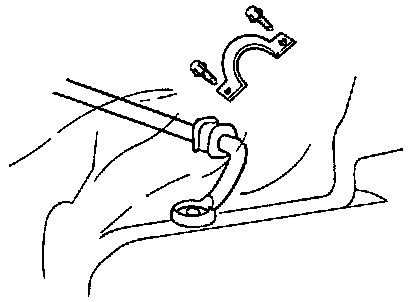

4. Detach the upper bracket then remove the bushing.

INSPECTION
1. Check the stabilizer bar for deterioration and damage.
2. Check all bolts for condition and straightness.

ASSEMBLY
1. Install the bushing onto the stabilizer bar.

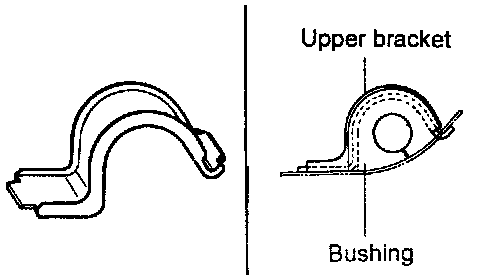

2. Align the upper bracket with the bushing. Make sure the projections are secured in the space of the bracket.





3. Using the access opening, temporarily tighten the bushing fixtures then position the opposite bushing.





4. Secure the stabilizer link with a spanner wrench (14 mm or 9/16 inch) then install the self locking nut.





5. Tighten the self-locking nut on the stabilizer link to the specified distance.

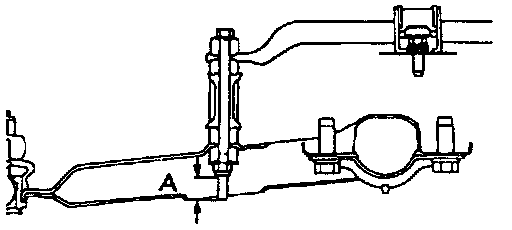

Standard value (A): 28-30 mm (1.10-1.18 inch).

6. Connect the tie rod end ball joint to the knuckle.
