Connectors M
>>
M01
M01

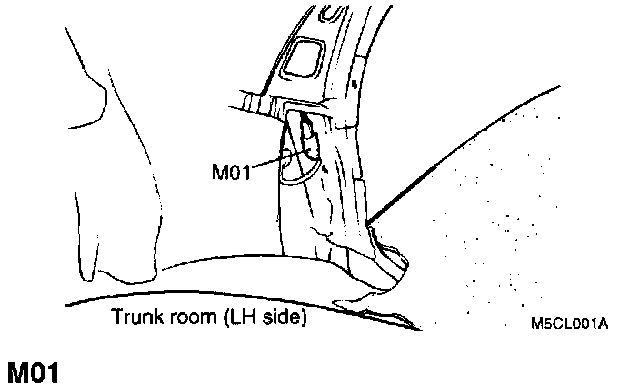

M01 Left Rear Wheel Sensor:

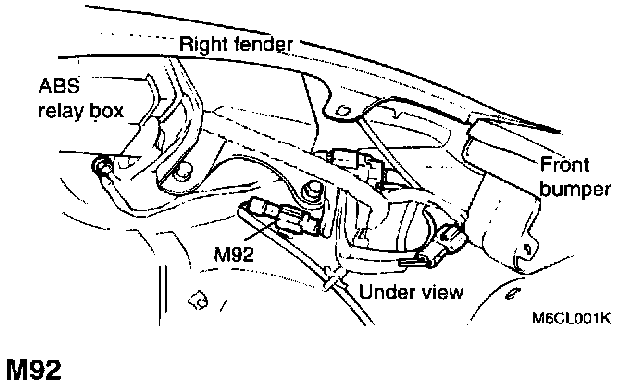

M92 Right Front Wheel Sensor:

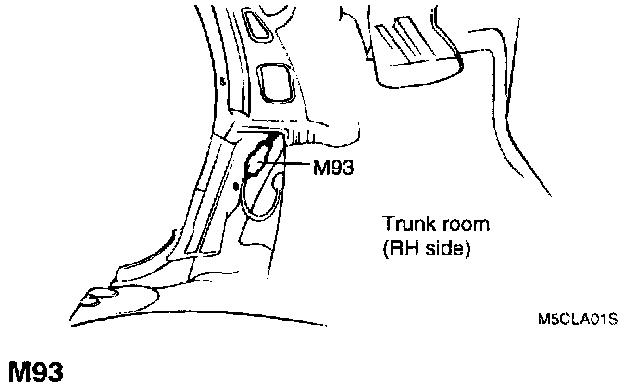

M93 Right Rear Wheel Sensor:

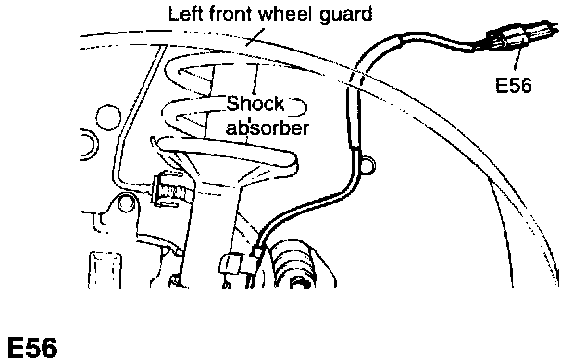

E56 Left Front Wheel Sensor:
