Fuse Block

Dash Fuse Box Details (Part 1 Of 7):

Part 1 Of 7
A/C Switch
A/T Shift Lever
Dash Fuse Box
Hazard Switch
Ignition Key Lock Solenoid
Left Front Door Lock Actuator
Rear Glass Defogger Relay
Stop Lamp Switch

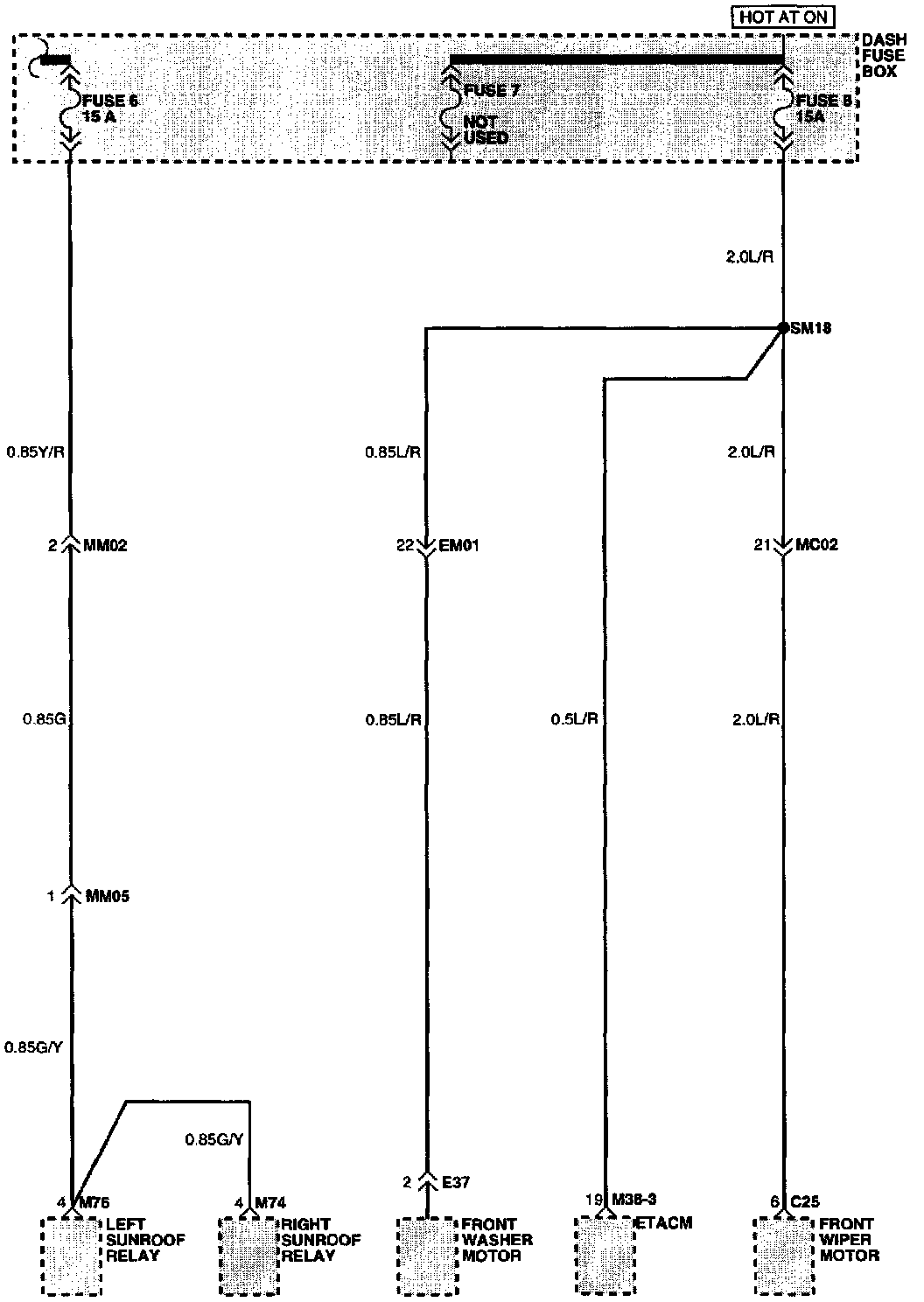

Dash Fuse Box Details (Part 2 Of 7):

Part 2 Of 7
Dash Fuse Box
ETACM
Front Washer Motor
Front Wiper Motor
Left Sunroof Relay
Right Sunroof Relay

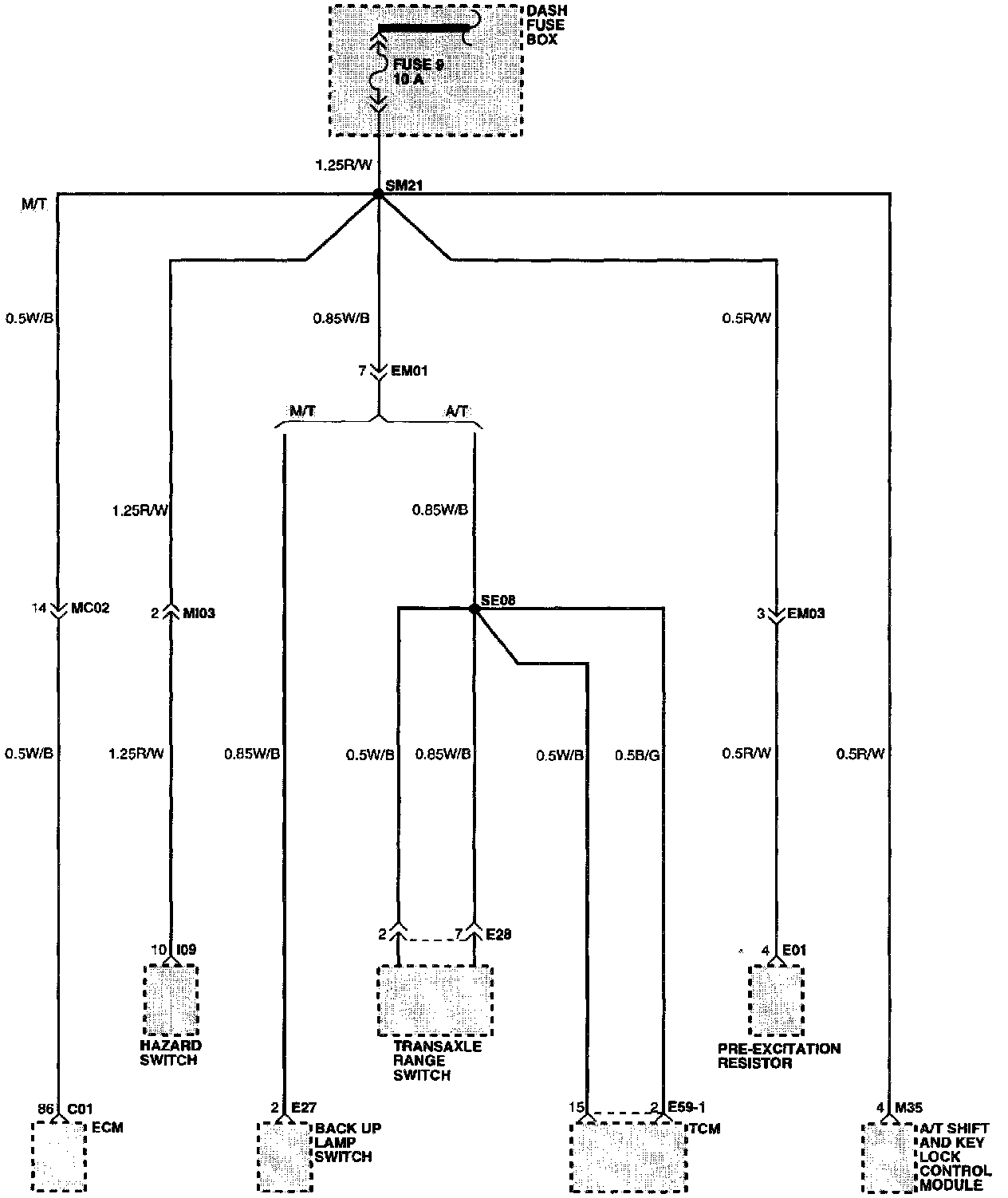

Dash Fuse Box Details (Part 3 Of 7):

Part 3 Of 7
A/T Shift and Key Lock Control Module
Back-Up Lamp Switch
Dash Fuse Box
ECM
Hazard Switch
Pre-Excitation Resistor
Transaxle Range Switch
TCM

Dash Fuse Box Details (Part 4 Of 7):

Part 4 Of 7
ABS Relay Box
ABS Control Module
Dash Fuse Box
ETACM
Instrument Cluster
SRS Control Module

Dash Fuse Box Details (Part 5 Of 7):

Part 5 Of 7
A/T Shift and Key Lock Control Module
Audio
Cigarette Lighter
Dash Fuse Box
Instrument Cluster
Power Door Mirror Switch

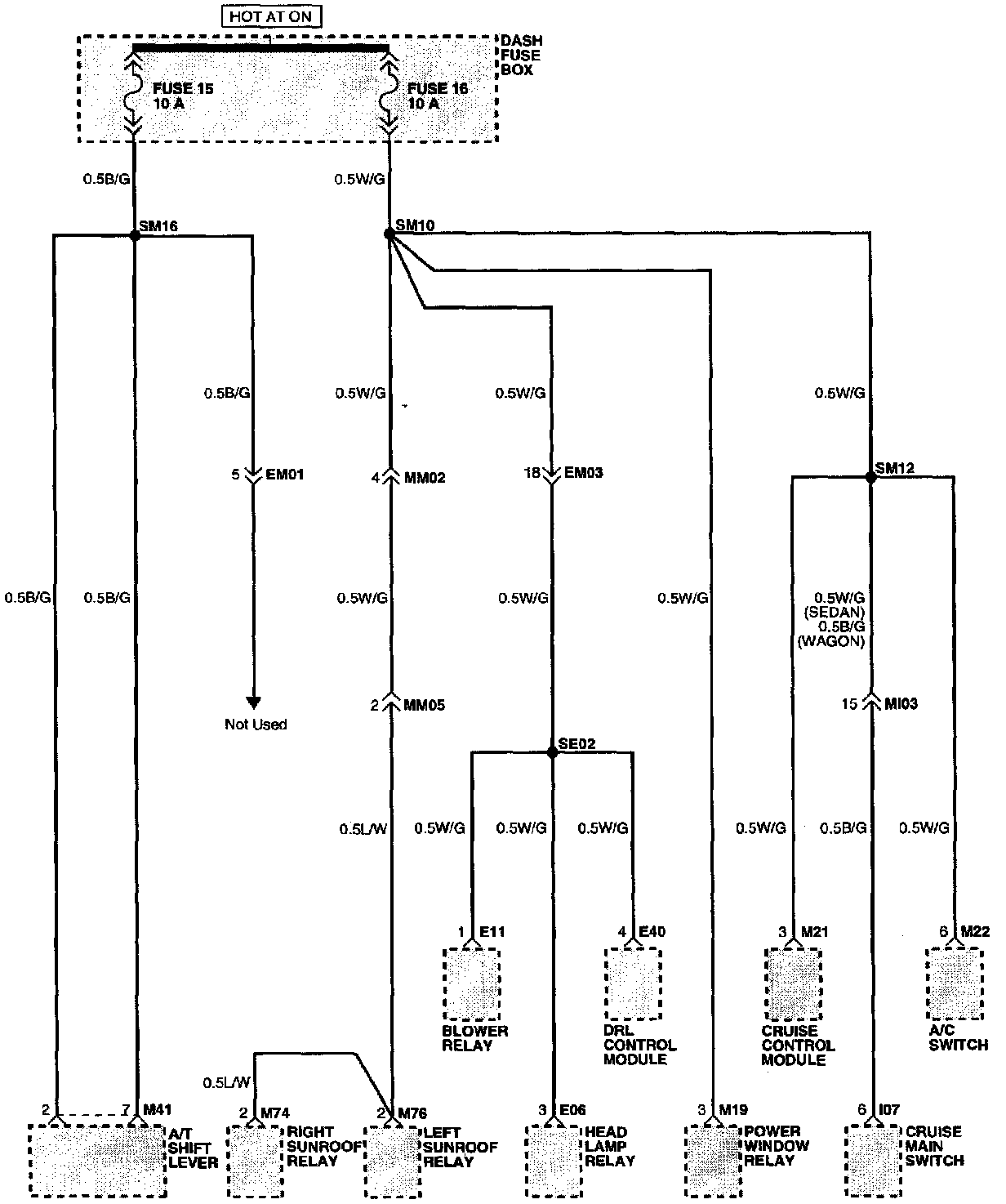

Dash Fuse Box Details (Part 6 Of 7):

Part 6 Of 7
A/C Switch
A/T Shift Lever
Blower Relay
Cruise Control Module
Cruise Main Switch
Dash Fuse Box
DRL Control Module
Headlamp Relay
Left Sunroof Relay
Power Window Relay
Right Sunroof Relay

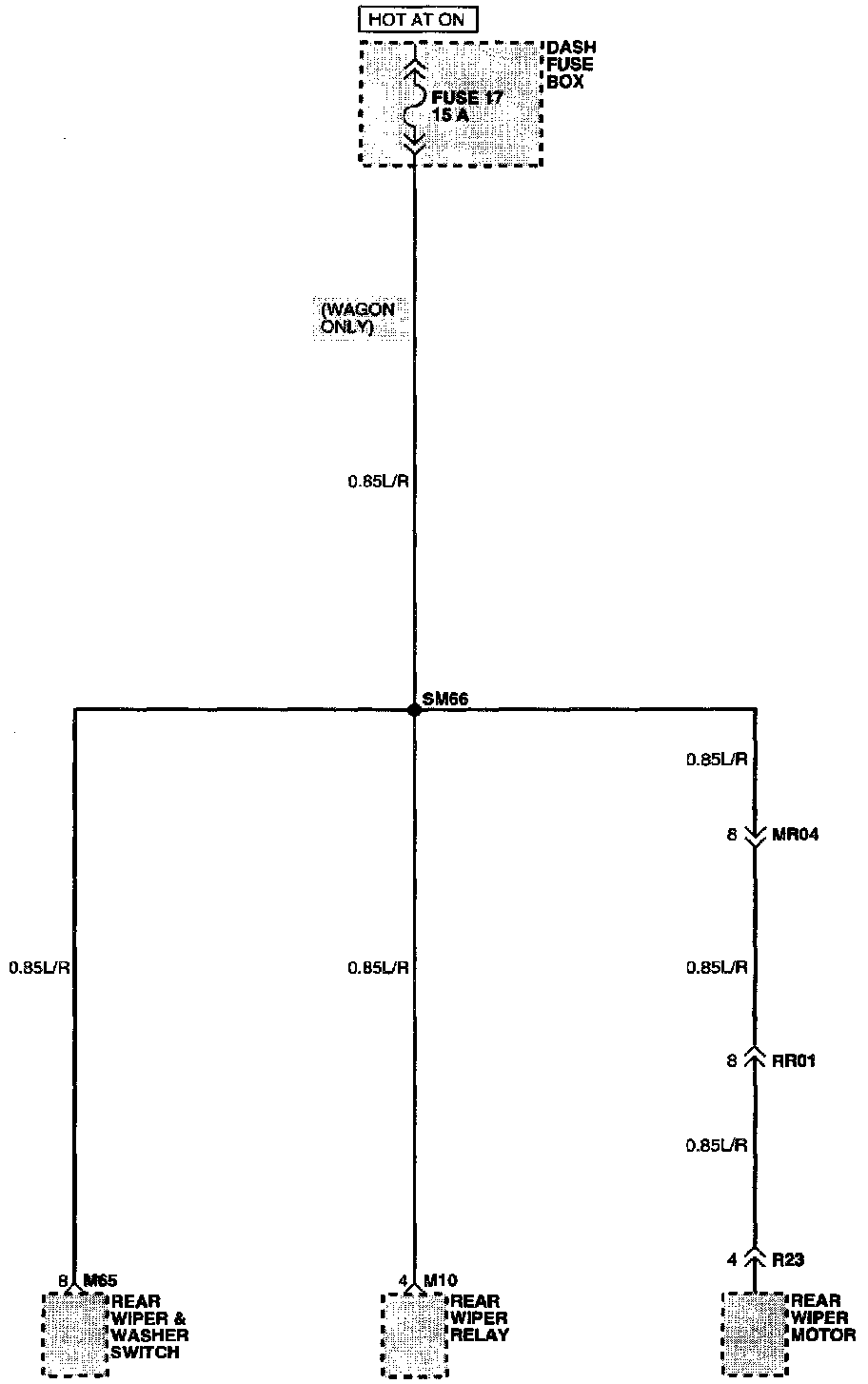

Dash Fuse Box Details (Part 7 Of 7):

Part 7 Of 7
Dash Fuse Box
Rear Wiper Motor
Rear Wiper Relay
Rear Wiper & Washer Switch


Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of The Fuse Block.
Locations
