Compressor Clutch Relay: Testing and Inspection

1. Remove the battery ground cable.

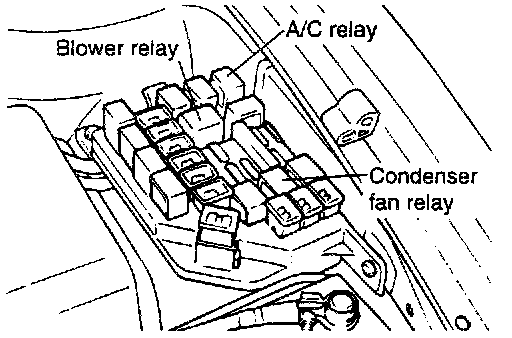

2. Remove the cover of [1][2]relay box located in engine compartment.
3. Remove the relays from [1][2]relay box.
4. Check for continuity or voltage between the terminals.

AIR CONDITIONING RELAY-check for continuity







If continuity is not as specified, replace the relay.
