Illumination

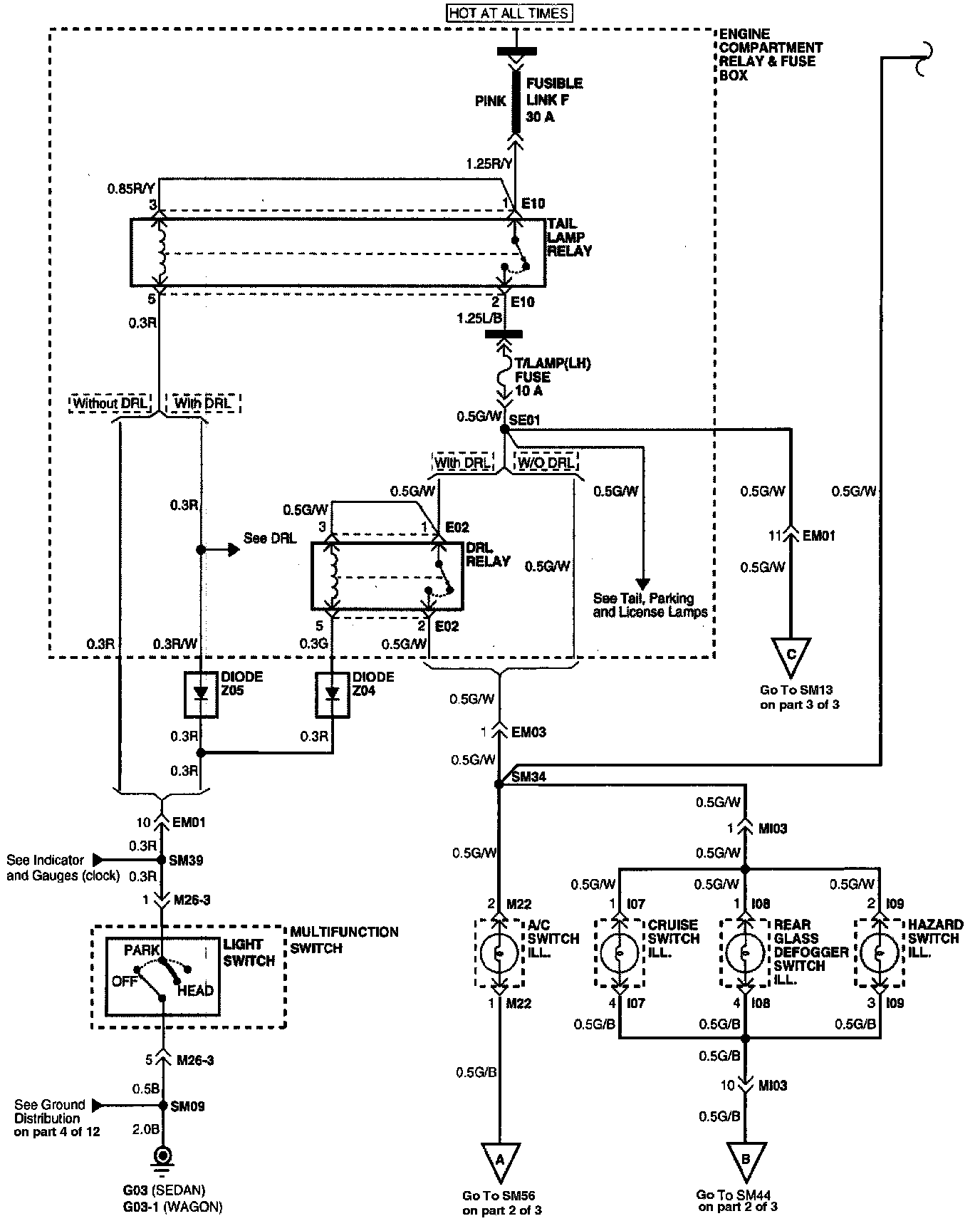

Illumination (Part 1 Of 3):

Part 1 of 3
A/C Switch Illumination
Cruise Switch Illumination
Diode
Engine Compartment Relay and Fuse Box
Hazard Switch Illumination
Multi-Function Switch
Rear Glass Defogger Switch Illumination

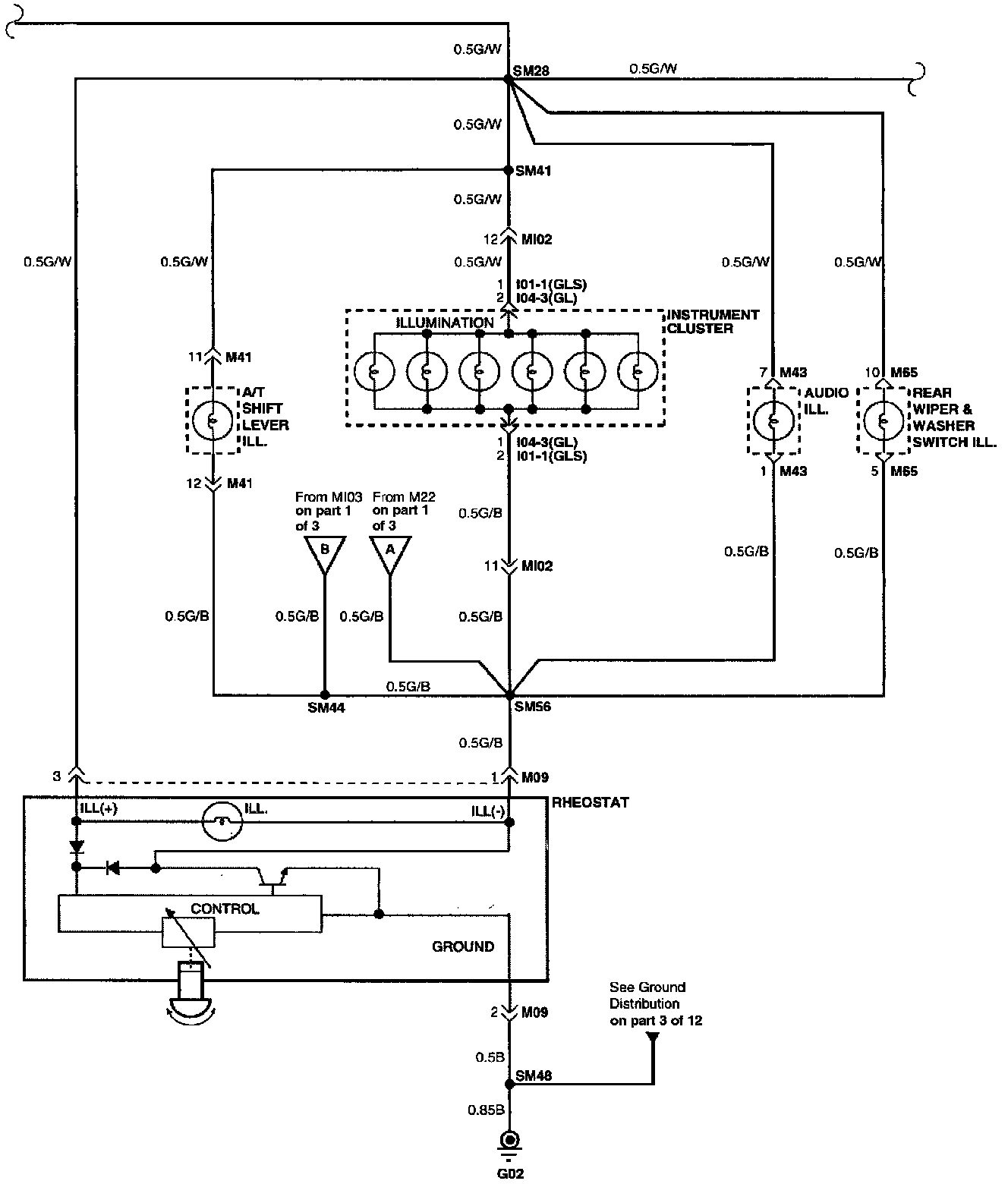

Illumination (Part 2 Of 3):

Part 2 of 3
A/T Shift Lever Illumination
Audio Illumination
Instrument Cluster
Rear Wiper & Washer Switch Illumination
Rheostat

Illumination (Part 3 Of 3):

Part 3 of 3
Cigarette Lighter Illumination
Left Front Window Main Switch
Left Rear Window Switch
Right Front Window Switch
Right Rear Window Switch

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of The Illuminations System.
Locations
