Power Distribution

Power Distribution (Part 1 Of 5):

Part 1 Of 5
ABS Relay Box
Battery
Dash Fuse Box
Engine Compartment Relay And Fuse Box
Generator

Power Distribution (Part 2 Of 5):

Part 2 Of 5
ABS Relay Box
Dash Fuse Box
Engine Compartment Relay And Fuse Box
Engine Control Relay
Fuel Pump Relay
Generator
Power Window Relay

Power Distribution (Part 3 Of 5):

Part 3 Of 5
Diode
DRL Control Module
Engine Compartment Relay And Fuse Box
Instrument Cluster
Left Front Park/Turn Signal Lamp
Left Headlamp
Left Rear Combination Lamp
Multi-function Switch
Right Front Park/Turn Signal Lamp
Right Headlamp
Right Rear Combination Lamp

Power Distribution (Part 4 Of 5):

Part 4 Of 5
Audio
Data Link Connector
Door Warning Switch
Engine Control Module
Instrument Cluster
Luggage Room Lamp
MAP Lamps
Overhead Console Lamps
Room Lamp
Transmission Control Module
Trunk Lamp

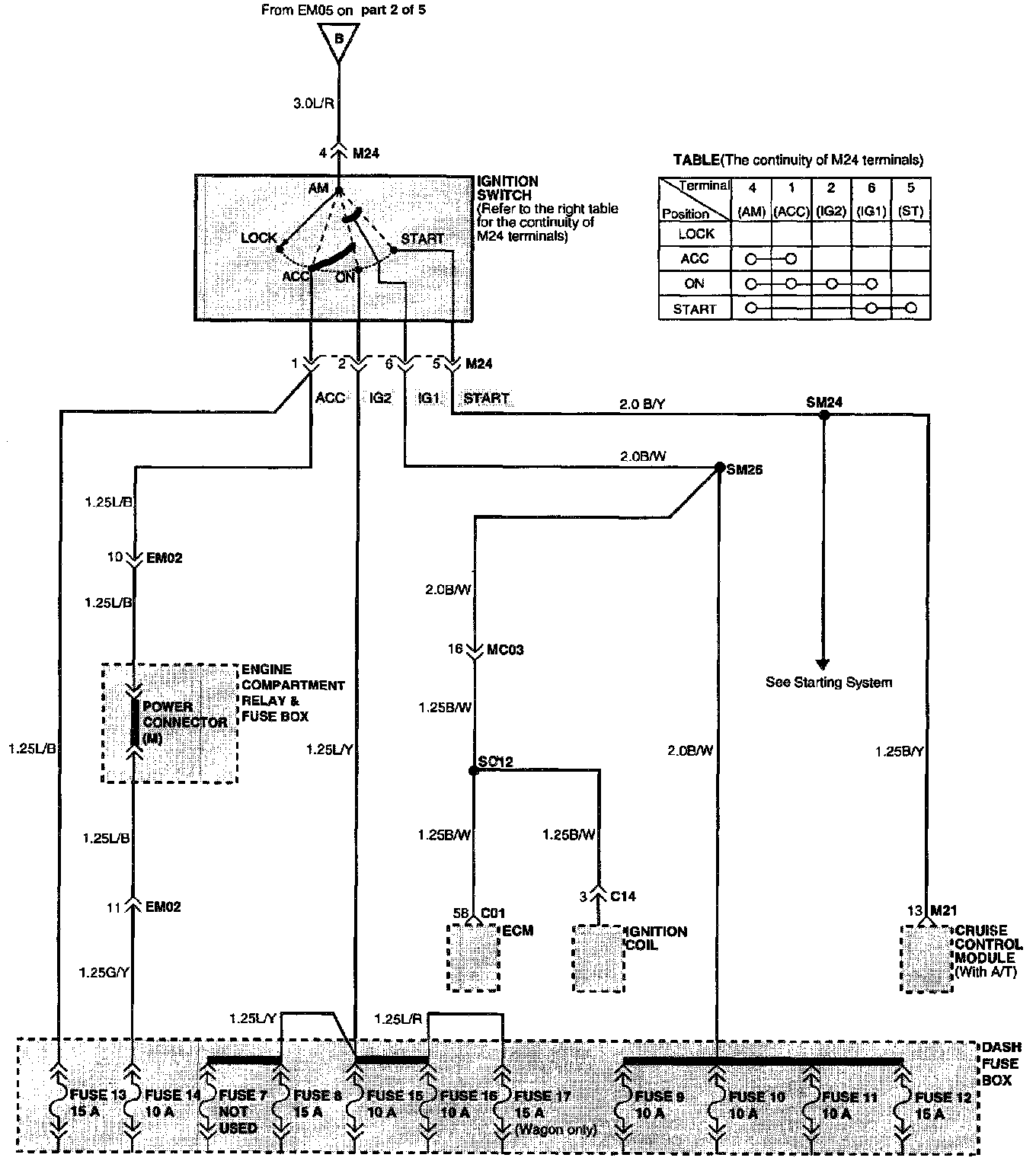

Power Distribution (Part 5 Of 5):

Part 5 Of 5
Cruise Control Module
Dash Fuse Box
Engine Compartment Relay And Fuse Box
Engine Control Module
Ignition Coil
Ignition Switch


Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of Power And Ground Distribution.
Locations
