Evaporative Emissions System: Testing and Inspection

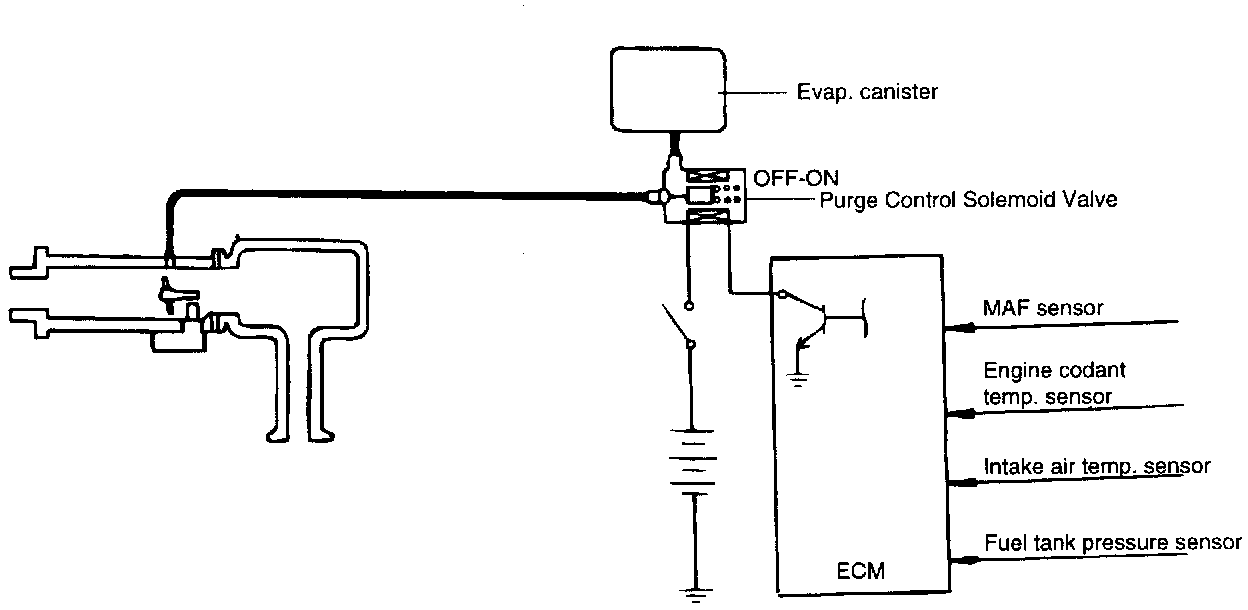

EVAPORATIVE CANISTER PURGE SOLENOID VALVE




PURGE SYSTEM INSPECTION

NOTE: When disconnecting the vacuum hose, make a mark on it so that it can be reconnected to its original position.

1. Disconnect the vacuum hose from the solenoid valve.
2. Detach the harness connector.




3. Connect a vacuum pump to the nipple to which the red striped vacuum hose was connected.




4. Apply vacuum and check when voltage is applied to the evaporative emission canister purge solenoid valve and when the voltage is discontinued.
- With battery voltage applied vacuum is released.
- With no voltage applied vacuum is maintained




5. Measure the resistance between the terminals of the solenoid valve.

EVAP Canister Purge Solenoid Valve Coil resistance: 26 Ohms @ 20° C (68° F)

Vacuum Hose
With engine coolant temperature @ 80-95° C (176-205° F)




1. Disconnect the vacuum hose from the intake manifold purge hose nipple and connect a hand vacuum pump to the nipple.

Purge Port Vacuum Curve:

2. Start the engine and check that, after raising the engine speed, that vacuum remains fairly constant.

NOTE: If there is no vacuum created, it is possible that the intake manifold port may be clogged and require cleaning.
