Brake Pedal Assy: Adjustments

1. Turn the stop lamp switch until the clearance between the stop lamp switch outer case and the pedal arm is within the standard value. and tighten the lock nut.
Clearance between pedal and stop lamp switch A:
0.5 to 1.0 mm (0.02 to 0.039 inch)





2. Brake pedal free play.
Brake pedal free play B:
3 - 8 mm (0.118 - 0.315 inch)





3. Start the engine, apply the brake pedal with approximately 50 kg (110 lbs) of force, and measure the clearance between the brake pedal and the floor board.

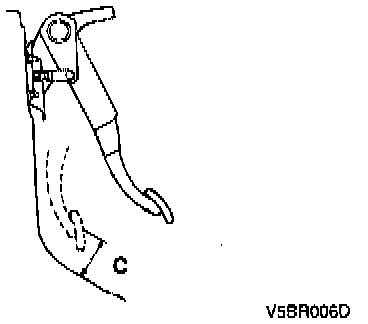

Pedal to floor board clearance C:
When pedal is depressed 50 kg (110 lbs.) force:
45.1 mm (1.776 inch)
