Antilock Brakes / Traction Control Systems

Anti-Lock Brake System:

Circuit Diagram

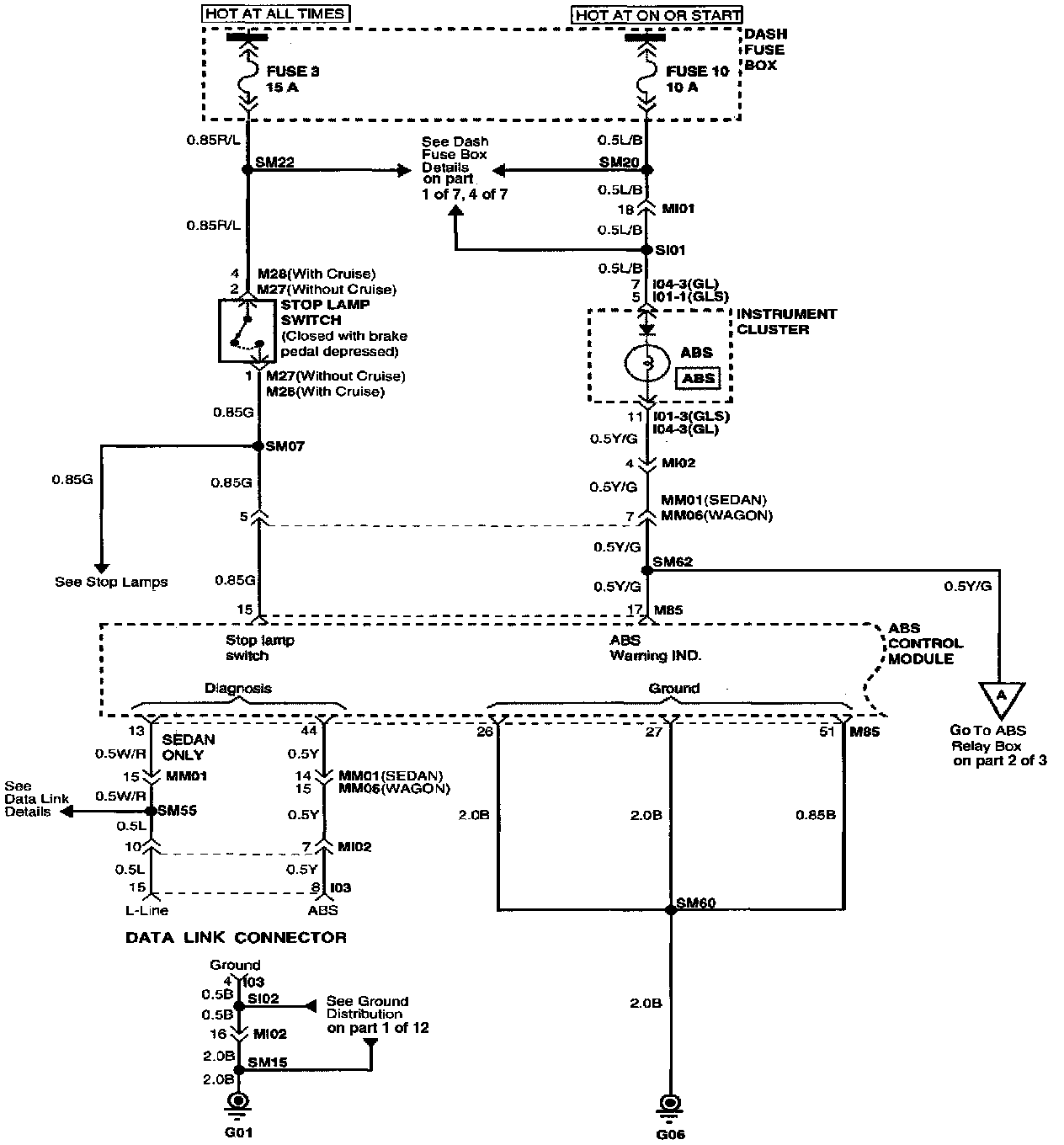

Anti-Lock Brake System (Part 1 Of 3):

Part 1 of 3
ABS Control Module
Dash Fuse Box
Data Link Connector
Instrument Cluster
Stop Lamp Switch

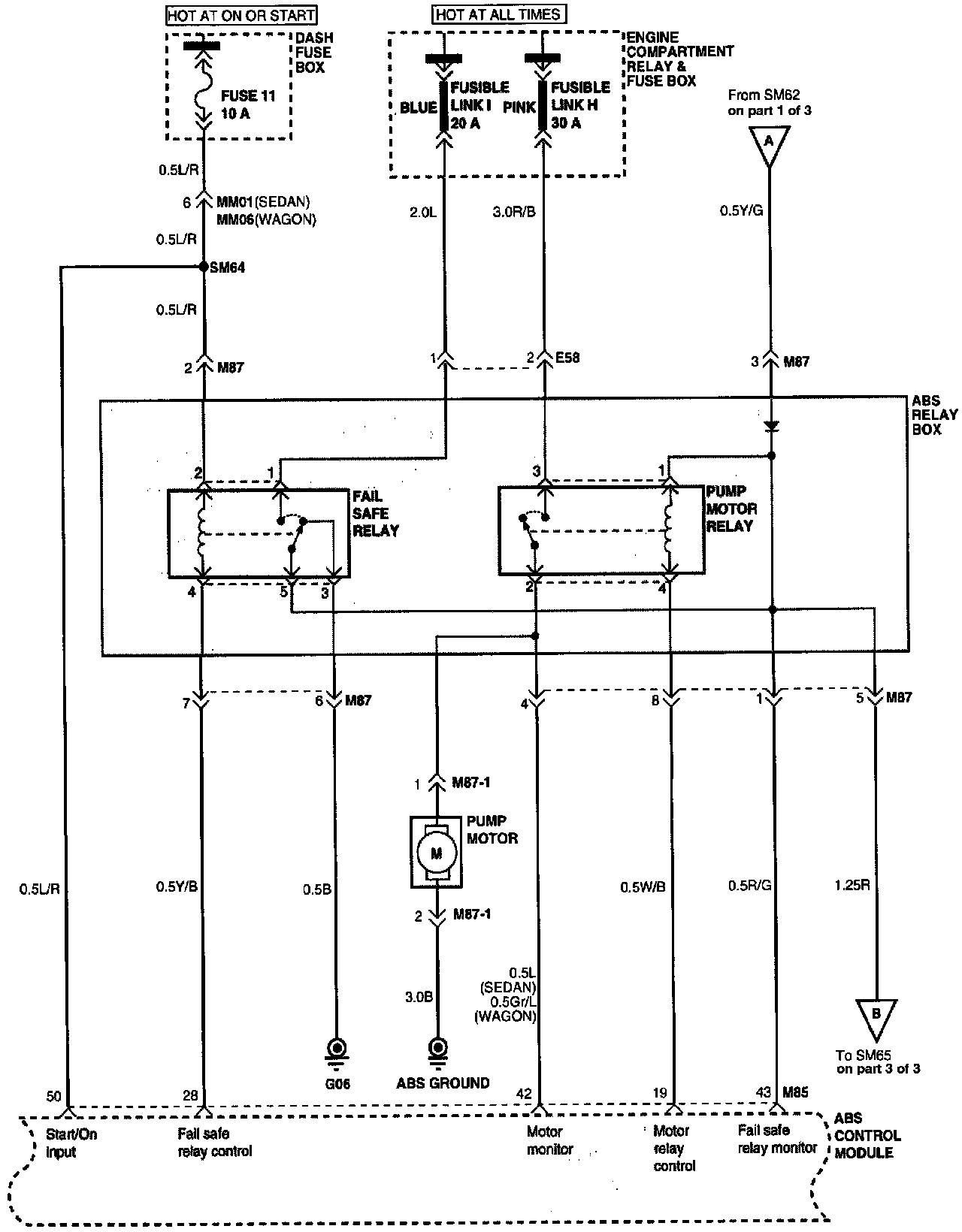

Anti-Lock Brake System (Part 2 Of 3):

Part 2 of 3
ABS Control Module
ABS Relay Box
Dash Fuse Box
Engine Compartment Relay and Fuse Box
Pump Motor

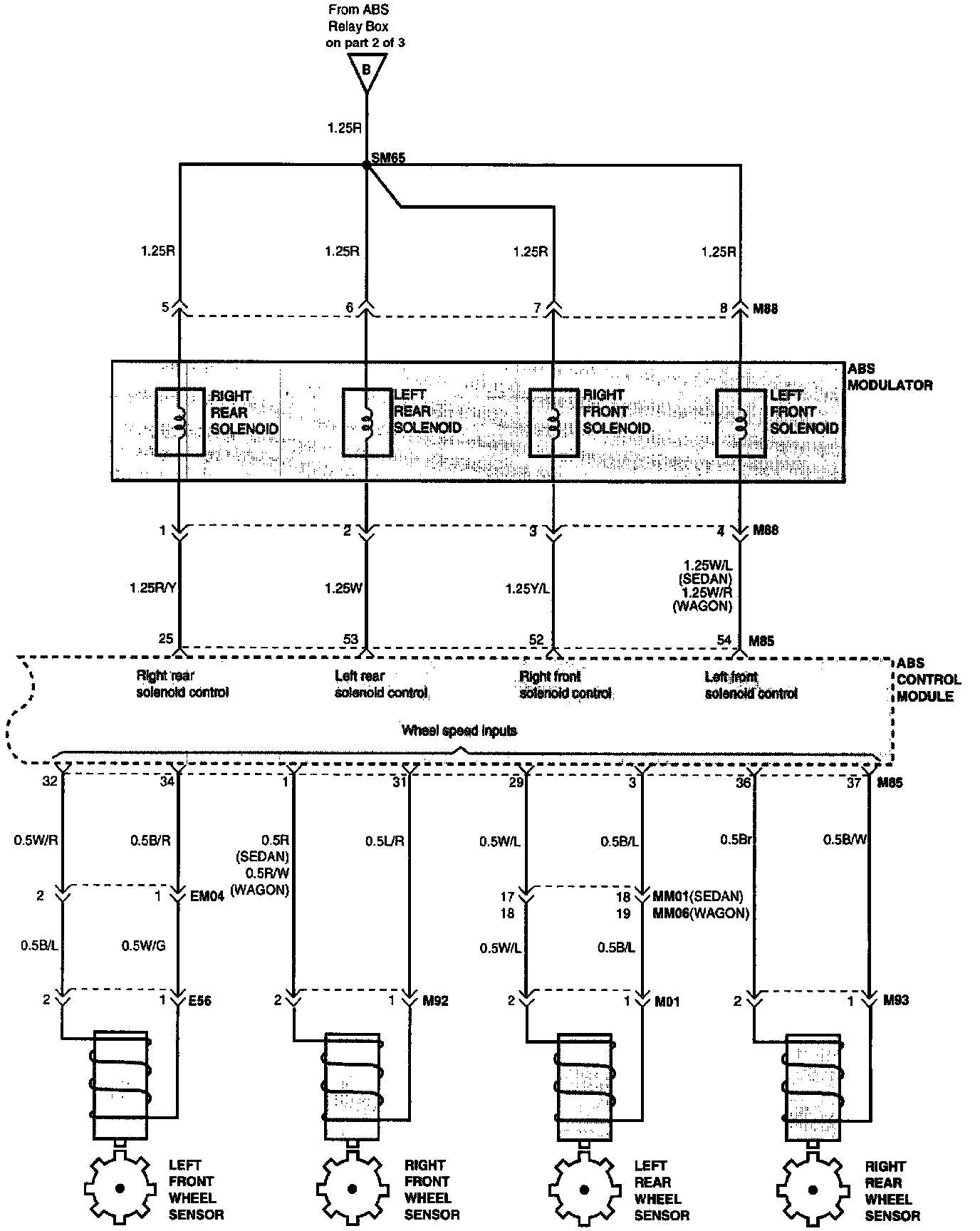

Anti-Lock Brake System (Part 3 Of 3):

Part 3 of 3
ABS Control Module
ABS Modulator
Left Front Wheel Sensor
Left Rear Wheel Sensor
Right Front Wheel Sensor
Right Rear Wheel Sensor

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of The Anti-Lock Brake System.
Locations
