Instrument Harness

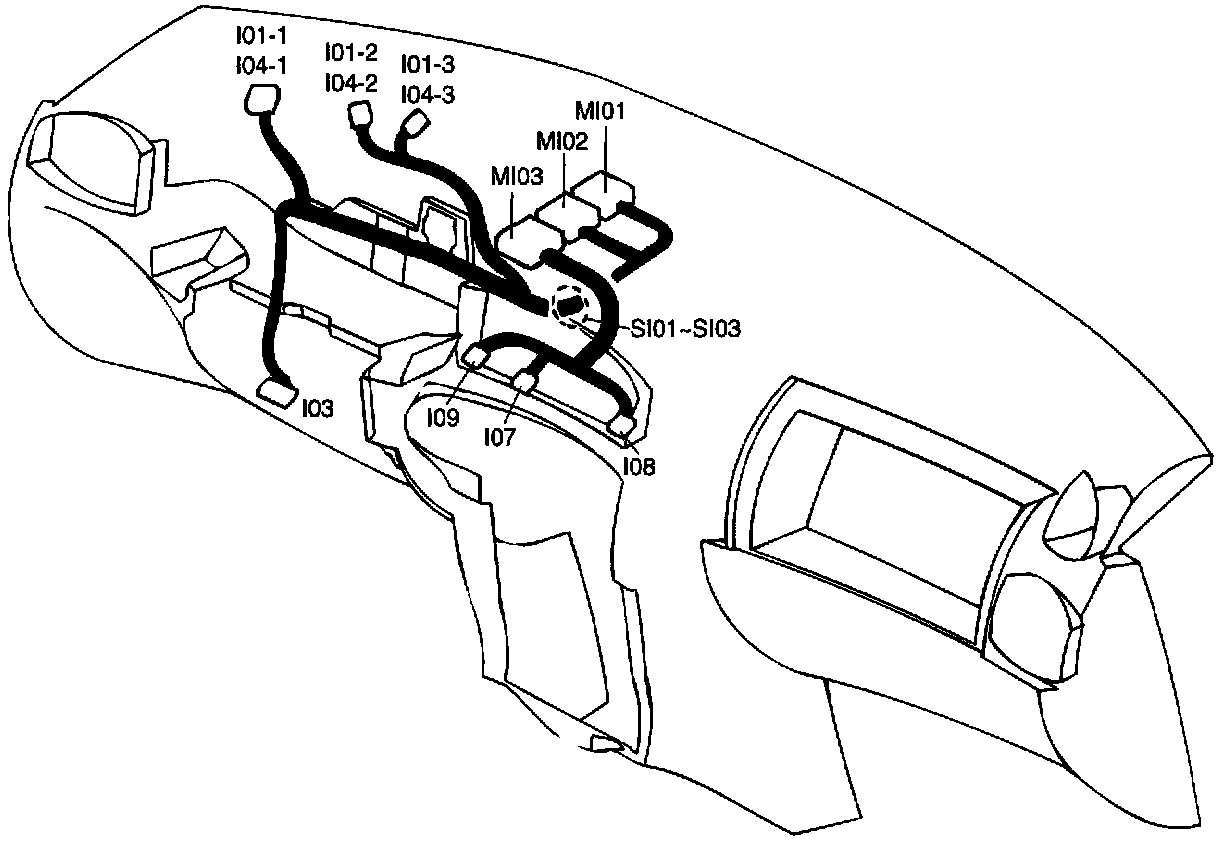

Harness Layout

I01-1 Instrument cluster (GLS)
I01-2 Instrument cluster (GLS)
I01-3 Instrument cluster (GLS)
I03 Data link connector
I04-1 Instrument cluster (GL)
I04-2 Instrument cluster (GL)
I04-3 Instrument cluster (GL)
I07 Cruise switch
I08 Rear glass defogger switch
I09 Hazard switch
MI01 Connection with MAIN harness
MI02 Connection with MAIN harness
MI03 Connection with MAIN harness
