Main Harness (ABS)

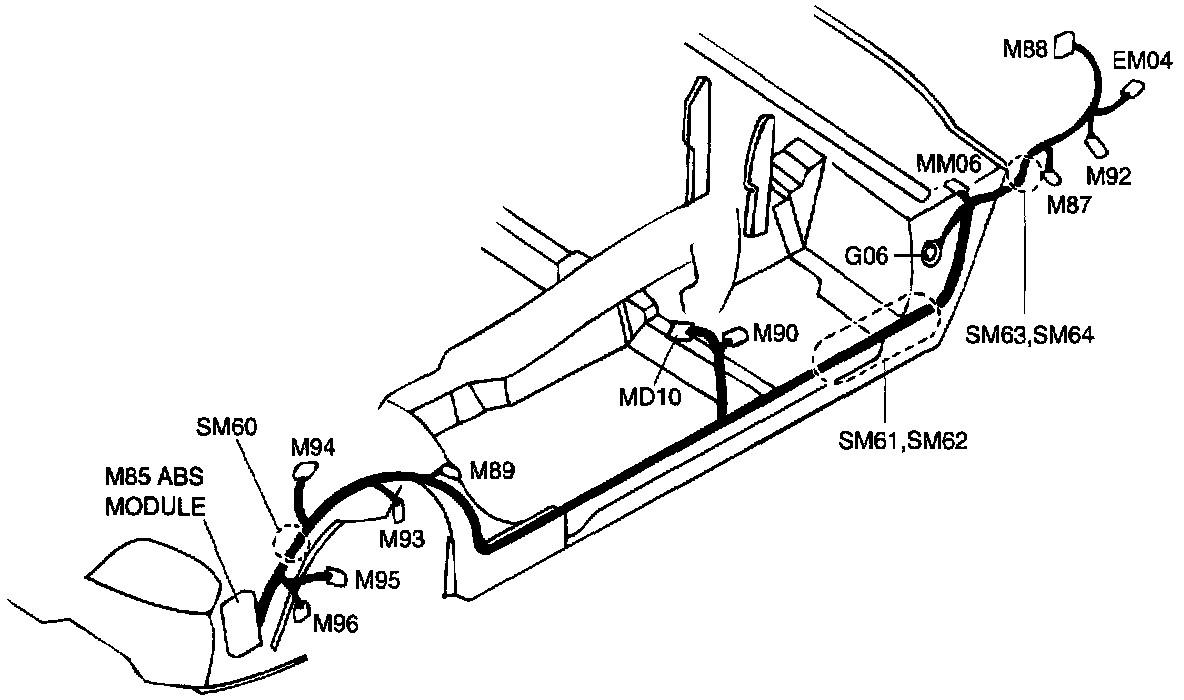

Harness Layout

M85 ABS control module
M87 ABS relay box
M88 ABS modulator
M89 Right rear door switch
M90 Right front door switch
M92 Right front wheel sensor
M93 Right rear wheel sensor
M94 Right rear speaker
M95 Right side marker
M96 Rear washer motor
EM04 Connection with ENGINE harness
MD10 Connection with RH REAR DOOR harness
MM06 Connection with MAIN harness
GROUND G06
