Trunk Room and Trunk Lid Harness

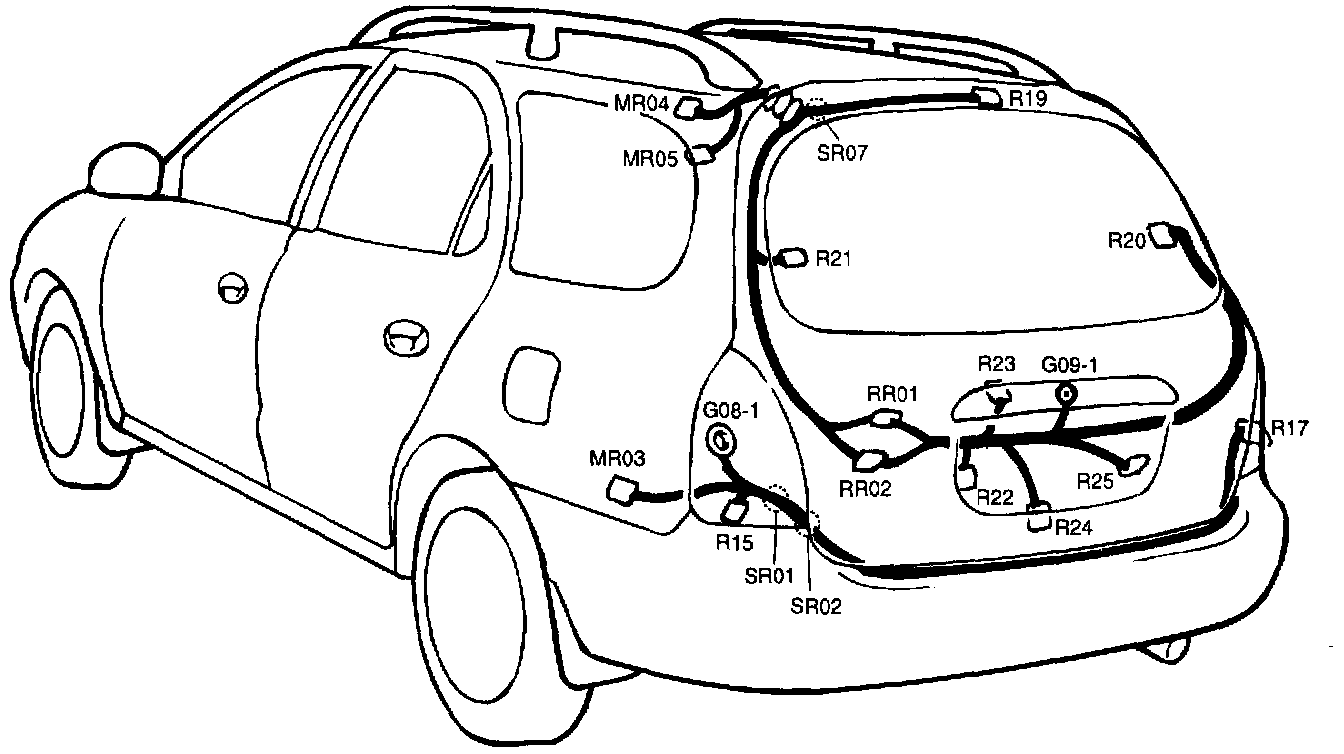

Harness Layout

R15 Left rear combination lamp
R17 Right rear combination lamp
R19 High mounted stop lamp
R20 Rear glass defogger (-)
R21 Rear glass defogger (+)
R22 Left license lamp
R23 Rear wiper motor
R24 Tail gate switch
R25 Right license lamp
MR03 Connection with MAIN harness
MR04 Connection with MAIN harness
MR05 Connection with MAIN harness
RR01 Connection with TAIL GATE EXT. harness
RR02 Connection with TAIL GATE EXT. harness
GROUND G08-1
GROUND G09-1
