Antilock Brakes / Traction Control Systems

4�O:

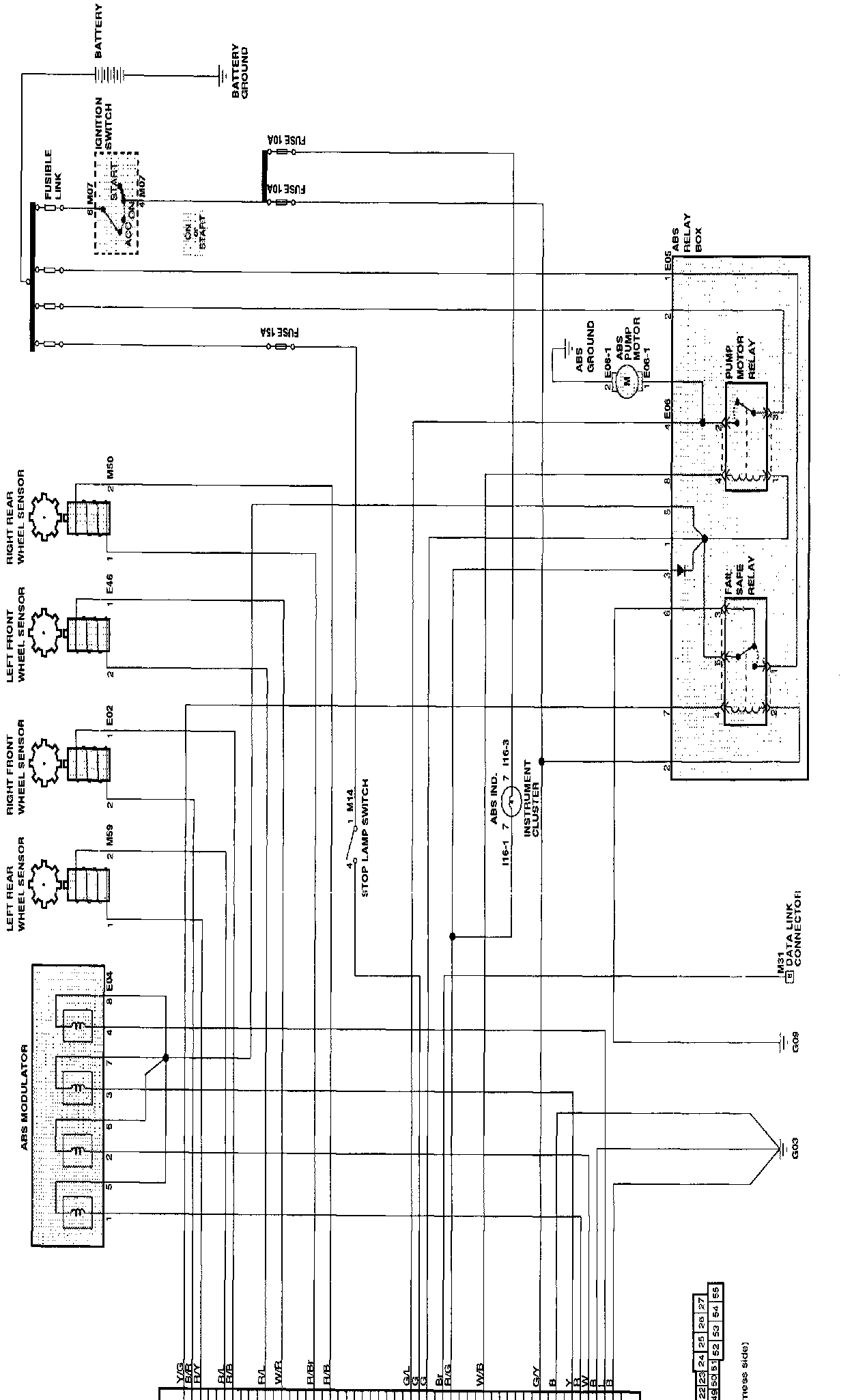

Circuit Diagram

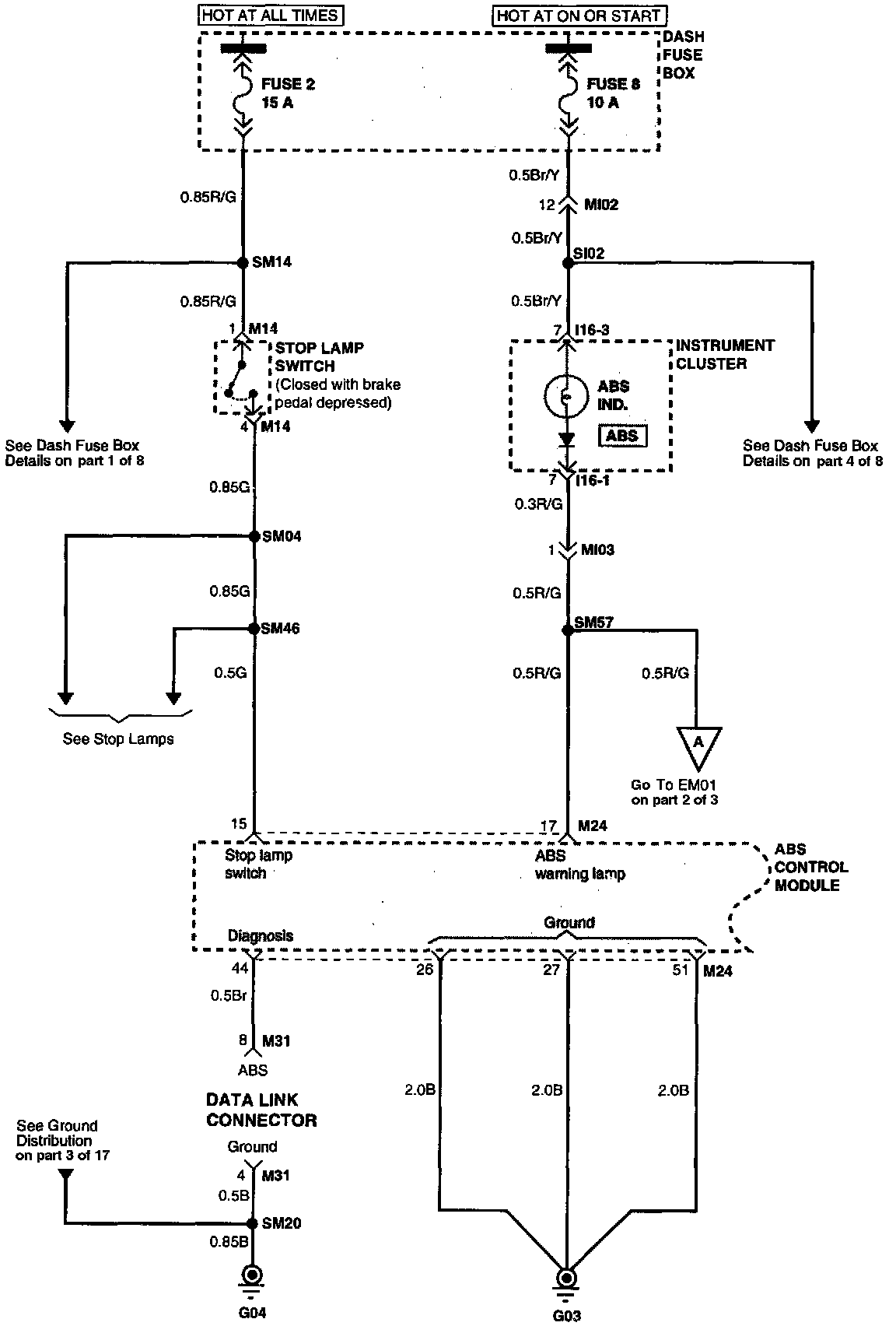

Anti-Lock Brake System (Part 1 Of 3):

(Part 1 Of 3)
ABS Control Module
Data Link Connector
Dash Fuse Box
Stop Lamp Switch
Instrument Cluster

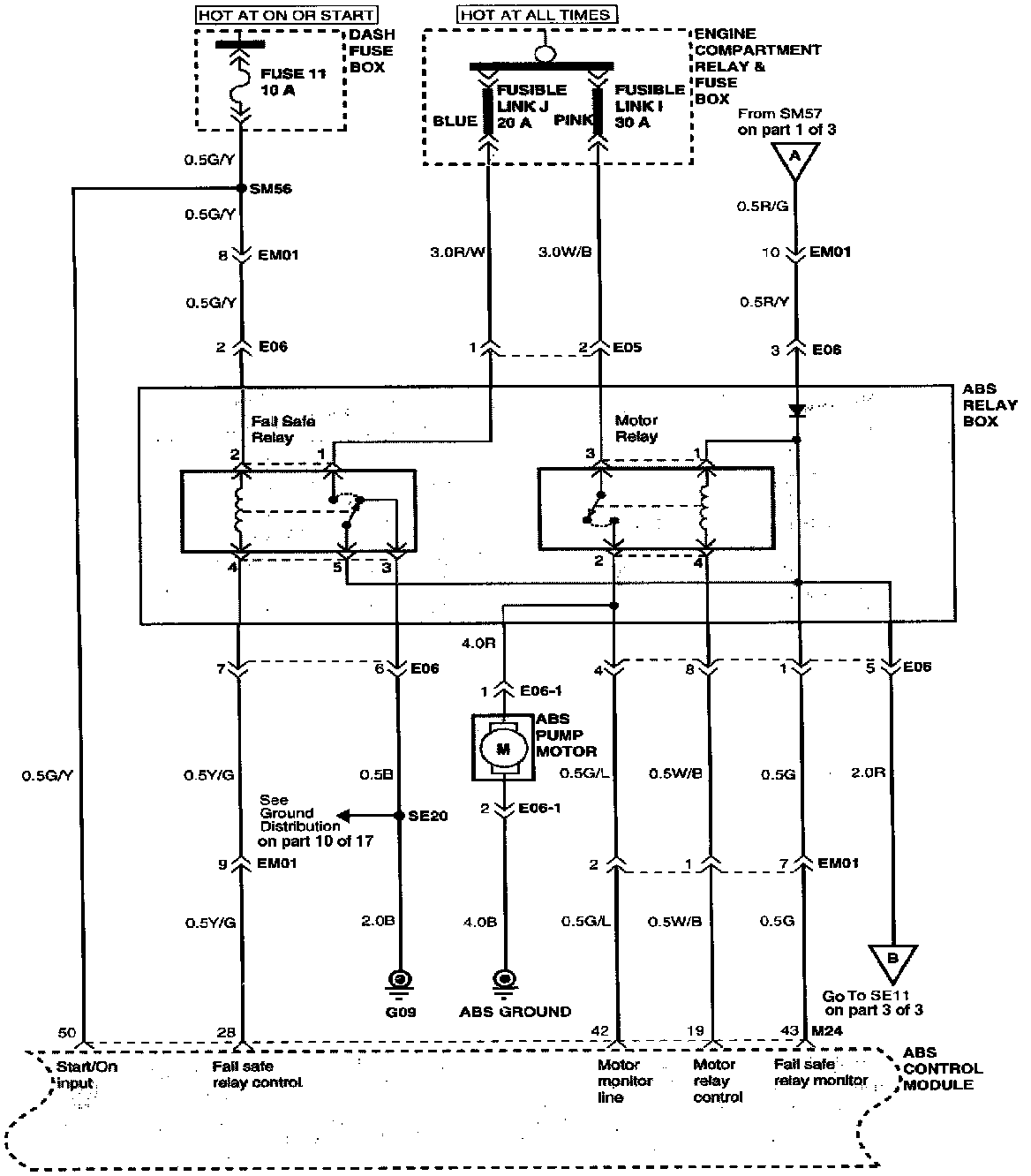

Anti-Lock Brake System (Part 2 Of 3):

(Part 2 Of 3)
ABS Relay Box
ABS Pump Motor
ABS Control Motor
Dash Fuse Box
Engine Compartment Relay And Fuse Box

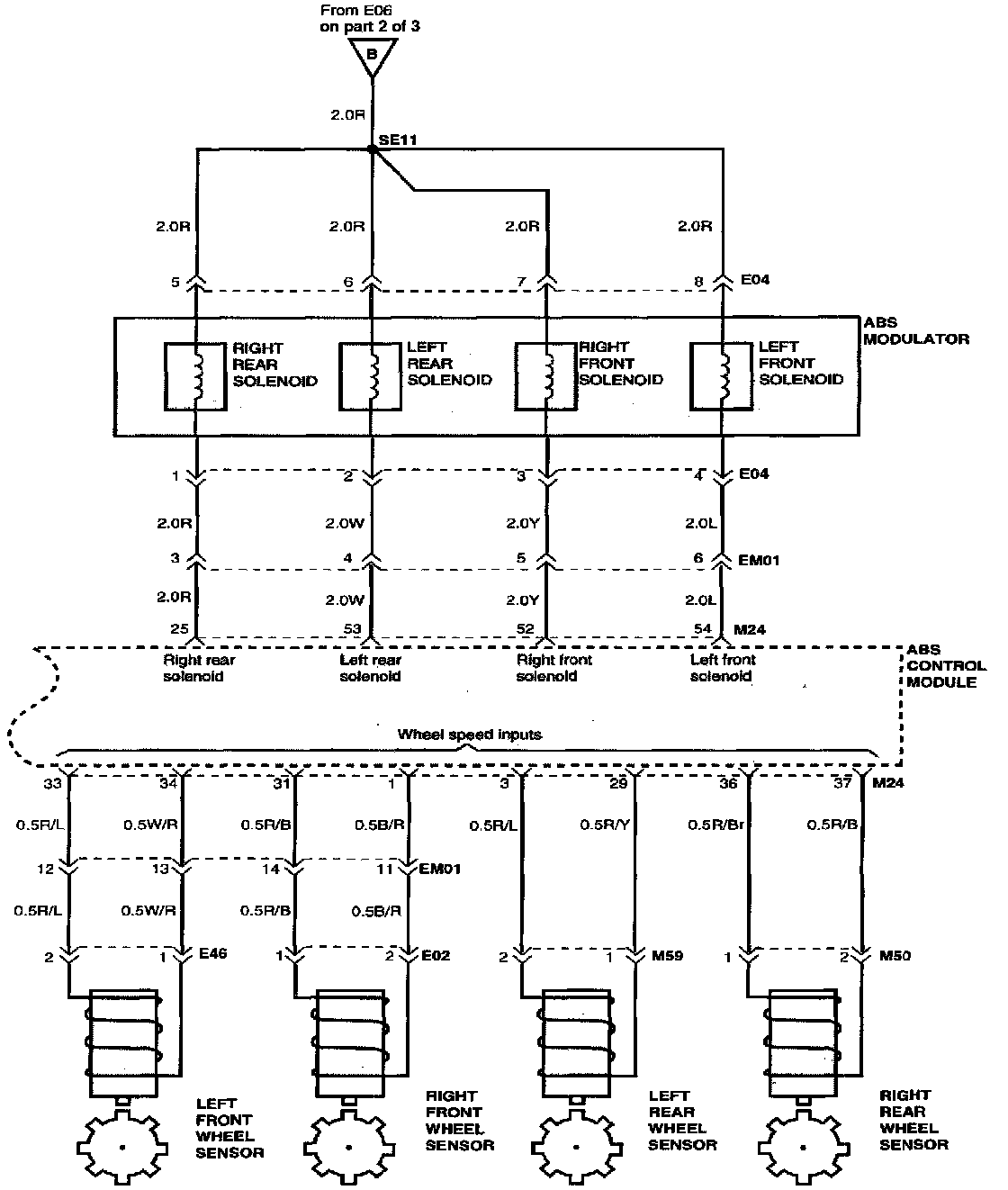

Anti-Lock Brake System (Part 3 Of 3):

(Part 3 Of 3)
ABS Modulator
ABS Control Module
Left Front Wheel Sensor
Left Rear Wheel Sensor
Right Front Wheel Sensor
Right Rear Wheel Sensor

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of The Anti-Lock Brake System.
Locations
