Canada

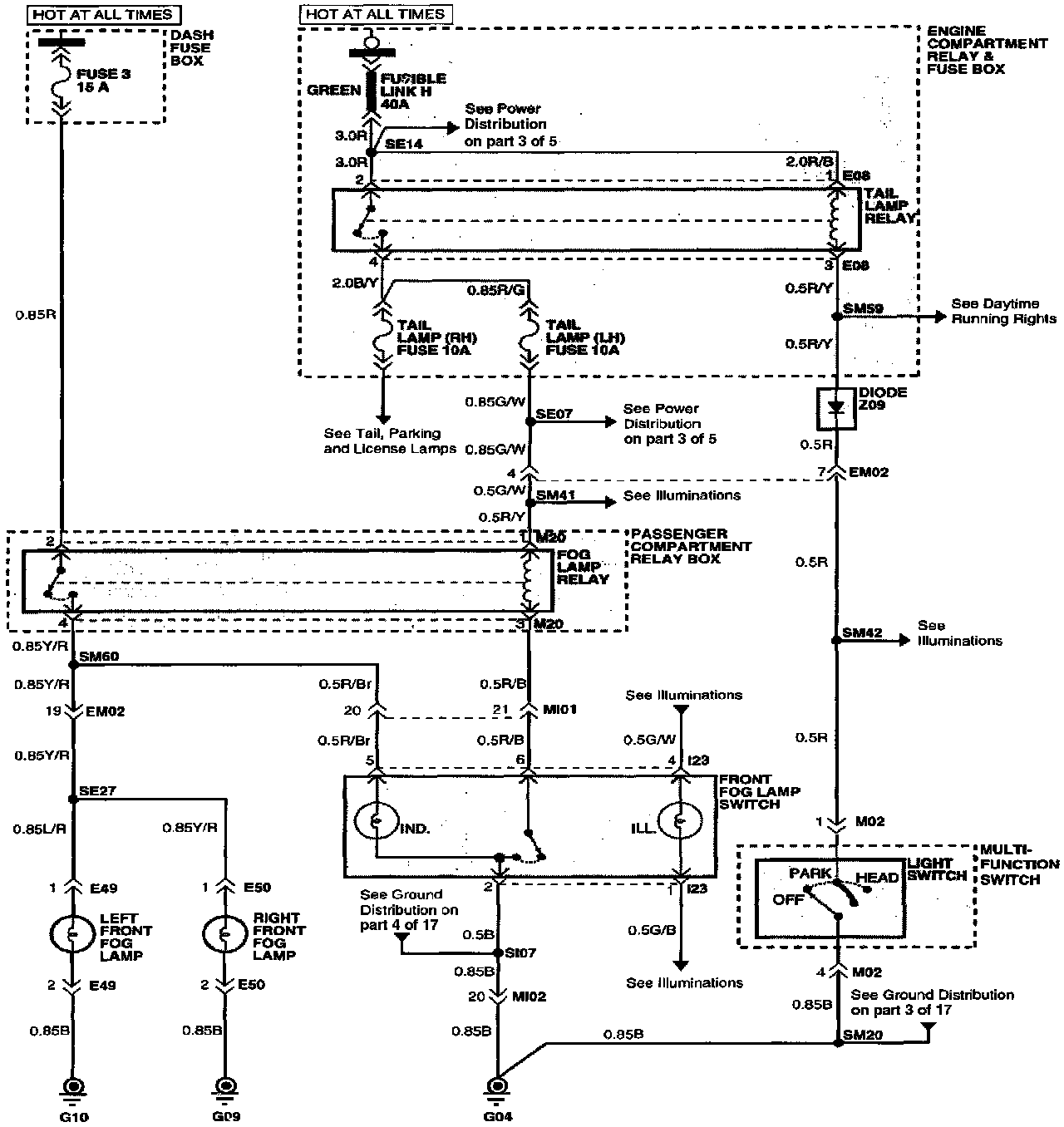

Front Fog Lamps (Canada):

Electrical Diagrams

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of The Fog Lamp.
Locations
