System Diagram

Connector Configurations Are Found In The Diagram Section Of The Vehicle.

Connector Locations Are Found In The Locations Section Of The Heating and Air Conditioning System.
Locations

Electrical Diagrams

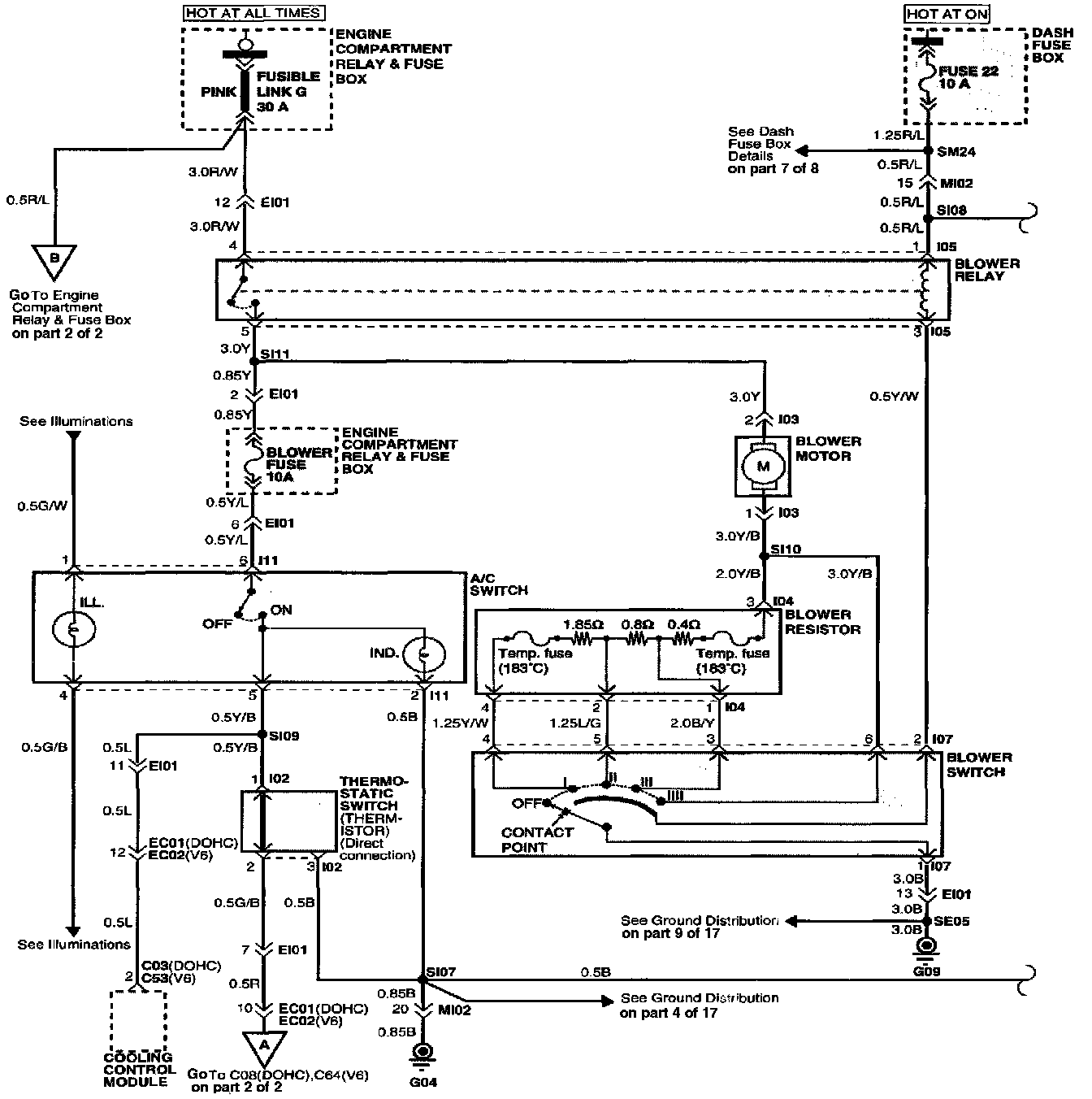

Blower And A/C Controls (Manual) (Part 1 Of 2):




Blower And A/C Controls (Manual) (Part 2 Of 2):

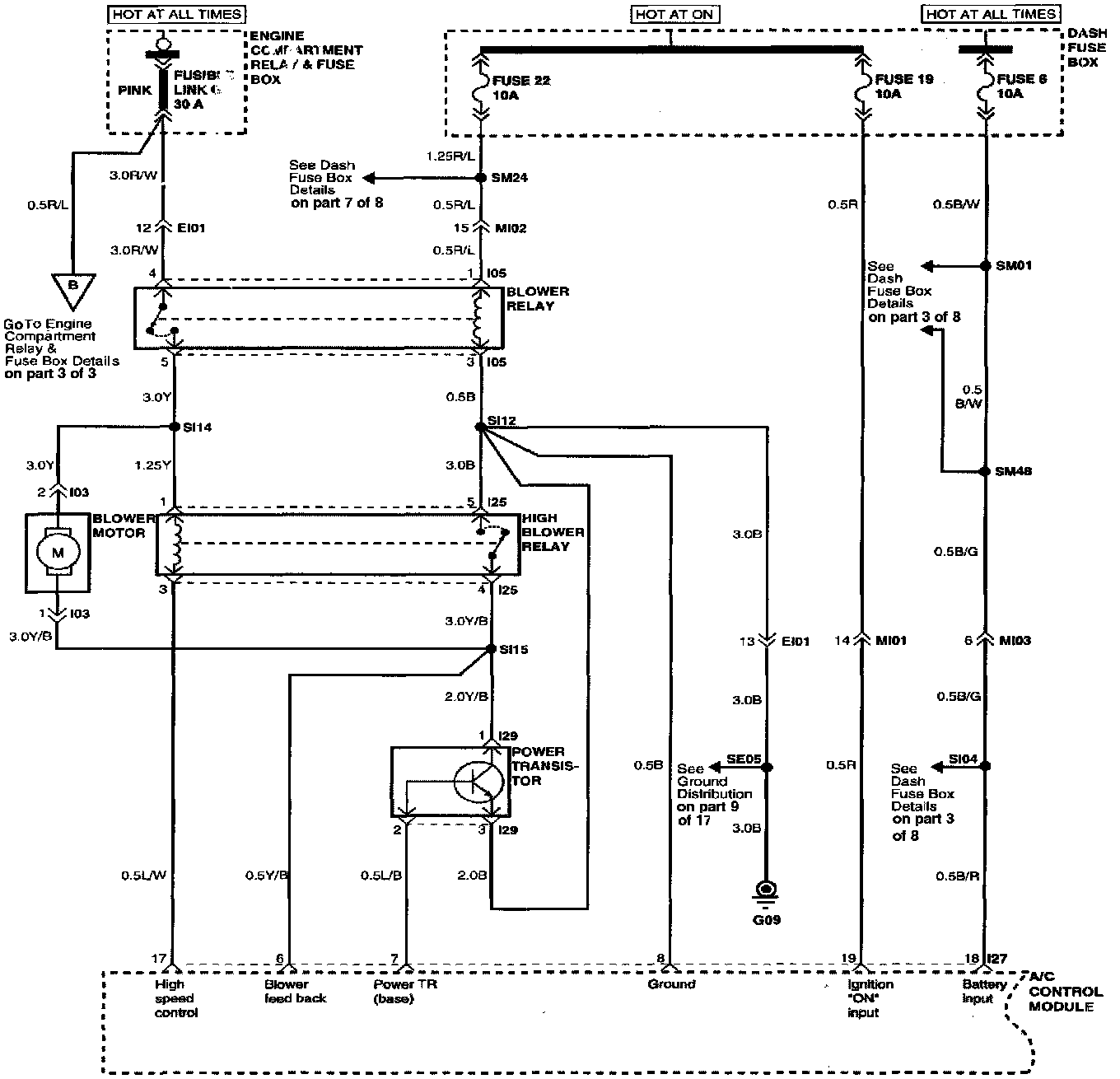

Blower And A/C Controls (Automatic) (Part 1 Of 3):




(Part 1 Of 3)
Blower Relay
Dash Fuse Box
Engine Compartment Relay & Fuse Box
High Blower Relay
Power Transistor
A/C Control Module

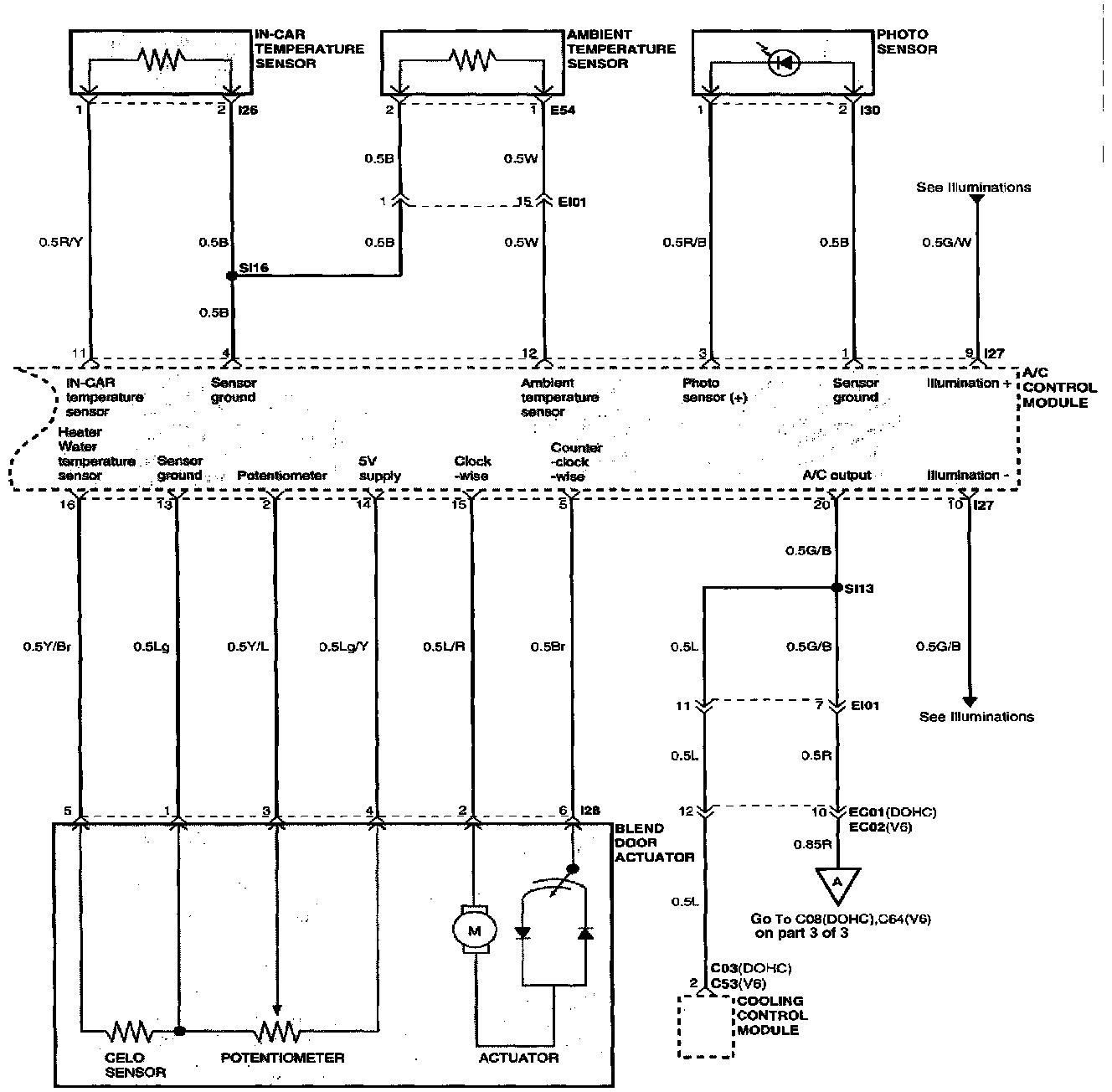

Blower And A/C Controls (Automatic) (Part 2 Of 3):




(Part 2 Of 3)
A/C Control Module
Ambient Temperature Sensor
Blend Door Actuator
Cooling Control Module
In-Car Temperature Sensor
Photo Sensor

Blower And A/C Controls (Automatic) (Part 3 Of 3):




(Part 3 Of 3)
A/C Relay
A/C Compressor
A/C Low Presure Switch
Engine Compartment Relay & Fuse Box
Thermo Sensor
