Radio, Stereo, and Compact Disc

Sound System (Part 1 Of 3):

(Part 1 Of 3)
Audio
Dash Fuse Box
Left Front Speaker
Left Door Speaker
Left Tweeter Speaker
Right Front Speaker
Right Tweeter Speaker
Right Door Speaker

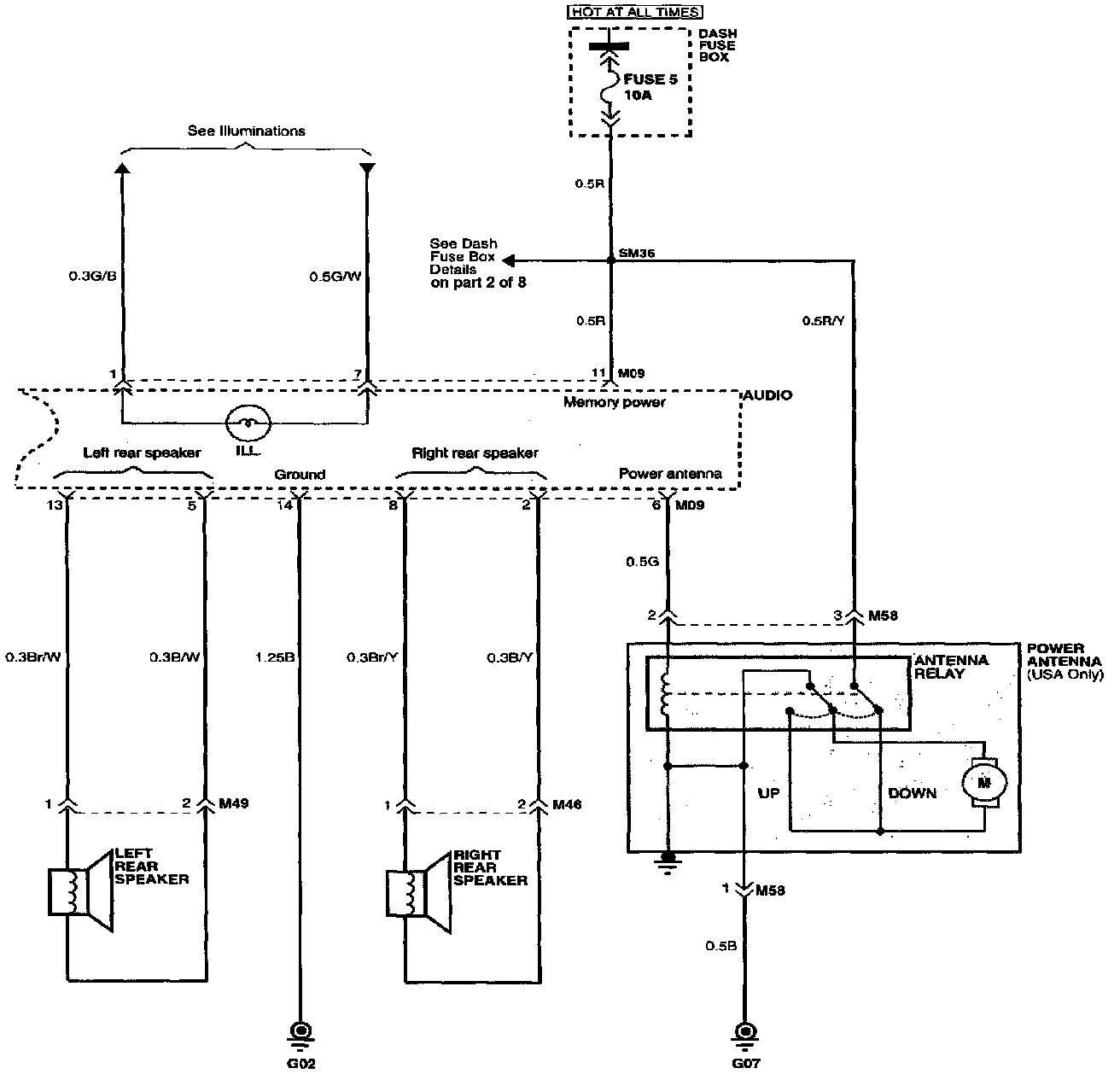

Sound System (Part 2 Of 3):

(Part 2 Of 3)
Audio
Dash Fuse Box
Power Antenna
Left Reat Speaker
Right Rear Speaker

Sound System (Part 3 Of 3):

(Part 3 Of 3)
Audio
Left Audio Remote Control Switch
Right Audio Remote Control Switch
Slip Ring Connector



Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of The Amplifier, Sound Systems.
Locations
