Without Sunroof

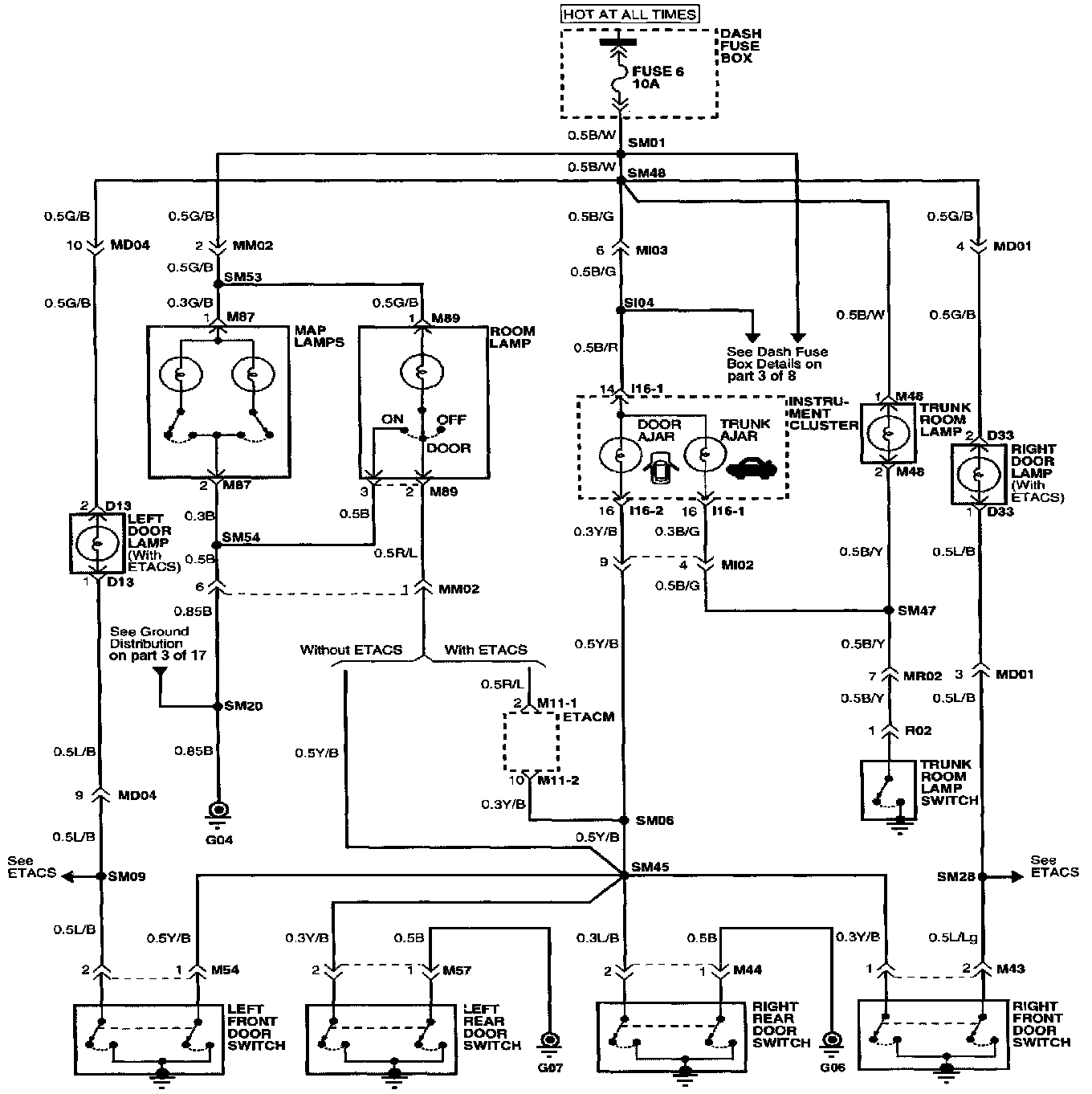

Courtesy And Trunk Lamps - Without Sunroof:
Electrical Diagrams
Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views
Connector Locations Are Found In The Locations Section Of The Trunk Lamp.
Locations
