Control Harness

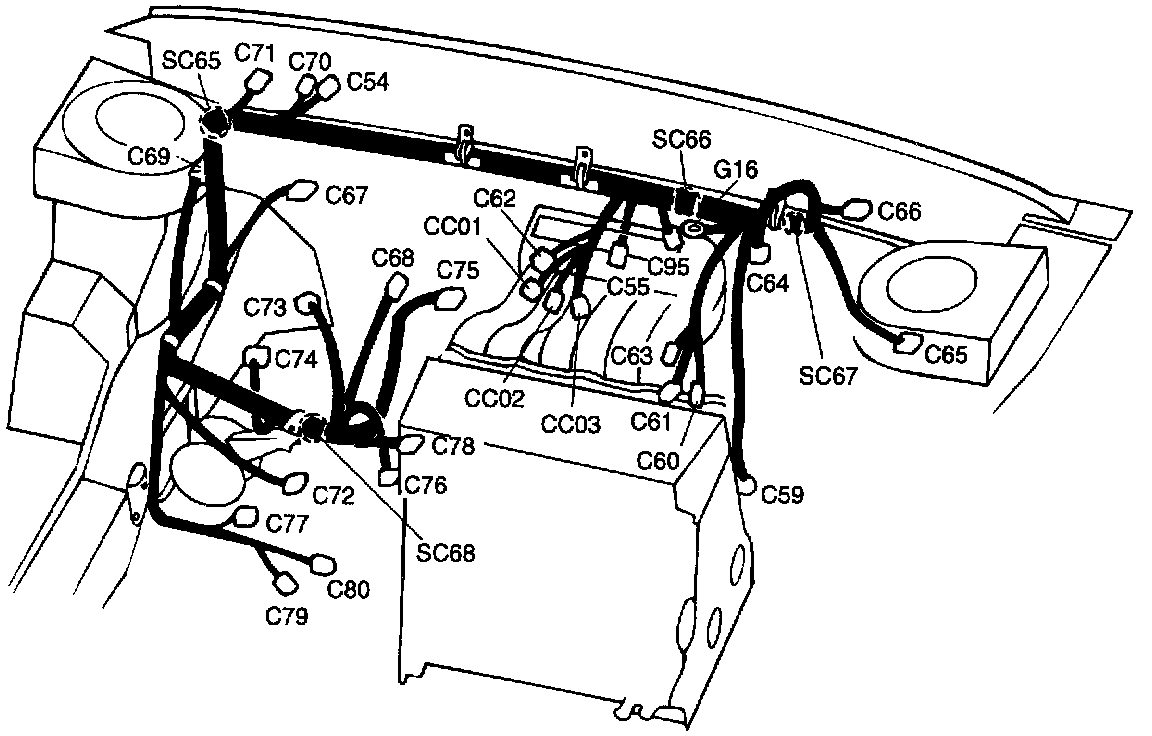

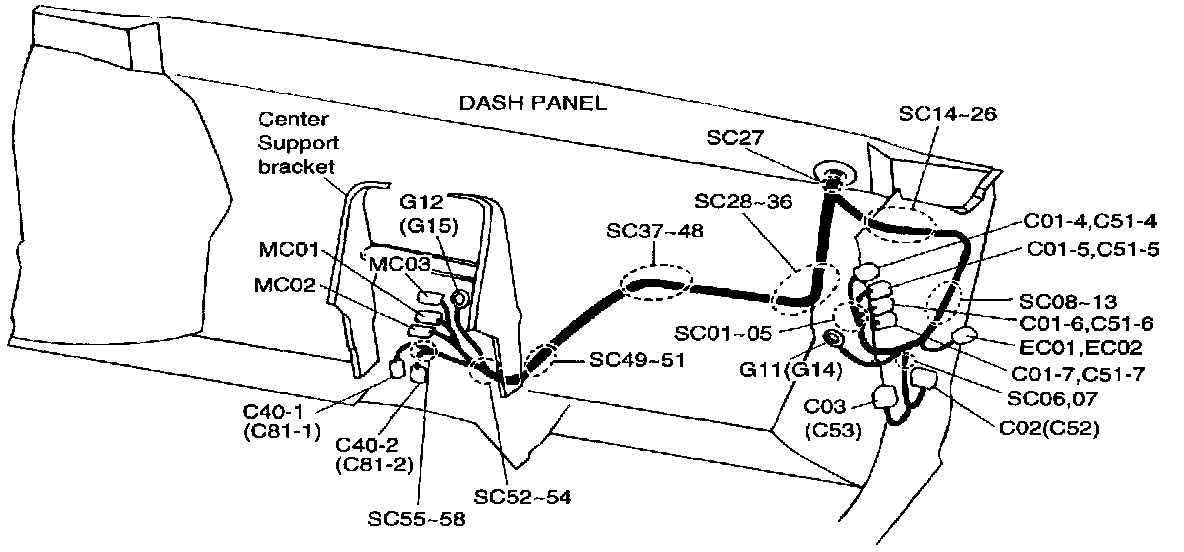

Harness Layout

C51-4 ECM
C51-5 ECM
C51-6 ECM
C51-7 ECM
C52 Engine control relay
C53 Cooling control module
C54 Pre-excitation resistor
C55 EGR temperature solenoid
C59 Front oxygen sensor
C60 Ignition coil
C61 Ignition power transistor
C62 Noise filter
C63 Radio noise condenser
C64 A/C pressure switch (Low)
C66 Wiper motor
C67 Brake fluid level sensor
C68 Purge solenoid
C69 Cruise control actuator
C70 Fuel pump checker
C71 Ignition control adjusting connector
C72 A/T pulse generator
C73 Volume air flow sensor
C74 Transaxle valve body
C75 Throttle position sensor
C76 Vehicle speed sensor
C77 Transaxle range switch
C78 Idle speed control motor
C79 A/T oil temperature sensor
C80 Kick down servo switch
C81-1 TCM
C81-2 TCM
C83 Engine control temperature sender
C84 Engine control temperature sensor
C85 Start solenoid
C86 Thermo sensor (115 ° C)
C87 Power steering pressure switch
C88-1 Injector #1
C88-2 Injector #2
C88-3 Injector #3
C88-4 Injector #4
C88-5 Injector #5
C88-6 Injector #6
C89 Oil pressure switch
C9C Generator (L, S)
C91 Generator (B+)
C93 Crankshaft position sensor
C94 Camshaft position sensor
C97 Battery terminal
CC01 Connection with CONTROL harness
CC02 Connection with CONTROL harness
CC03 Connection with CONTROL harness
EC04 Connection with ENGINE harness
C95 Manifold differential pressure sensor
CC01 Connection with INTER harness
CC02 Connection with INTER harness
CC03 Connection with INTER harness
EC04 Connection with ENGINE harness
ECM GROUND G14
TCM GROUND G15
Dash GROUND G16
MC01 Connection with MAIN harness
MC02 Connection with MAIN harness
MC03 Connection with MAIN harness
