Door Harness (Front)

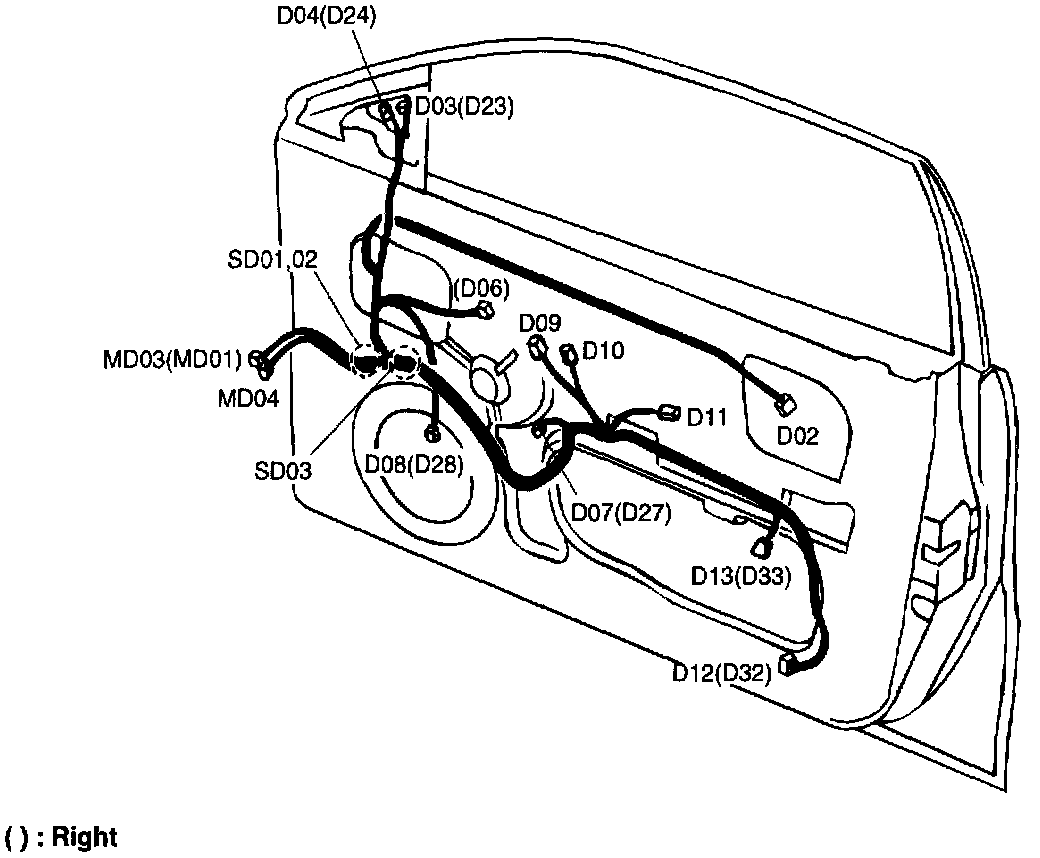

Harness Layout

D02 Door key hole ILL. lamp
D03 Left tweeter speaker
D23 Right tweeter speaker
D04 Left outside mirror motor & Defogger
D24 Right outside mirror motor & Defogger
D06 Right front power window switch
D07 Left front power window motor
D27 Right front power window motor
D08 Left door speaker
D28 Right door speaker
D09 Power window main switch
D10 Power door mirror switch
D11 Trunk lid opener switch
D12 Left front door lock actuator
D32 Right front door lock actuator
D13 Left door lamp
D33 Right door lamp
MD01 Connection with RIGHT MAIN harness
MD03 Connection with LEFT MAIN harness
MD04 Connection with LEFT MAIN harness
