Door Harness (Rear)

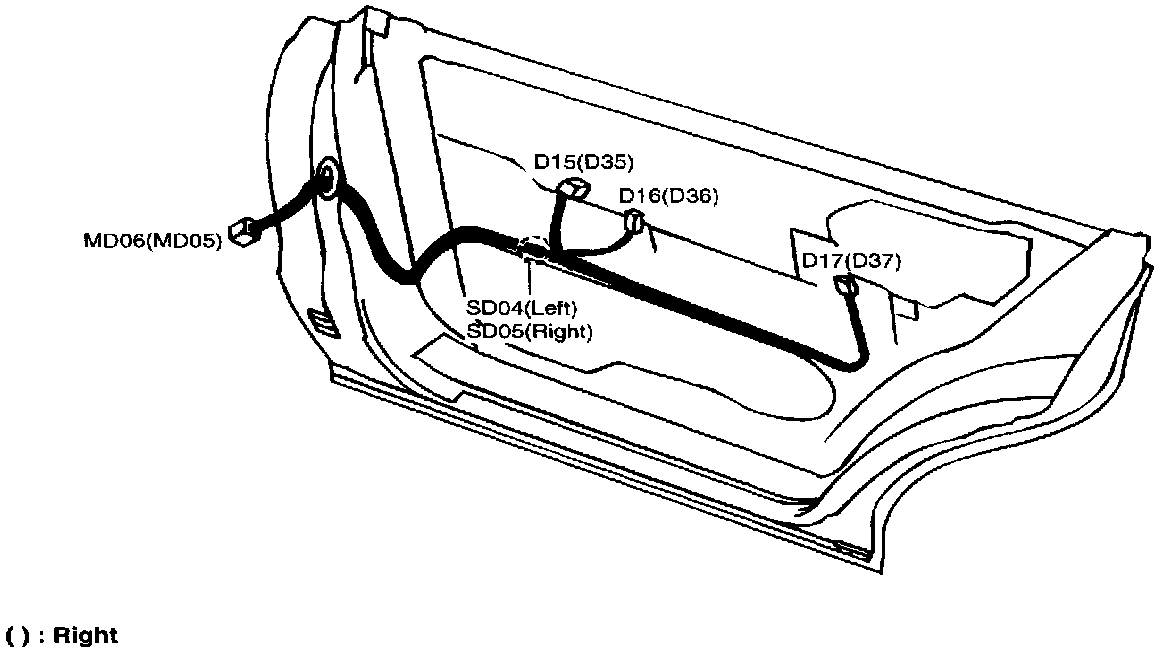

Harness Layout

D15 Left rear power window switch
D35 Right rear power window switch
D16 Left rear power window motor
D36 Right rear power window motor
D17 Left rear door lock actuator
D37 Right rear door lock actuator
MD05 Connection with RIGHT MAIN harness
MD06 Connection with LEFT MAIN harness
