Main Wiring Harness

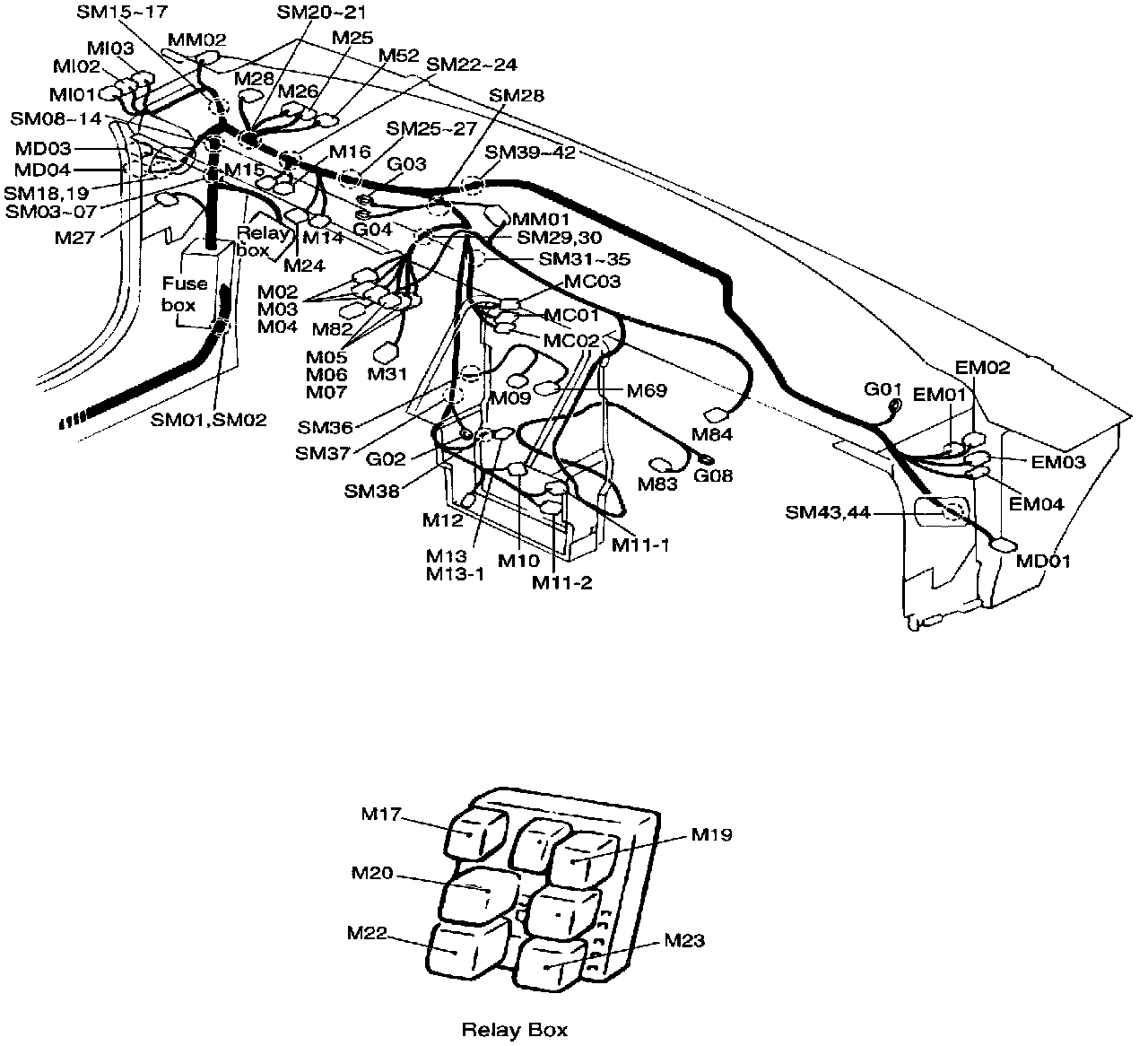

Harness Layout

M02 Multifunction switch
M03 Multifunction switch
M04 Multifunction switch
M05 Ignition key lock solenoid (A/T)
M06 Door warning & IG key ILL. switch (ETACM)
M07 Ignition switch
M09 Audio
M10 Shift and key lock control module
M11-1 ETACM
M11-2 ETACM
M12 Cigarette lighter
M13 Cruise control module
M13-1 Cruise control module extension
M14 Stop lamp switch
M15 Starter clutch pedal position switch (M/T)
M16 Cruise clutch pedal position switch (M/T)
M17 Power window relay
M19 Horn relay
M20 Fog lamp relay
M22 Flasher unit
M23 Wiper motor relay (ETACM)
M24 ABS control module
M25 Power door lock relay (ETACM)
M26 Seat belt timer (Without ETACM)
M27 Intermittent wiper timer (Without ETACM)
M28 Chime bell
M31 Data link connector
M52 Defogger relay (ETACM)
M69 Audio remote control switch (ETACM)
M70 Slip ring connector (Without air bag)
M71 Left audio remote control switch (Without air bag)
M72 Right audio remote control switch (Without air bag)
M73 Horn switch (Without air bag)
M74 Slip ring connector (Air bag)
M75 Left audio remote control switch (Air bag)
M76 Right audio remote control switch (Air bag)
M77 Horn switch (Air bag)
M82 Contact coil (Air bag)
M83 SRS control module (Air bag)
M84 Passenger air bag
EM01 Connection with ENGINE harness
EM02 Connection with ENGINE harness
EM03 Connection with ENGINE harness
EM04 Connection with ENGINE harness
MC01 Connection with CONTROL harness
MC02 Connection with CONTROL harness
MC03 Connection with CONTROL harness
MD01 Connection with RH FRONT DOOR harness
MD03 Connection with LH FRONT DOOR harness
MD04 Connection with LH FRONT DOOR harness
M101 Connection with INSTRUMENT harness
M102 Connection with INSTRUMENT harness
M103 Connection with INSTRUMENT harness
MM01 Connection with AIR BAG harness
MM02 Connection with ROOF harness
G01 Deck ground
G02 Control support panel ground
G03 ABS ground
G04 Deck ground
G08 Air bag ground

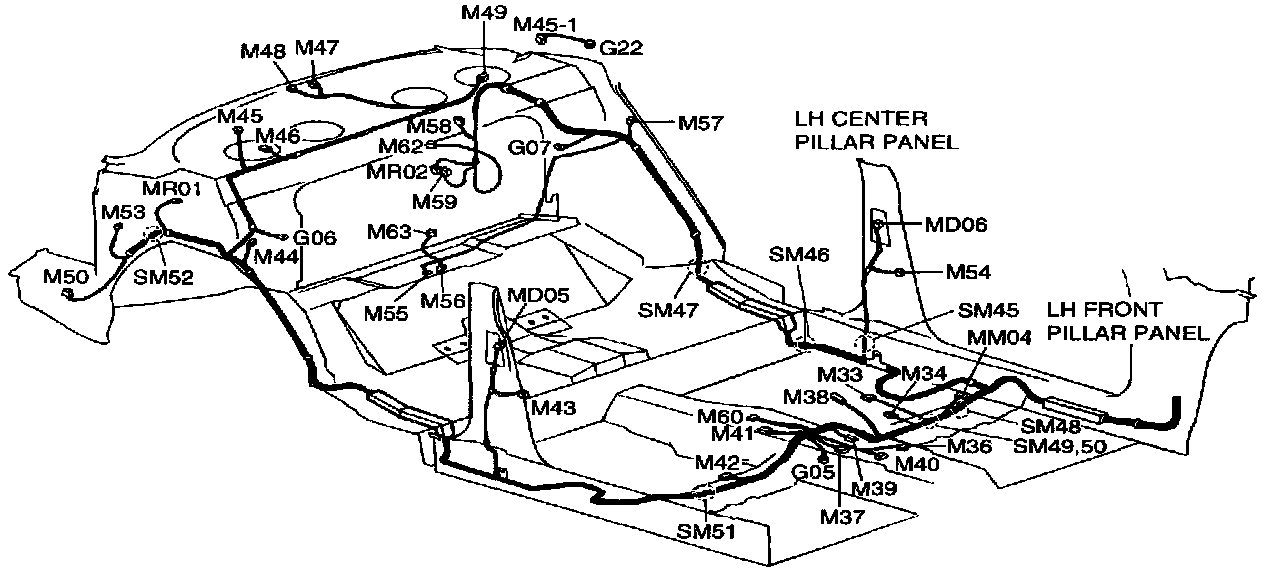

M33 Seat belt switch
M34 Left front seat warmer
M36 Left front seat warmer switch
M37 Power/Normal switch (Air)
M38 Rear oxygen sensor (Except California area)
M39 Parking brake switch
M40 Right front seat warmer switch
M40-1 Slide adjuster
M40-2 Slide adjuster limit switch
M40-3 Front height adjuster
M40-4 Rear height adjuster
M40-5 Reclining adjuster
M40-6 Power seat adjuster switch
M41 Air shift lever
M42 Right front seat warmer
M43 Right front door switch
M44 Right rear door switch
M45 Rear window defogger (+)
M45-1 Rear window defogger (-)
M46 Right rear speaker
M47 High mounted stop lamp
M48 Trunk room lamp
M49 Left rear speaker
M50 Right rear wheel sensor
M53 Defogger timer (Without ETACM)
M54 Left front door switch
M55 Fuel pump sensor
M56 Fuel pump motor
M57 Left rear door switch
M58 Power antenna
M59 Left rear wheel sensor
M60 Key interlock switch (Air)
M62 Canister close valve (CCV)
M63 Fuel tank pressure sensor
MD05 Connection with RH REAR DOOR harness
MD06 Connection with LH REAR DOOR harness
MM04 Connection with POWER SEAT harness
MR01 Connection with TRUNK LID harness
MR02 Connection with TRUNK ROOM harness
G05 Console ground
G06 Rear ground
G07 Rear ground
G22 Rear window defogger ground
