Trunk Room and Trunk Lid Harness

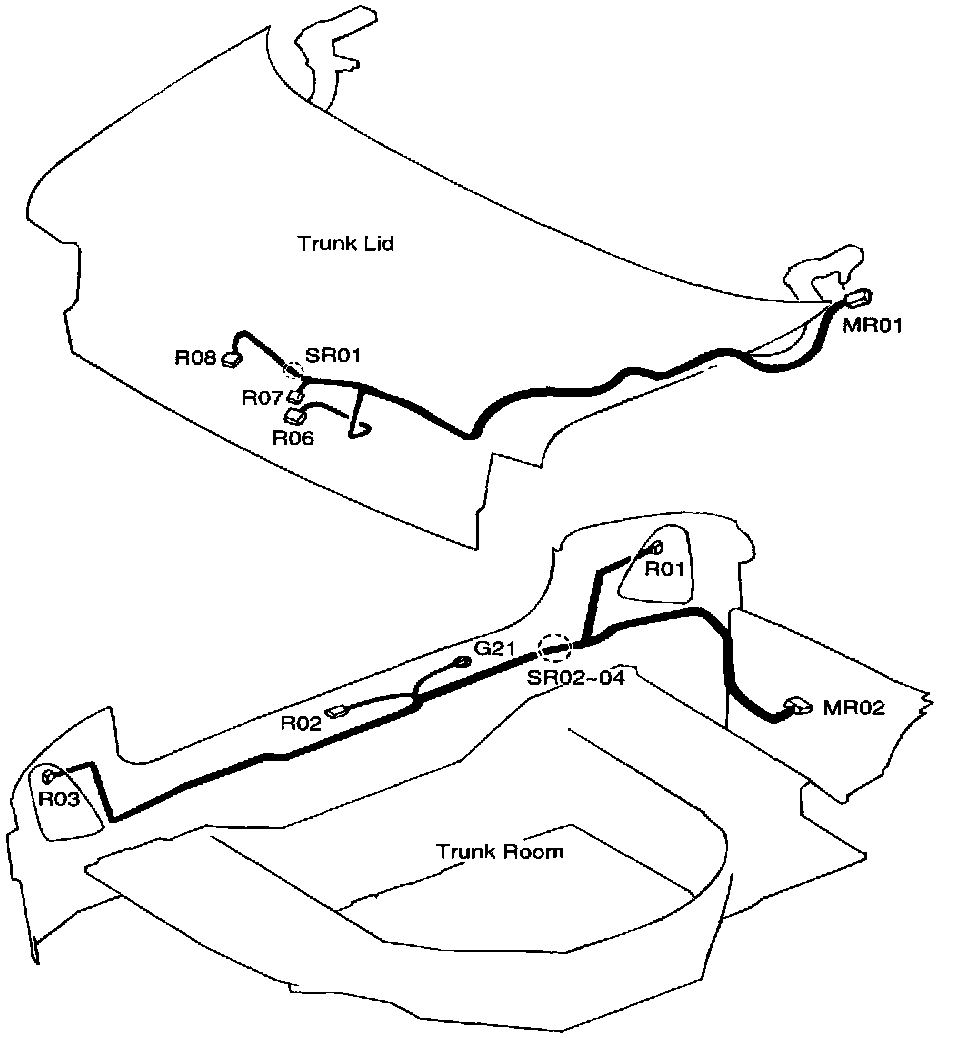

Harness Layout

R01 Left rear combination lamp
R02 Trunk room lamp switch
R03 Right rear combination lamp
R06 Trunk lid solenoid
R07 Right license lamp
R08 Left license lamp
MR01 Connection with MAIN harness
MR02 Connection with MAIN harness
G21 Trunk room ground
