General Specifications

Tightening Torque (Part 1 Of 3):

Tightening Torque (Part 2 Of 3):

Tightening Torque (Part 3 Of 3):

Fig. 14 Cylinder Head Bolt Tightening Sequence:

When tightering the cylinder head bolts, repeat the sequence 2 or 3 times, each time increasing the torque until the specified torque is reached. Cylinder head bolts Cold (Engine coolant temperature approximately 20°C [68°F]): 105 - 115 Nm (1050 - 1150 kgs.cm, 76 - 83 ft. lbs.)


















Drive Plate-To-Converter (Flex Plate) Tightening Bolt 46 - 53 Nm (34 - 38 ft. lbs.)





Camshaft Bearing Cap Bolt Torque









Camshaft Bearing Cap Bolt Tightening Sequence

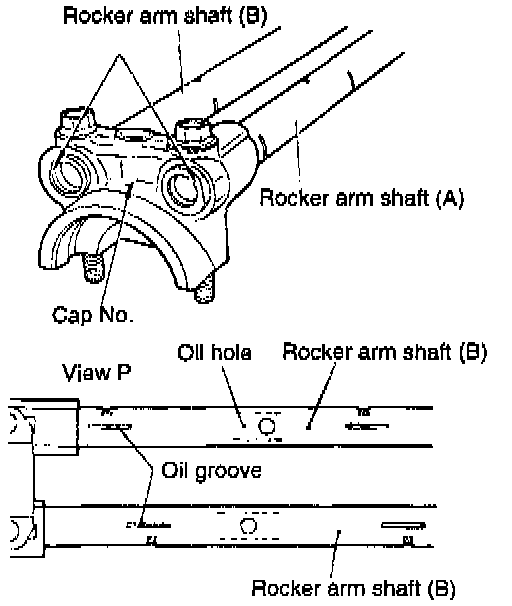

Insert bearing cap No. 1 so that the notch on the end of the shaft faces in the direction shown in the illustration. Insert the mounting bolt.
