Heater Core Temperature Sensor / Switch: Testing and Inspection

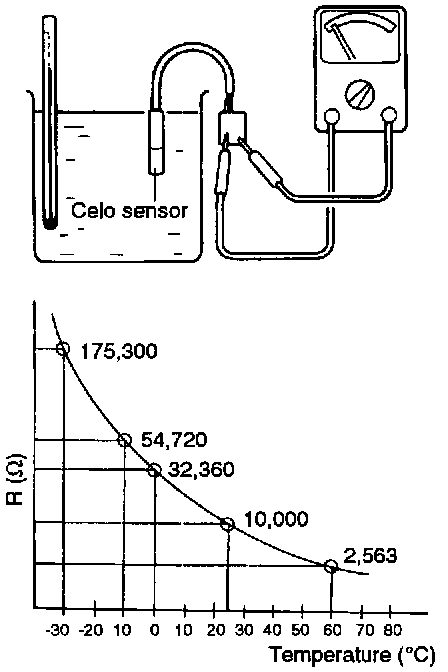

1. Immerse the CELO sensor in water.
2. Using a stove, heating the water measure the resistance between terminal 1 and terminal 2.




3. Check the resistance value is within specification as shown in the graph.

Water temperature Resistance
25° C 10 ± 0.5 K Ohms
60° C 2.56 ± 0.3 K Ohms
