Locations
>>
Component Locations
Component Locations

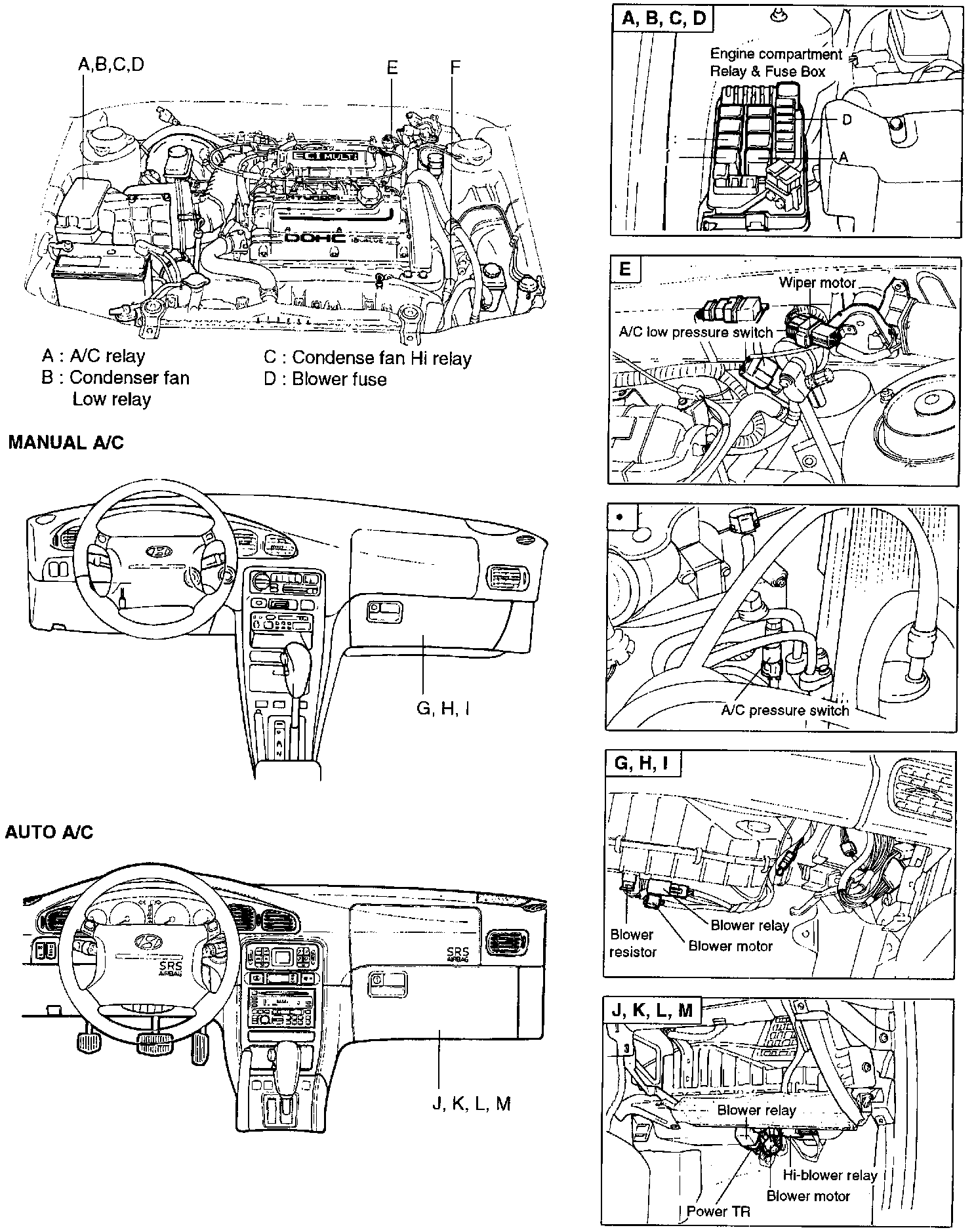

A/C Component Locations:

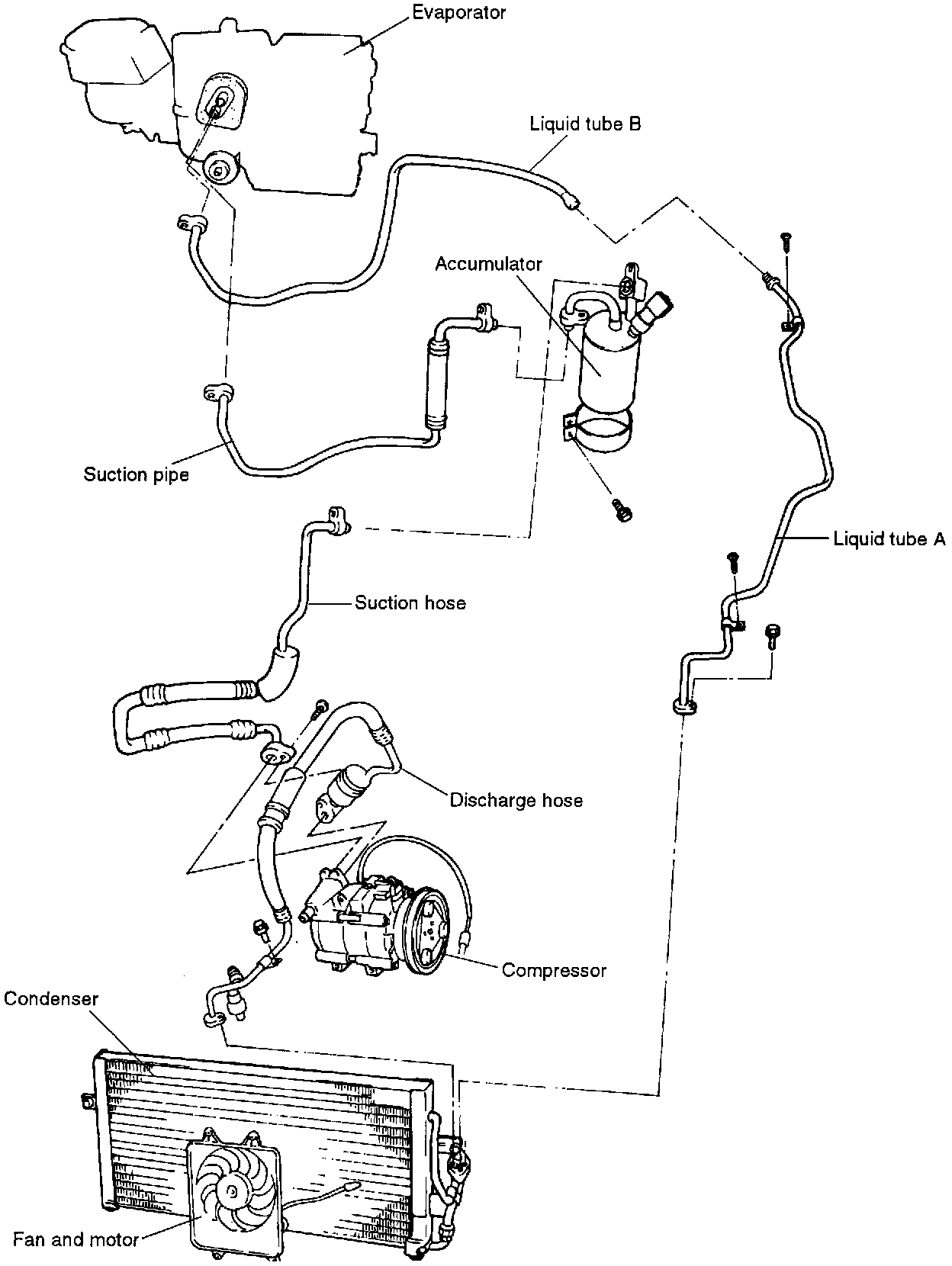

A/C System Layout And Component Locations:

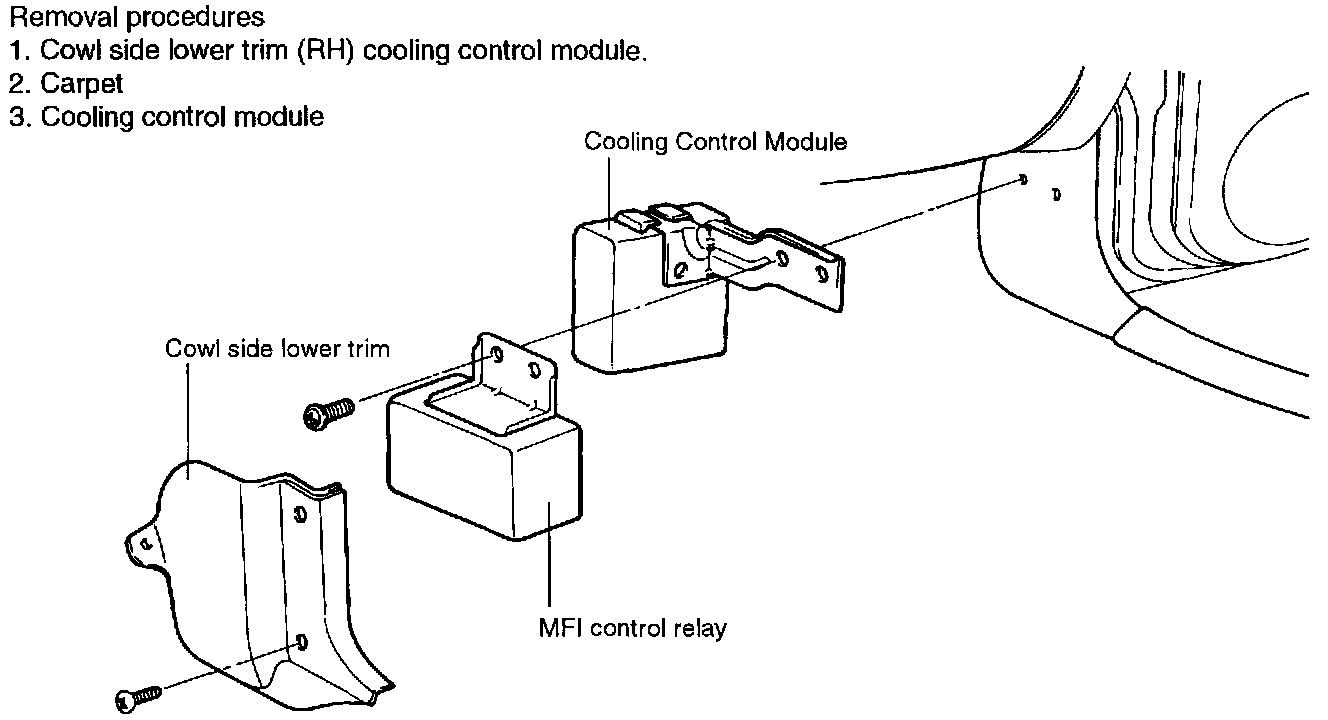

Cooling Control Module And MFI Control Relay:
