Illumination

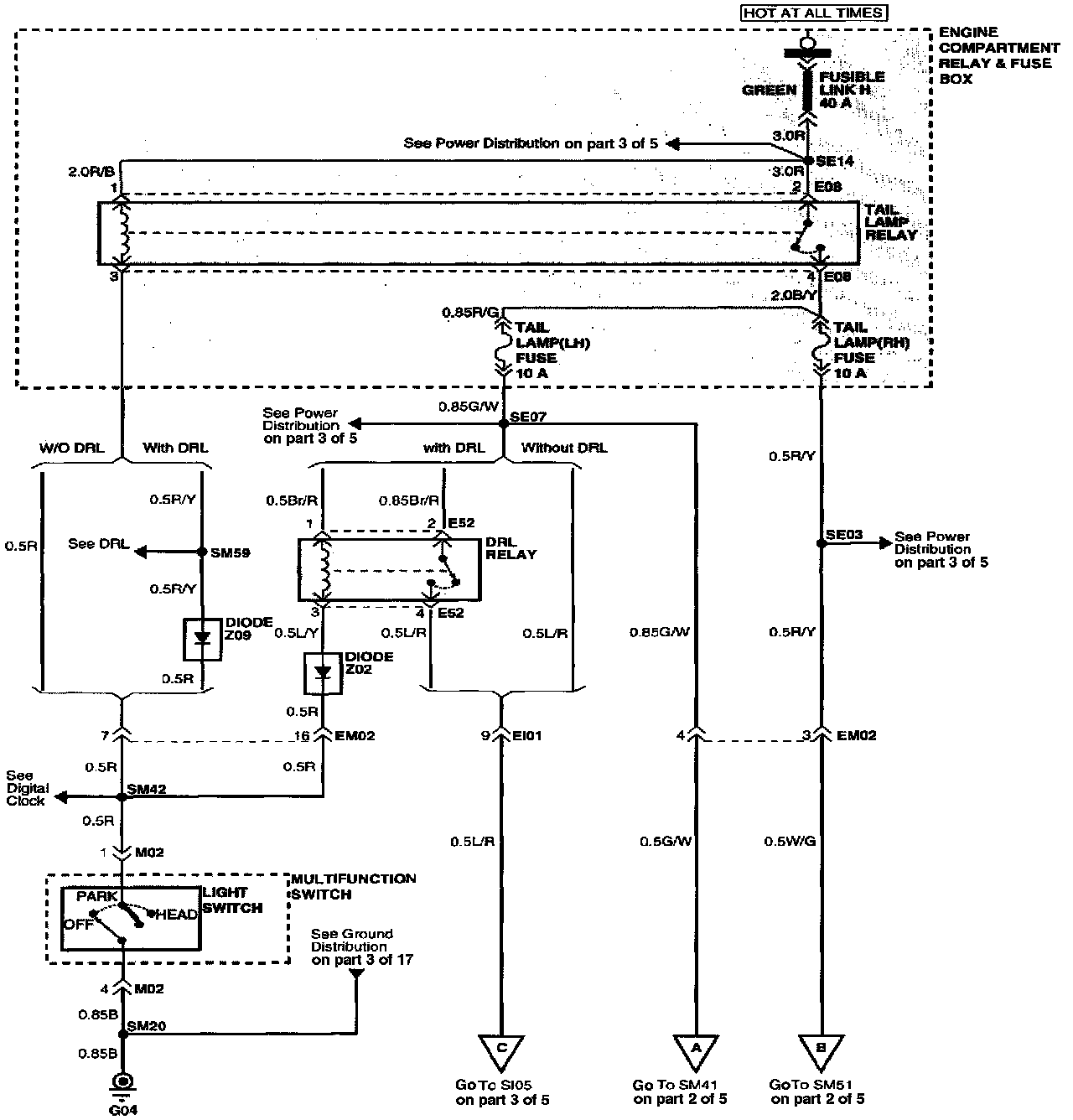

Illuminations (Part 1 Of 5):

(Part 1 Of 5)
DRL Relay
Engine Compartment Relay And Fuse Box
Multifunction Switch

Illuminations (Part 2 Of 5):

(Part 2 Of 5)
Ashtray Ill.
Cigar Lighter Ill.
Right Front Power Window Switch Ill.
Right Rear Power Window Switch Ill.
Left Rear Power Window Switch Ill.
Right Front Power Window Switch Ill.
Power Window Main Switch (Power Door Mirror Switch Ill.)
Vanity Lamp

Illuminations (Part 3 Of 5):

(Part 3 Of 5)
A/C Switch Ill.
Cruise Switch Ill.
Instrument Cluster
Fresh/RECIRC Switch And Heater Control Panel Ill.
Rheostat

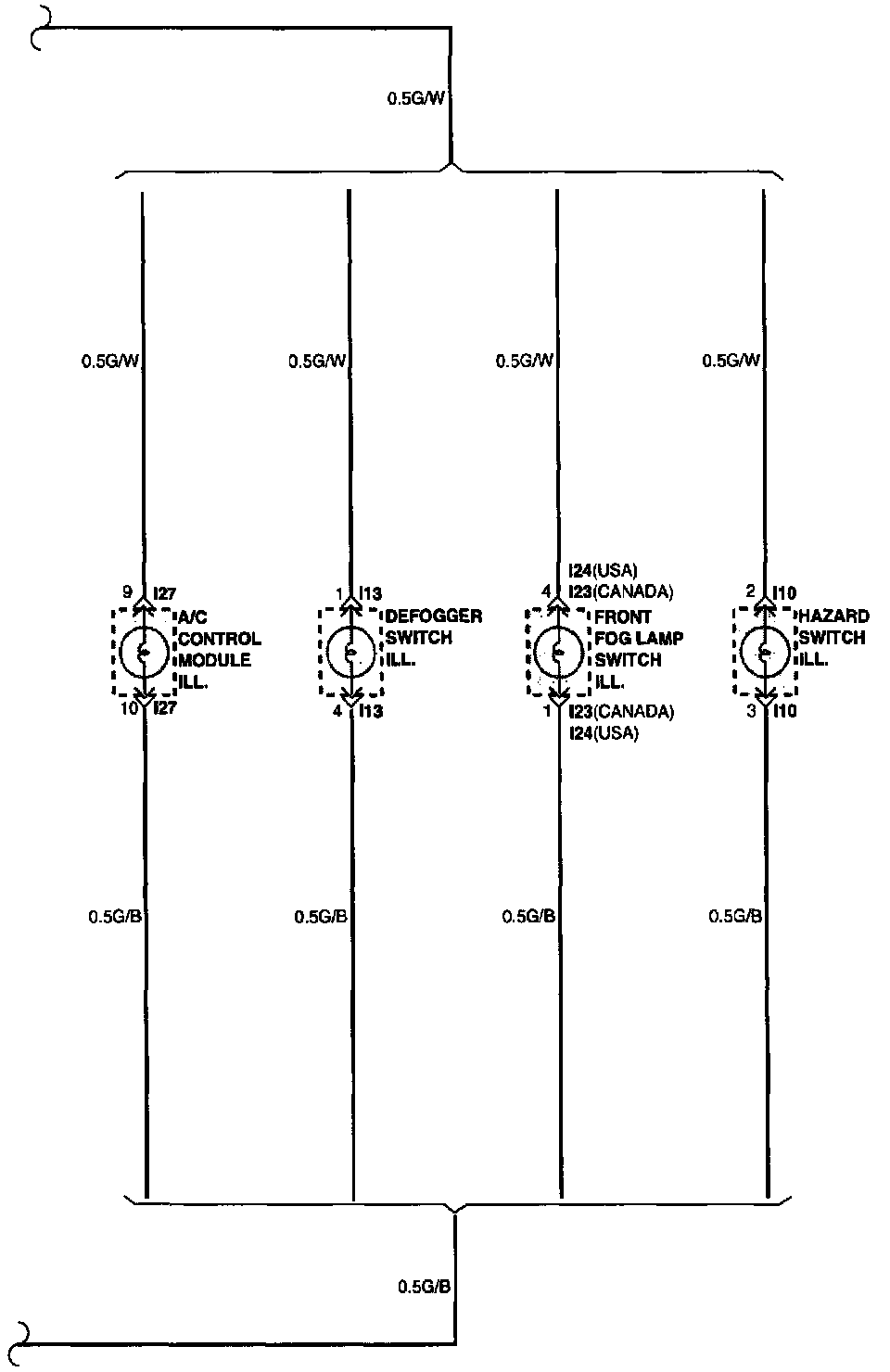

Illuminations (Part 4 Of 5):

(Part 4 Of 5)
A/C Control Module
Defogger Switch Ill.
Front Fog Lamp Ill.
Hazard Switch Ill.

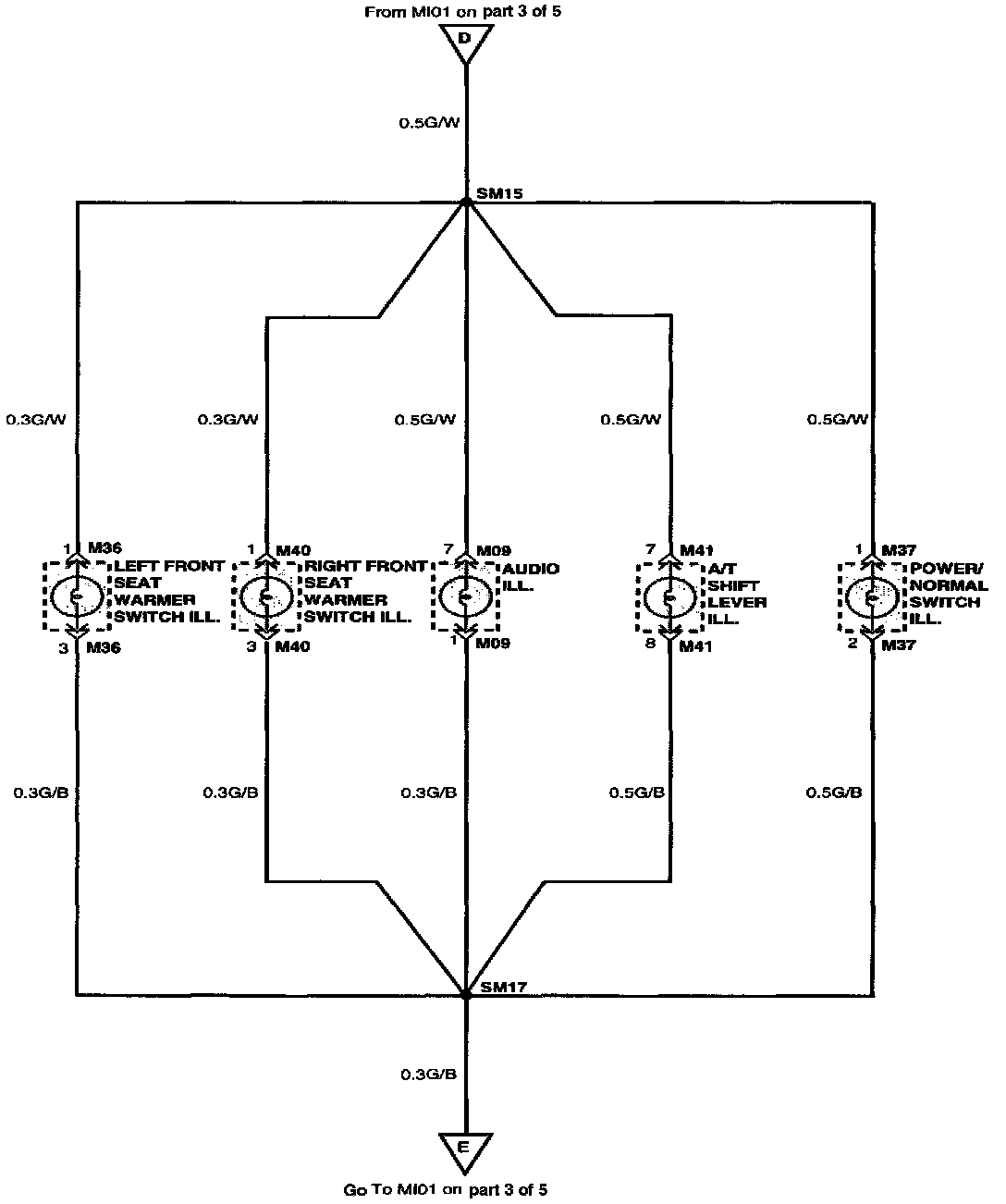

Illuminations (Part 5 Of 5):

(Part 5 Of 5)
Audio Ill.
A/T Shift Lever Ill.
Left Front Seat Warmer Switch Ill.
Right Front Seat Warmer Switch Ill.
Power/Normal Switch Ill.

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of The Instrument Panel, Gauges and Warning Indicators.
Locations
