Home >> Hyundai >> 1998 >> Sonata GL V6-3.0L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Indicators and Gauges

Indicators and Gauges

Gauges:

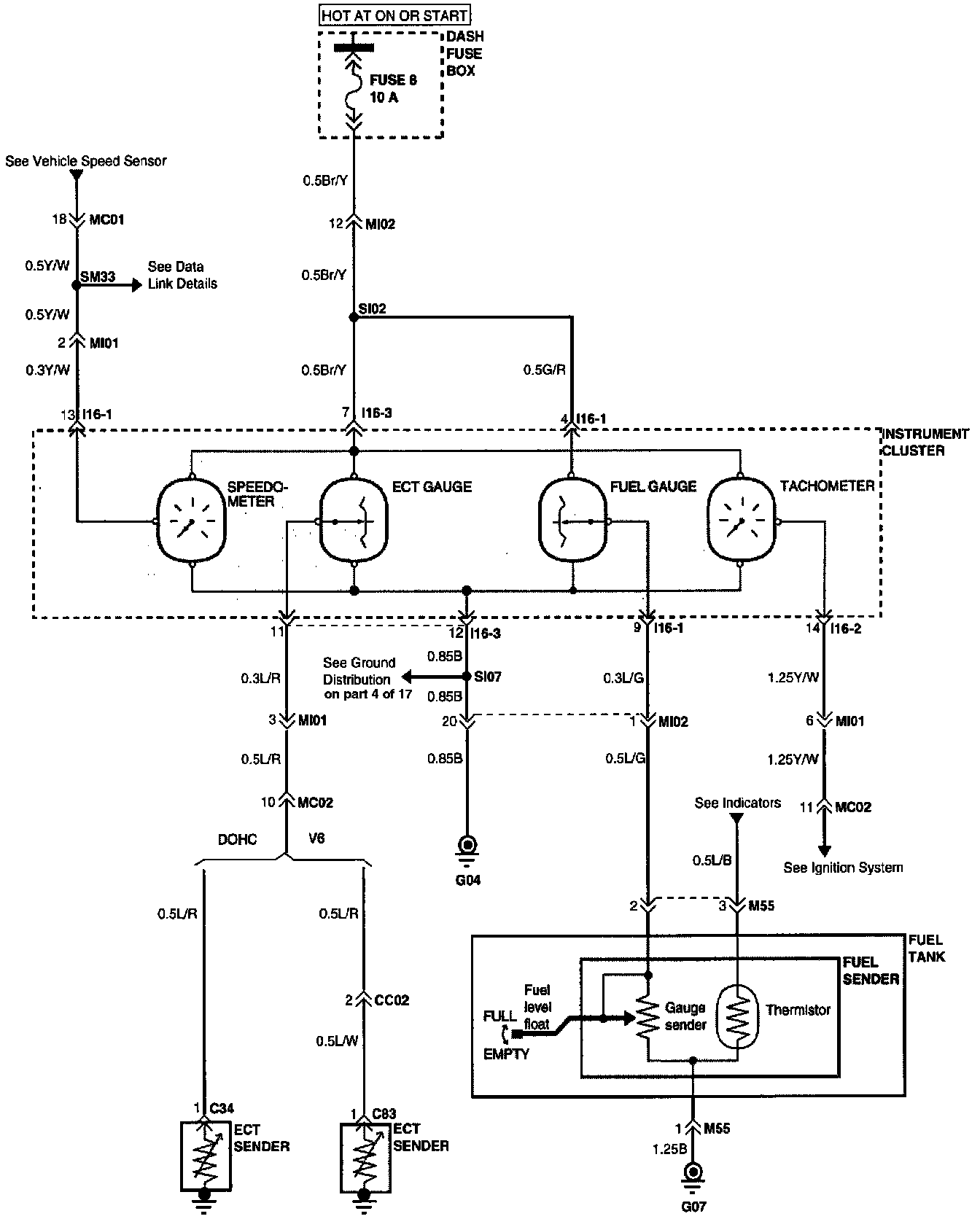

Electrical Diagram


Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of The Instrument Panel, Gauges and Warning Indicators.
Locations
