Instrument Cluster / Carrier: Testing and Inspection

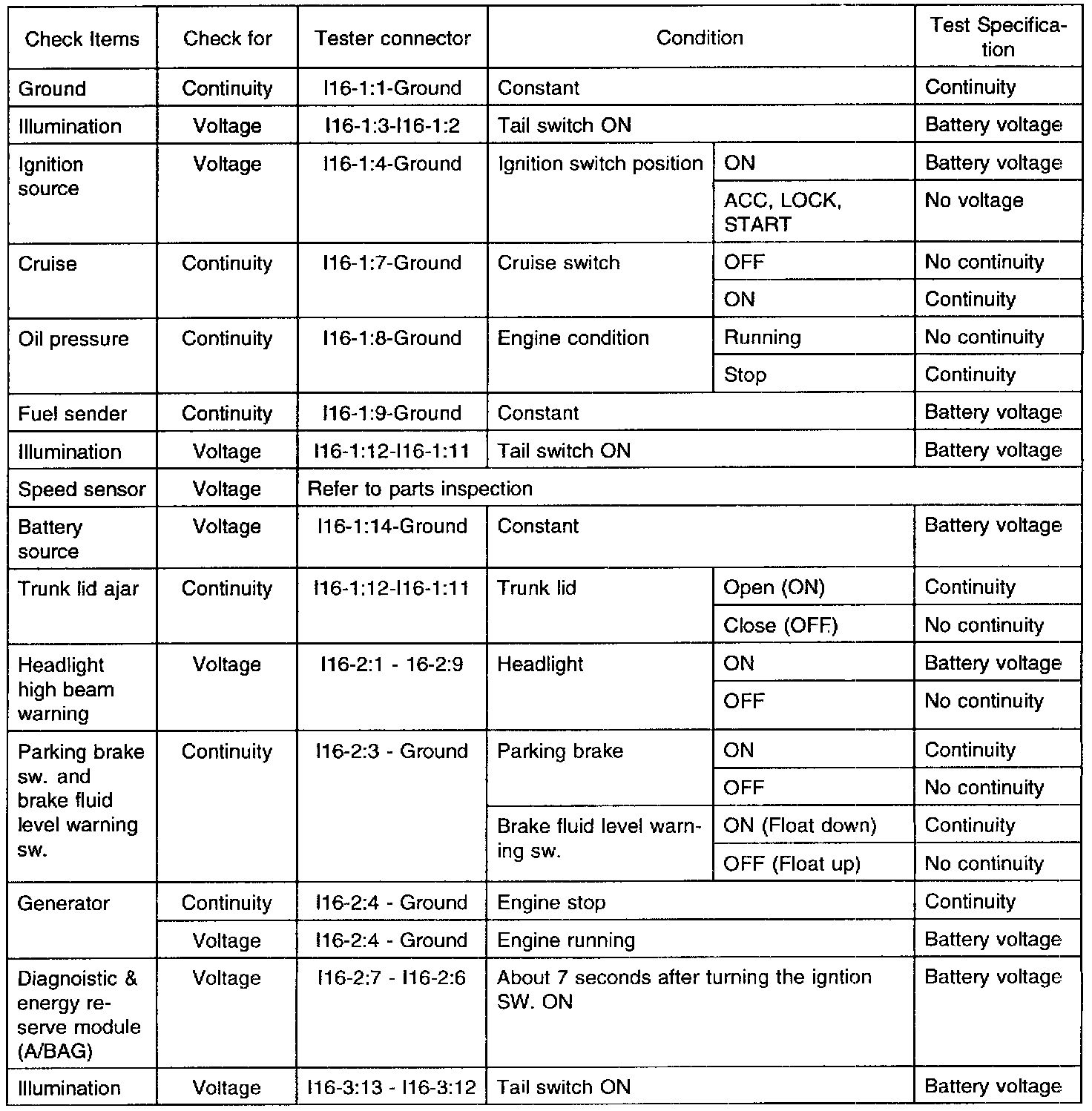

INSPECT INSTRUMENT CLUSTER WIRING CIRCUIT
Disconnect connector (116-1, 116-2 and 116-3) from cluster and inspect the connectors on the wire harness side.
