Courtesy Lamp: Service and Repair

1. Disconnect the negative battery terminal.

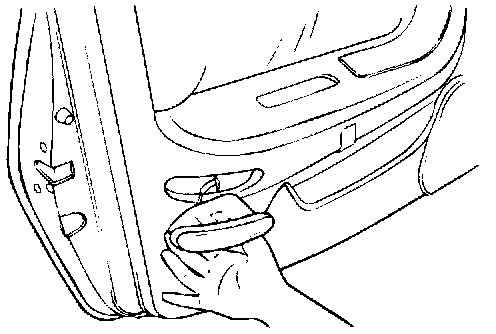

2. Remove the door lamp while inserting the screw driver.
3. Disconnect the connector from door harness.
4. Installation is the reverse order of removal.
