Daytime Running Lamp: Testing and Inspection

Check that the lights are normally operated with following timing chart.

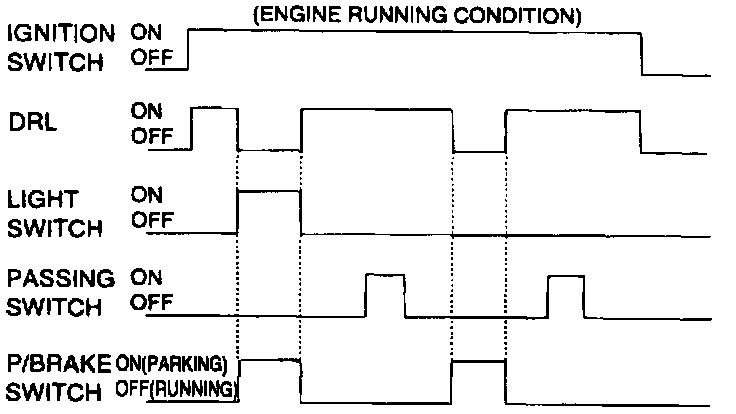

TIMING CHART







INSPECT CIRCUITS FOR DAYTIME RUNNING LIGHT SYSTEM
Disconnect the connector from DRL module and inspect the connector on wire harness side as shown.
If circuit is not as specified, refer to schematic diagram and inspect short or circuits.
