Dimmer Switch: Testing and Inspection

1. Disconnect the negative battery terminal.

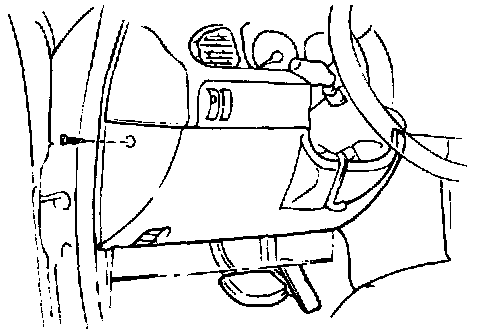

2. Remove the rheostat from crash pad side panel.
3. Disconnect the connector from instrument harness.




4. Check for intensity. If the light intensity of the lamps changes smoothly without any flickering when the rheostat is turned, it can be assumed that the rheostat is normal.
