Dome Lamp: Service and Repair

1. Disconnect the negative battery terminal.

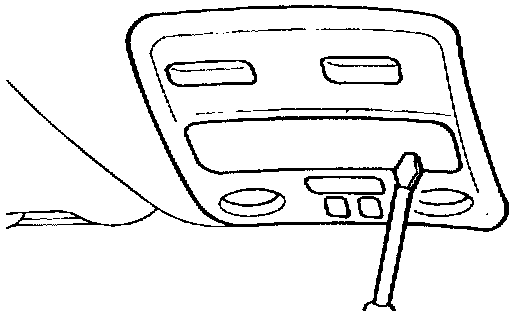

2. Using a screwdriver, detach the overhead console lamp lens.

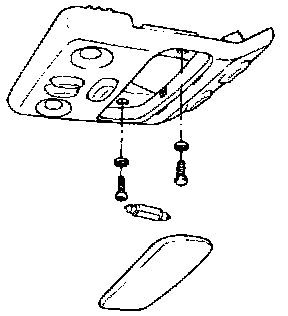

3. Remove the lamp assembly from the head lining by loosening 2 screws.
4. Disconnect the connector from the roof harness.
5. Installation is the reverse of removal procedure.
