Headlamp: Service and Repair
HEAD LAMP/FRONT POSITION LAMP1. Disconnect the negative battery terminal.
2. After loosening the nut, pull out the front combination lamp (turn signal lamp incorporated).
Tightening torque
Front combination lamp mounting nut .................... 5-1.0 Nm (5-10 kg.cm, 0.4-0.7 lb.ft)

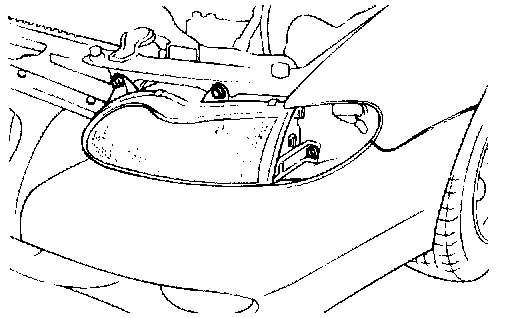

3. Remove the head lamp assembly by loosening the 3 mounting bolts.
4. Disconnect the head lamp connector.
5. Installation is the reverse of removal procedure.
Tightening torque
Head lamp mounting bolt ........................... 3-5 Nm (30-50 kg.cm, 2.2-3.6 lb.ft)
