Electrical Diagrams

�>yD:

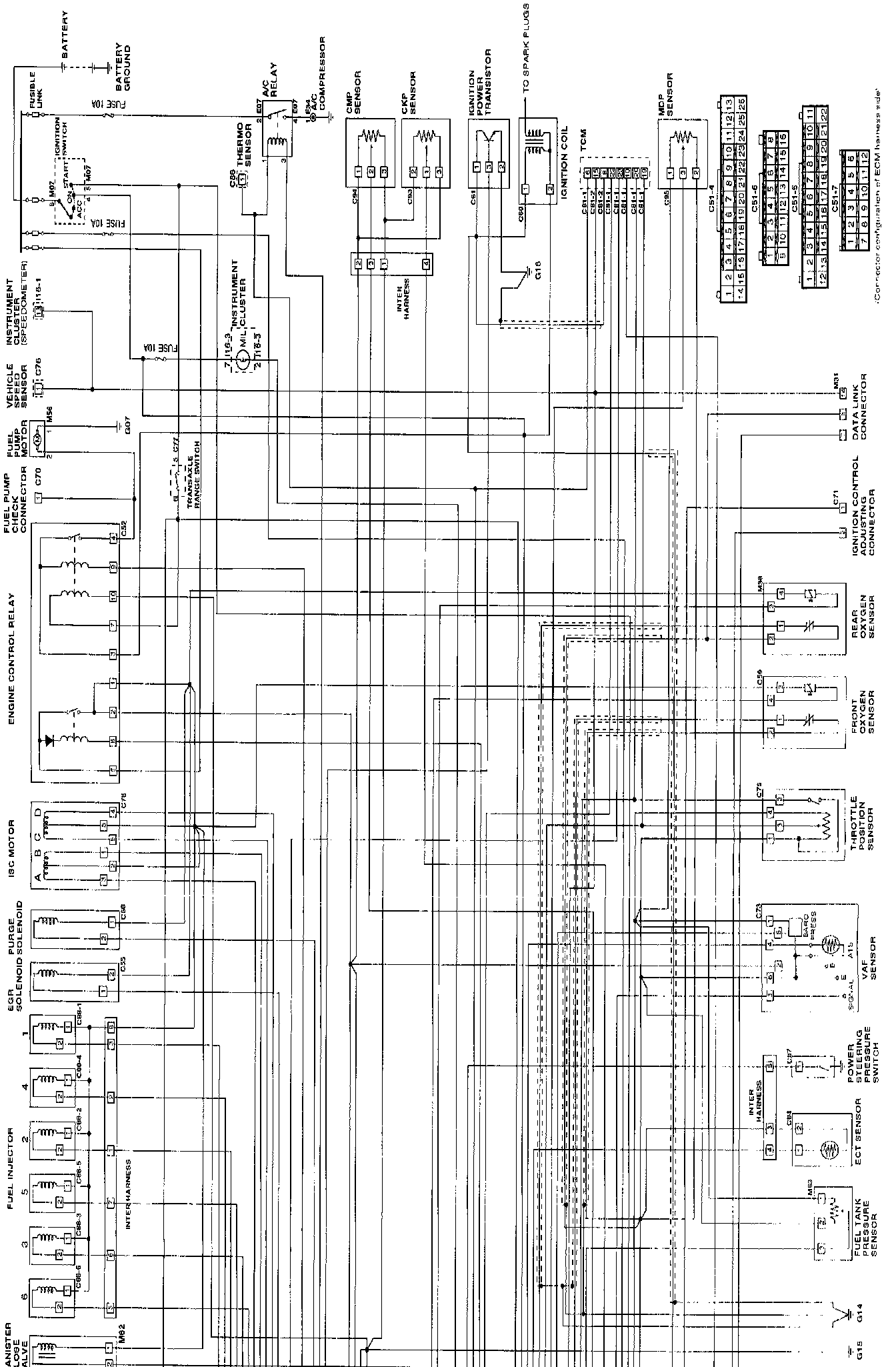

System Schematic

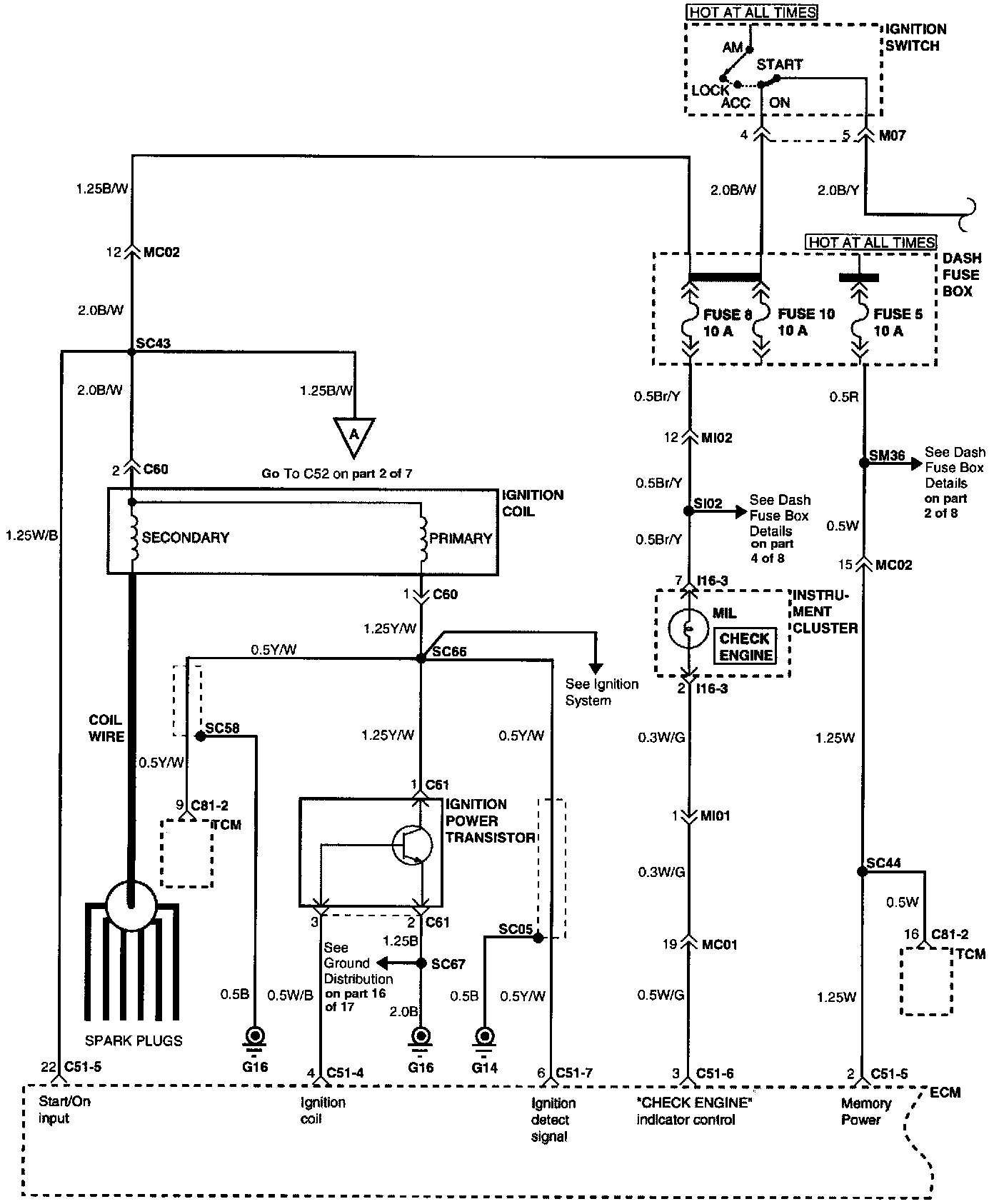

Engine Control System (Part 1 Of 7):

(Part 1 Of 7)
Dash Fuse Box
ECM
Instrument Cluster
Ignition Switch
Ignition Coil
Ignition Power Transistor
Spark Plugs
TCM

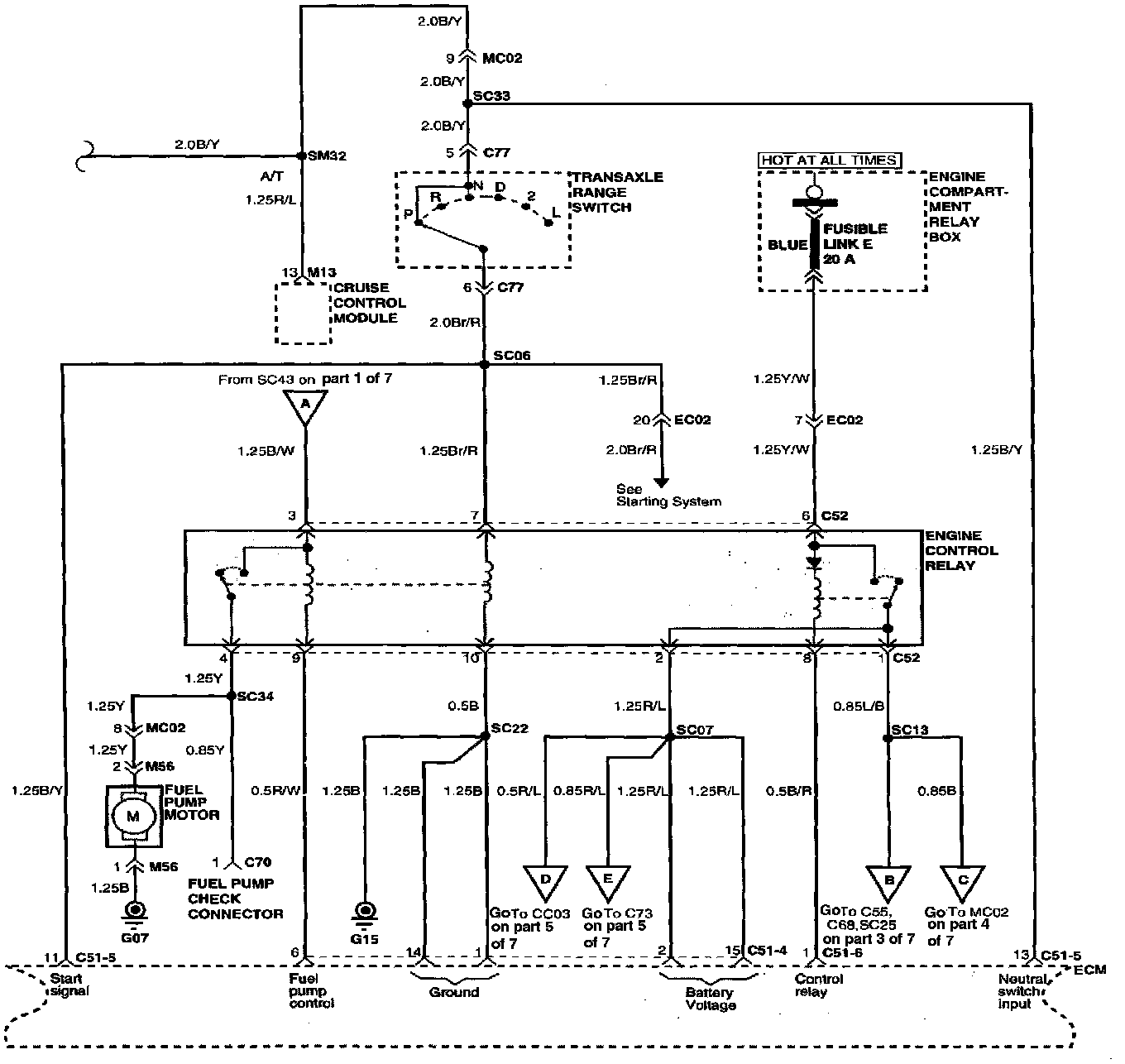

Engine Control System (Part 2 Of 7):

(Part 2 Of 7)
Engine Compartment Relay Box
Engine Control Relay
ECM
Fuel Pump Motor
Fuel Pump Check Connector
Transaxe Range Switch

Engine Control System (Part 3 Of 7):

(Part 3 Of 7)
Cruise Control Module
Data Link Connector
ECM
ISC Motor
Instrument Cluster
TCM
Vehicle Speed Sensor

Engine Control System (Part 4 Of 7):

(Part 4 Of 7)
Canister Close Valve
Front Oxygen Sensor
Rear Oxygen Sensor
ECM

Engine Control System (Part 5 Of 7):

(Part 5 Of 7)
CMP Sensor
CKP Sensor
ECM
Ignition Control Adjusting Connector
MDP Sensor
Throttle Position Sensor
Power Steering Pressure Switch
VAF Sensor

Engine Control System (Part 6 Of 7):

(Part 6 Of 7)
A/C Compressor
Engine Compartment Relay And Fuse Box
Engine Coolant Temperature Sensor
ECM
TCM

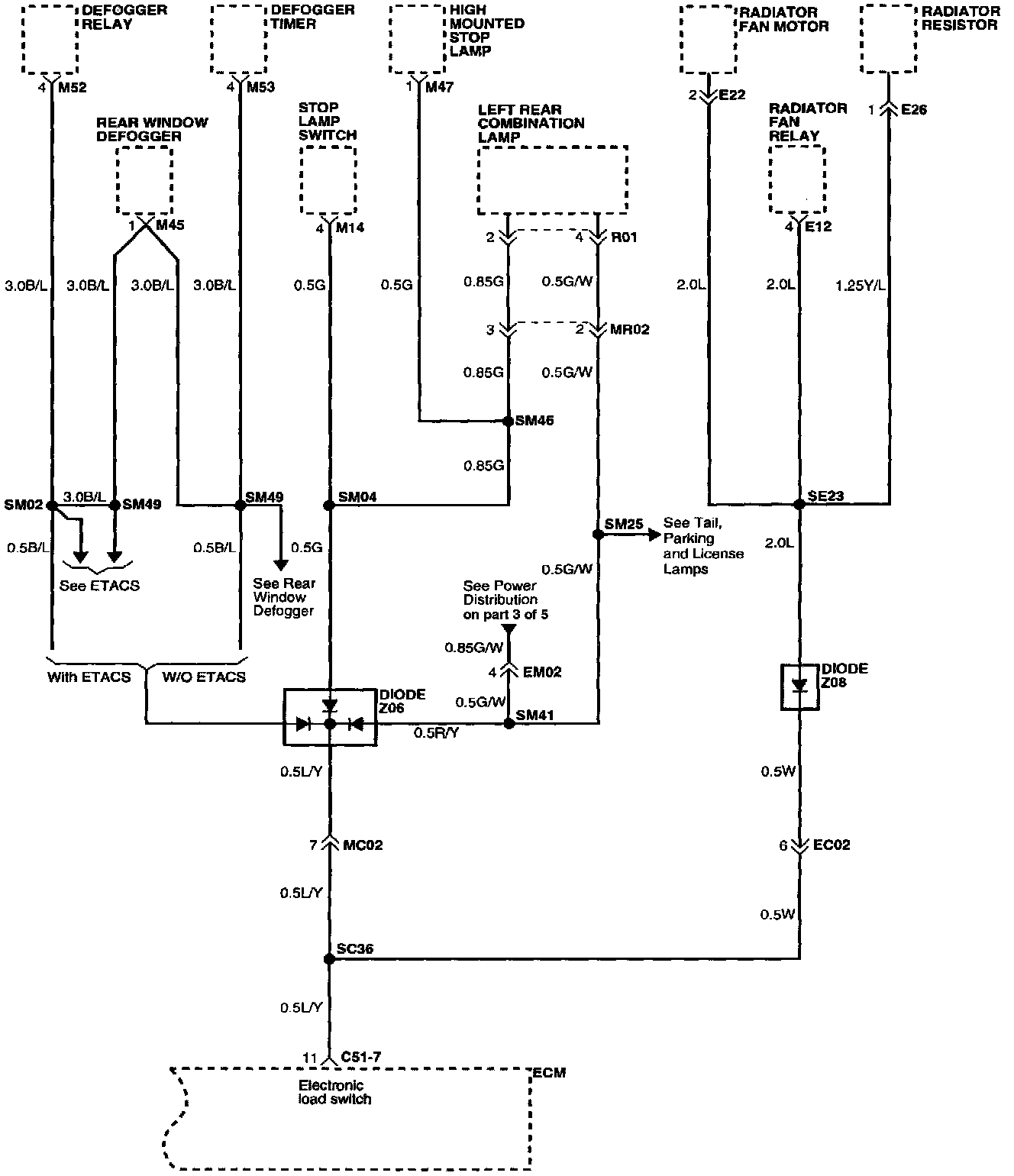

Engine Control System (Part 7 Of 7):

(Part 7 Of 7)
Defogger Relay
Defogger Timer
ECM
High Mounted Stop Lamp
Left Rear Combination Lamp
Radiator Fan Motor
Radiator Fan Relay
Radiator Resistor
Rear Window Defogger
Stop Lamp Switch

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of Powertrain Management.
Locations
