Cross-Member
>>
Rear
Rear
SERVICE SPECIFICATIONS

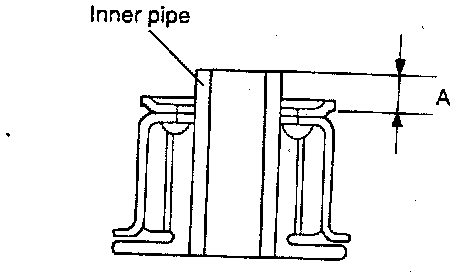

Inner Pipe Projection:
Standard Value (A): 8.5 - 9.5 mm (0.33 - 0.37 inch)

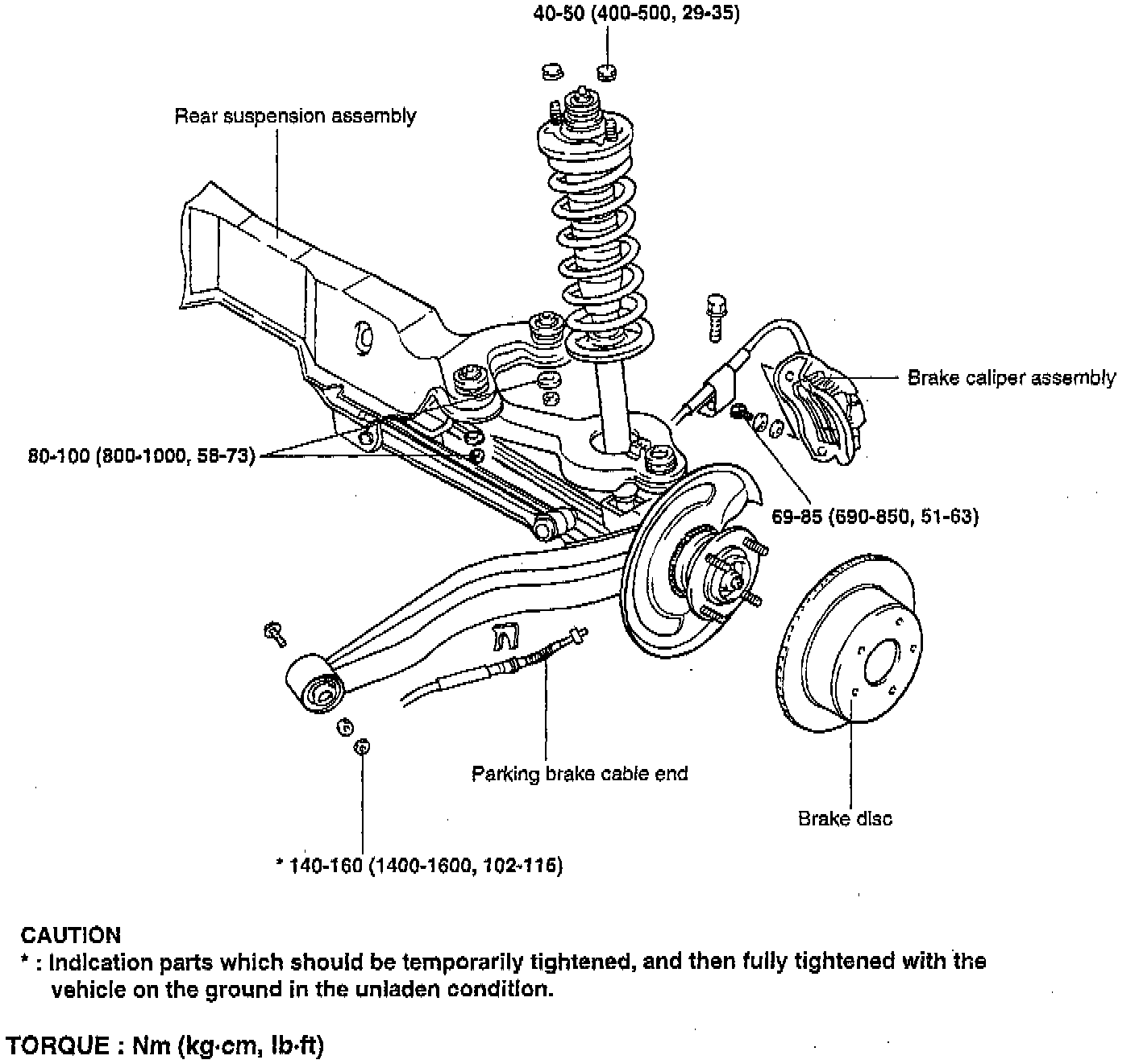

TORQUE SPECIFICATIONS
