Output Shaft

OUTPUT SHAFT

Components





Disassembly

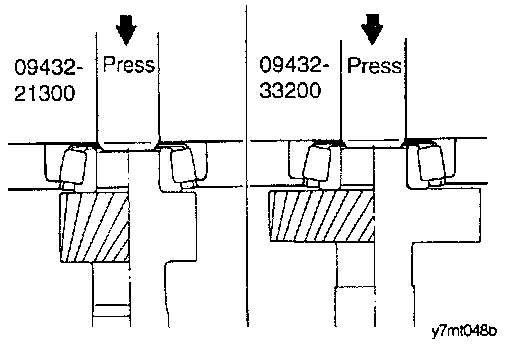

Remove the tapered roller bearing using the special tools (09432-21300, 09432-33200).

CAUTION: Do not reuse the bearing removed from the shaft.

Reassembly





Install the tapered roller bearing using the special tool (09452-21200).

CAUTION: When installing the bearing, push on the inner race only.
