Electrical Diagrams

Power Windows (Part 1 Of 3):

(Part 1 Of 3)
Engine Compartment Relay And Fuse Box
Passenger Compartment Relay Box

Power Windows (Part 2 Of 3):

(Part 2 Of 3)
Left Front Power Window Motor
Power Window Main Switch
Right Front Power Window Switch
Right Front Power Window Motor

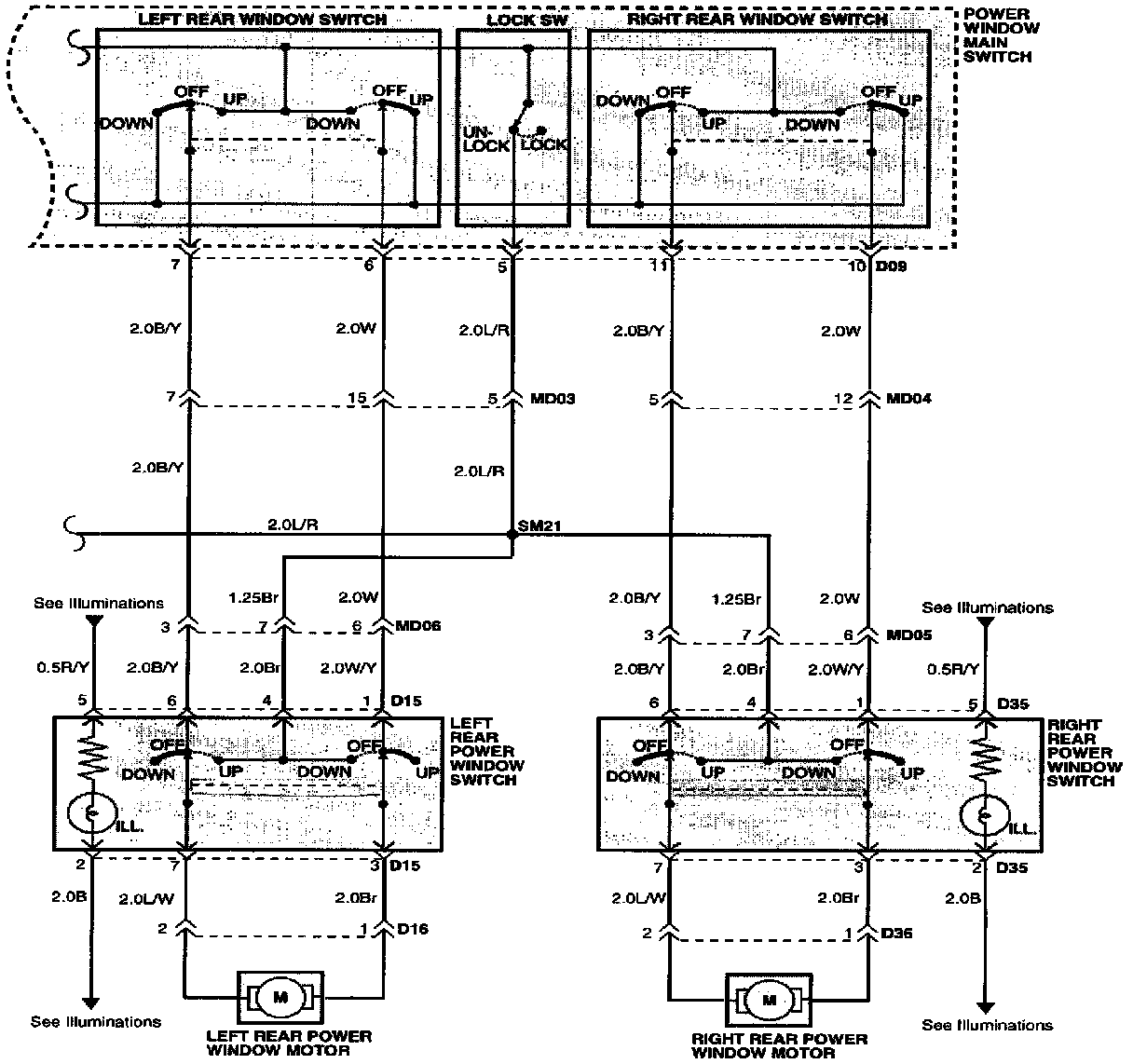

Power Windows (Part 3 Of 3):

(Part 3 Of 3)
Left Rear Power Window Motor
Power Window Main Switch
Right Rear Power Window Motor
Right Rear Power Window Switch

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of Power Windows.
Locations
