Fuse Block

Dash Fuse Box Details (Part 1 Of 8):

(Part 1 Of 8)
A/T Shift Lever
Dash Fuse Box
Fog Lamp Relay
Ignition Key Lock Solenoid
Stop Lamp Switch
Sunroof Relay

Dash Fuse Box Details (Part 2 Of 8):

(Part 2 Of 8)
Audio
Dash Fuse Box
ECM
ETACM
TCM
Power Antenna

Dash Fuse Box Details (Part 3 Of 8):

(Part 3 Of 8)
A/C Control Module
Dash Fuse Box
Digital Clock
Ignition Key & Door Warning Switch
Instrument Cluster
Left Door Lamp
MAP Lamps
Overhead Console Lamps
Right Door Lamp
Room Lamp
Trunk Room Lamp

Dash Fuse Box Details (Part 4 Of 8):

(Part 4 Of 8)
ABS Relay Box
ABS Control Module
ABS Control Module
Backup Lamp Switch
Dash Fuse Box
Digital Clock
ETACM
Hazard Switch
Instrument Cluster
Pre-excitation Resistor
SRS Control Module
Seat Belt Timer
Shift And Control Module
Transaxle Range Switch

Dash Fuse Box Details (Part 5 Of 8):

(Part 5 Of 8)
Dash Fuse Box
Data Link Connector
Door Key Ill.
Door Lock Control Relay
Defogger Timer
Defogger Relay
Power Seat Adjuster Switch
Trunk Lid Opener Switch

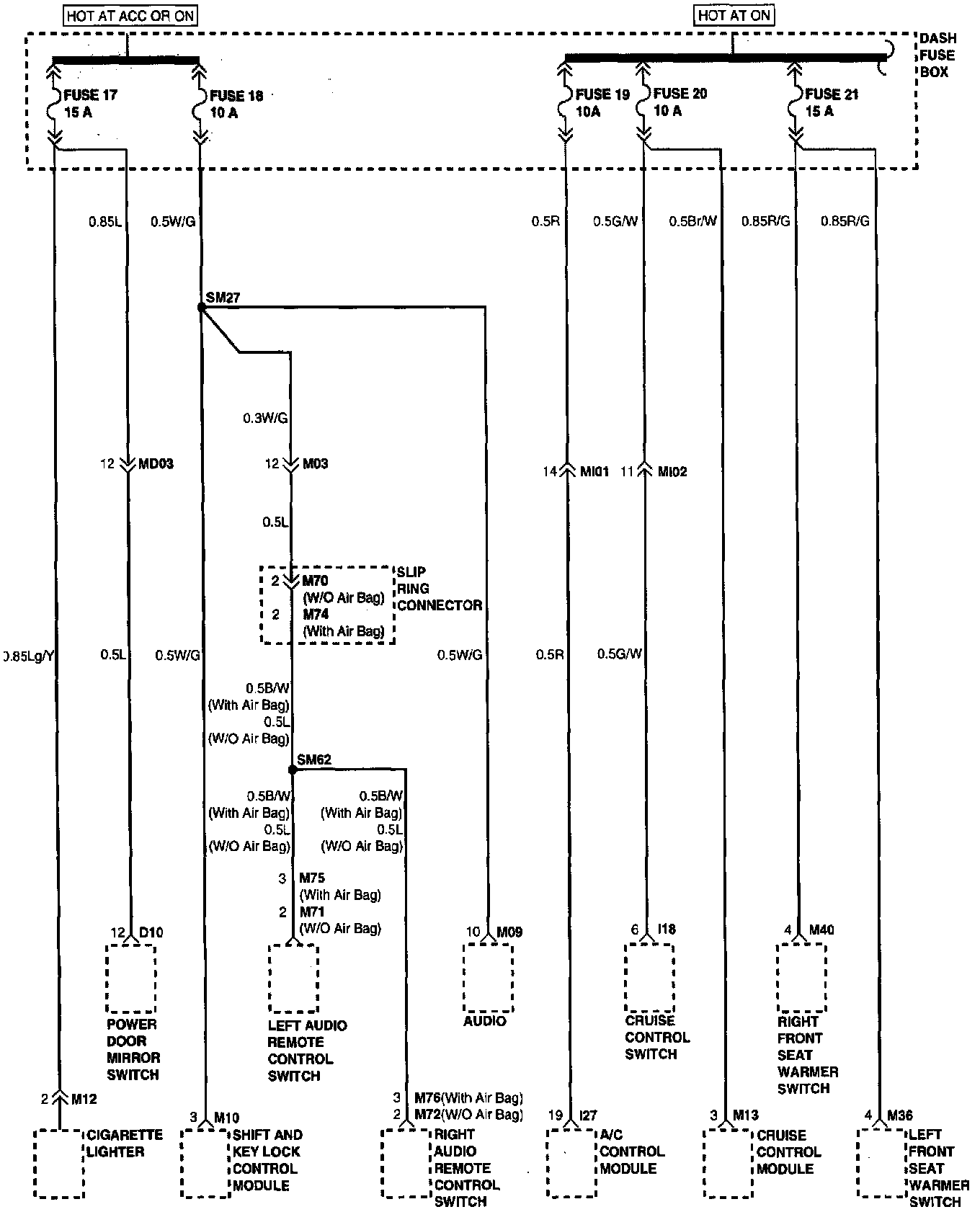

Dash Fuse Box Details (Part 6 Of 8):

(Part 6 Of 8)
Audio
A/C Control Module
Cigarette Lighter
Cruise Control Switch
Cruise Control Module
Dash Fuse Box
Left Audio Remote Control Switch
Left Front Seat Warmer Switch
Power Door Mirror Switch
Right Audio Remote Control Switch
Right Front Seat Warmer Switch
Shift And Key Lock Control Module

Dash Fuse Box Details (Part 7 Of 8):

(Part 7 Of 8)
A/T Shift Lever
Blower Relay
Dash Fuse Box
Fresh/Recirc Switch & Heater Control Panel ILL.
Front Fog Lamp Switch
Power/Normal Switch
Power Window Relay
Sunroof Relay
Transaxle Range Switch
TCM
Fog Lamp Relay

Dash Fuse Box Details (Part 8 Of 8):

(Part 8 Of 8)
Condenser Fan Relay (LOW)
Condenser Fan Relay (HIGH)
Dash Fuse Box
ETACM
Head Lamp Relay (LOW)
Head Lamp Relay (HIGH)
Intermittent Wiper Timer
Radiator Fan Relay (LOW)
Radiator Fan Relay (HIGH)
Wiper Motor Relay
Wiper Motor
Washer Motor



Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of The Fuse Block.
Locations
