Control Harness

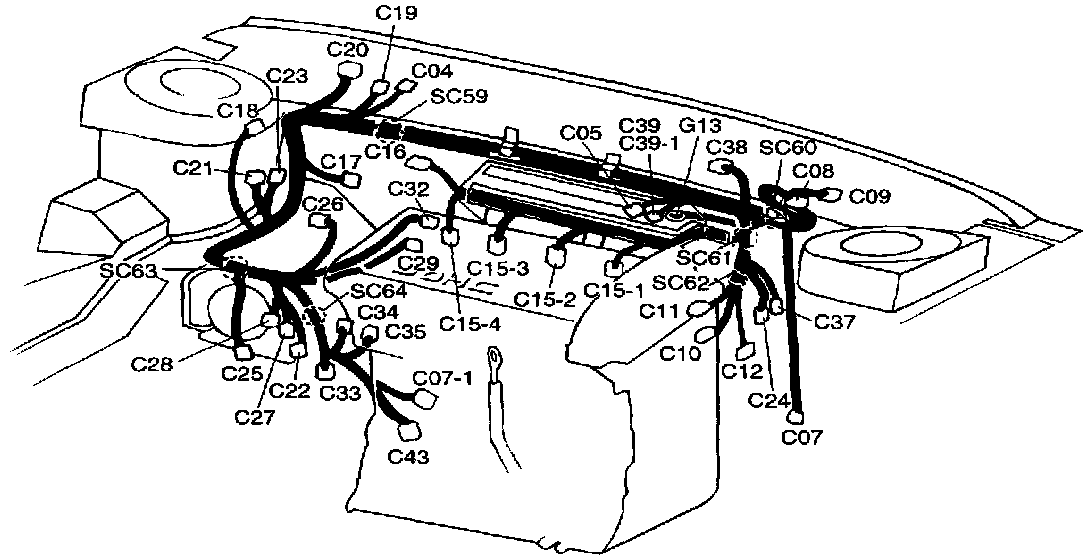

Harness Layout

C01-4 ECM
C01-5 ECM
C01-6 ECM
C01-7 ECM
C02 Engine control relay
C03 Cooling control module
C04 Pre-excitation resistor
C05 EGR temperature solenoid
C07 Front oxygen sensor (Except California area)
C07-1 Front oxygen sensor (California area)
C08 A/C pressure switch (Low)
C09 Wiper motor
C10 Ignition power transistor
C11 Ignition coil
C12 A/C compressor
C15-1 Injector #1
C15-2 Injector #2
C15-3 Injector #3
C15-4 Injector #4
C16 Throttle position sensor
C17 Brake fluid level sensor
C18 Cruise control actuator
C19 Fuel pump checker
C20 Ignition control adjusting connector
C21 Kick down servo switch
C22 Oil temperature sensor
C23 Pulse generator
C24 Crankshaft position sensor
C25 Back up lamp switch
C26 Volume air flow sensor
C27 Transaxle range switch
C28 Transaxle valve body
C29 Vehicle speed sensor
C32 Idle speed control motor
C33 Thermo sensor (115 °C)
C34 Engine coolant temperature sender
C35 Engine coolant temperature sensor
C37 Camshaft position sensor
C38 Manifold differential pressure sensor
C39 Purge solenoid (Except California area)
C39-1 Purge solenoid (California area)
C40-1 TCM
C40-2 TCM
C43 Rear oxygen sensor (California area)
EC01 Connection with ENGINE harness
ECM GROUND G11
TCM GROUND G12
Dash GROUND G13
MC01 Connection with MAIN harness
MC02 Connection with MAIN harness
MC03 Connection with MAIN harness
