Electrical Diagrams
System Schematic�VvDƇvD�vD:
(California Area)
P wD�OwD�swD:
(Except California Area)

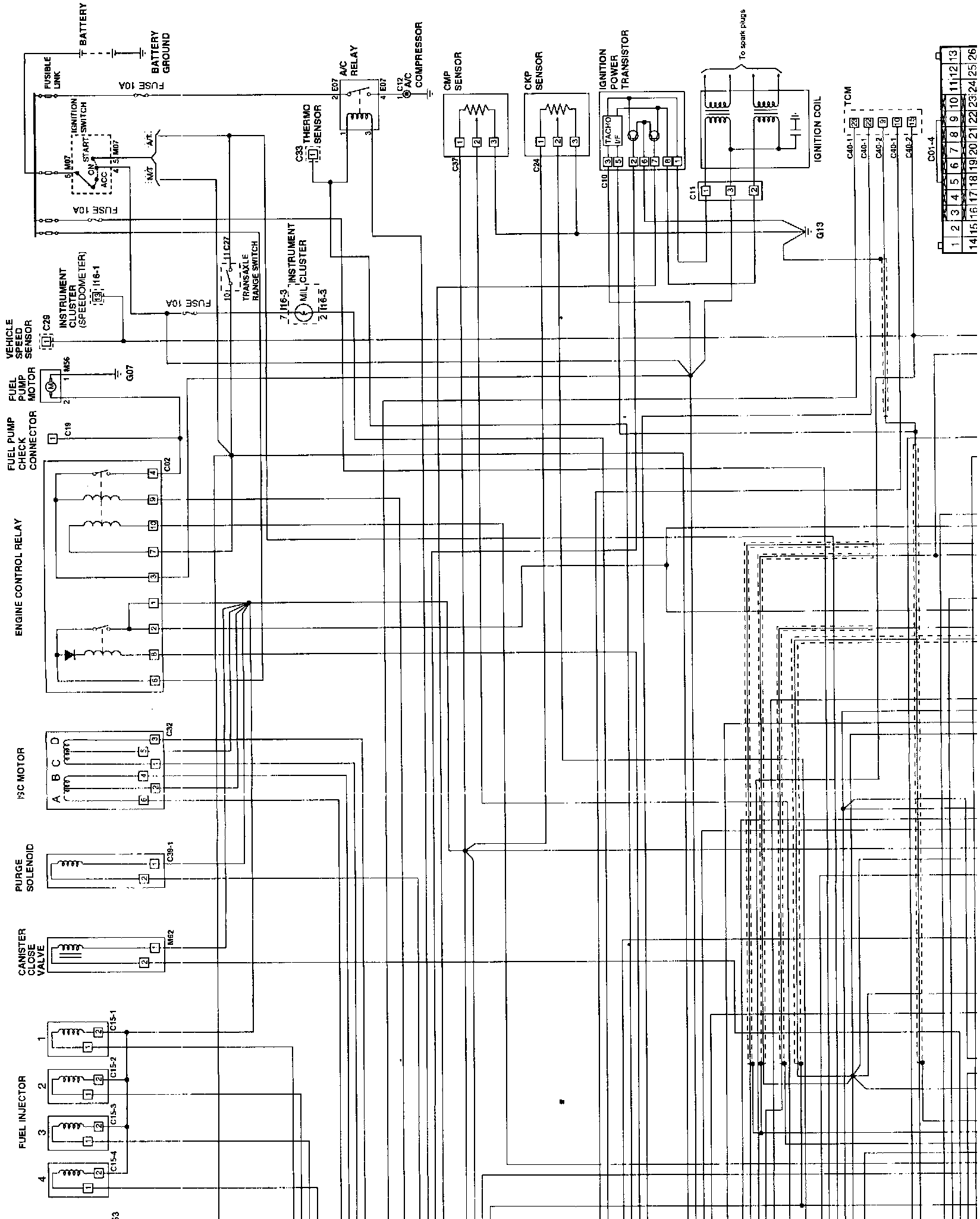

Wiring Diagram

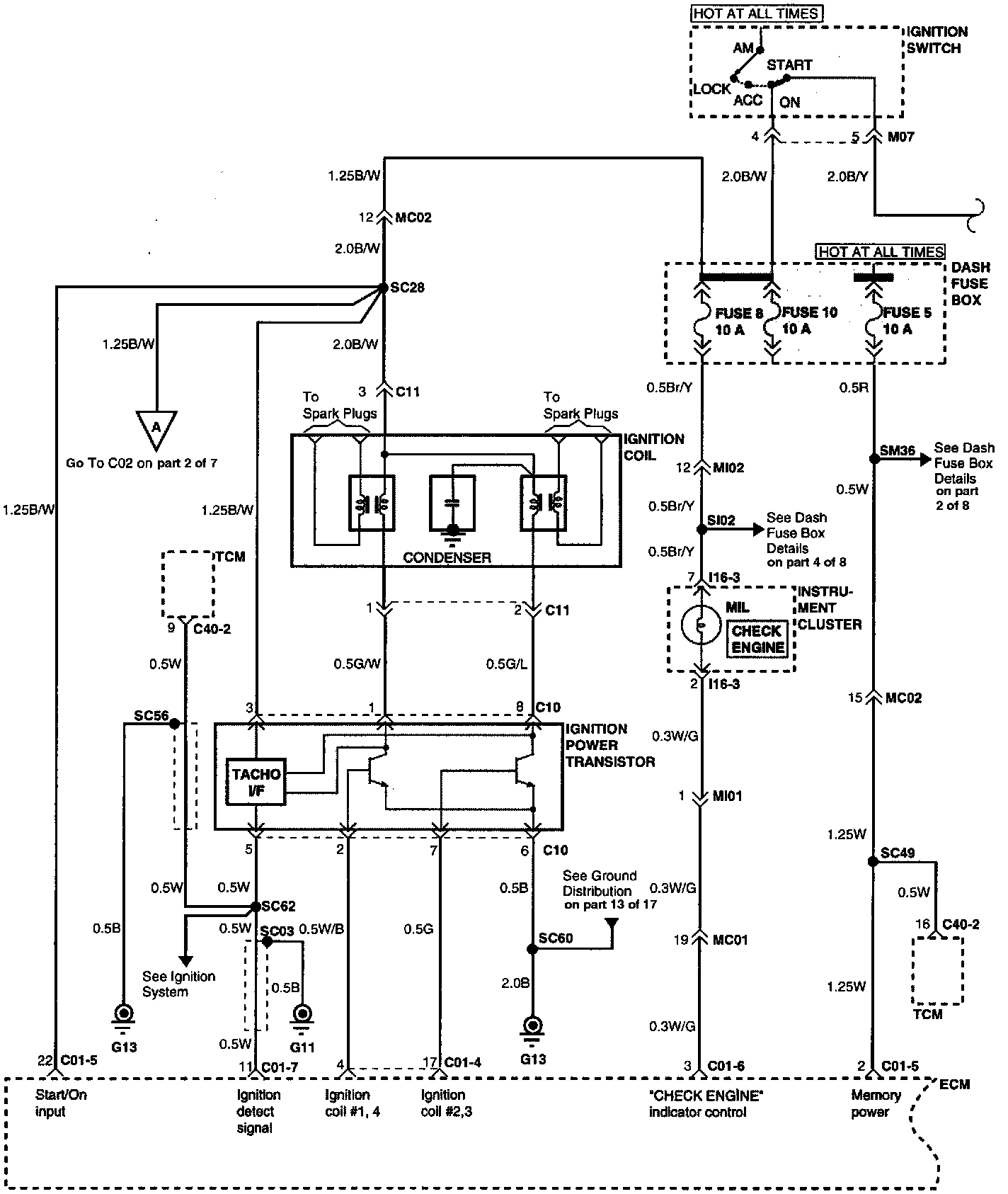

Engine Control System (Part 1 Of 7):
(Part 1 Of 7)
Dash Fuse Box
ECM
Instrument Cluster
Ignition Switch
Ignition Coil
Ignition Power Transistor

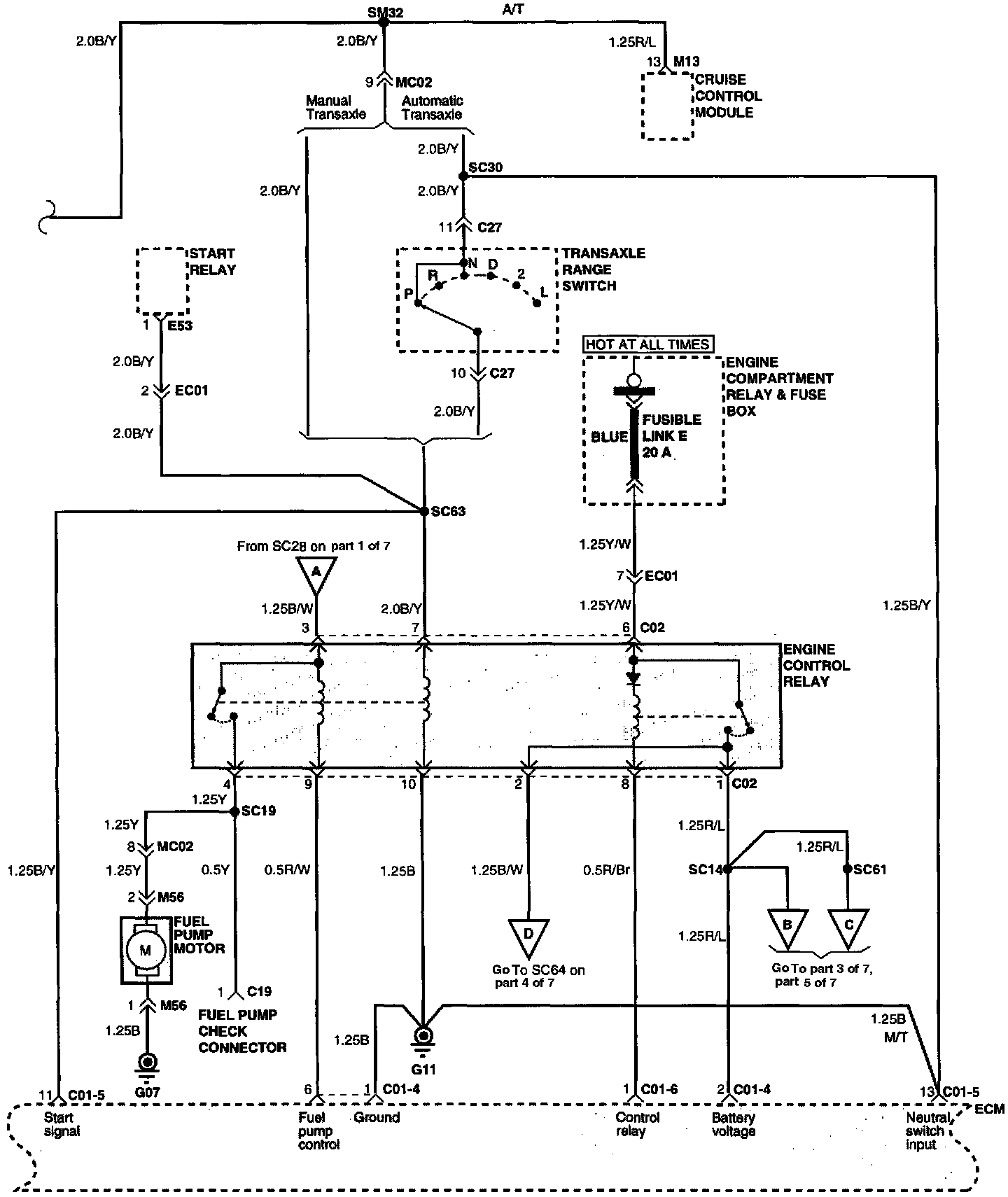

Engine Control System (Part 2 Of 7):
(Part 2 Of 7)
Cruise Control Module
Engine Compartment Relay And Fuse Box
Engine Control Relay
ECM
Fuel Pump Motor
Fuel Pump Check Connector
Start Relay
Transaxle Range Switch
Engine Control System (Part 3 Of 7):
(Part 3 Of 7)
Canister Close Valve
Cruise Control Module
Data Link Connector
EGR Solenoid
ECM
Instrument Cluster
Vehicle Speed Sensor

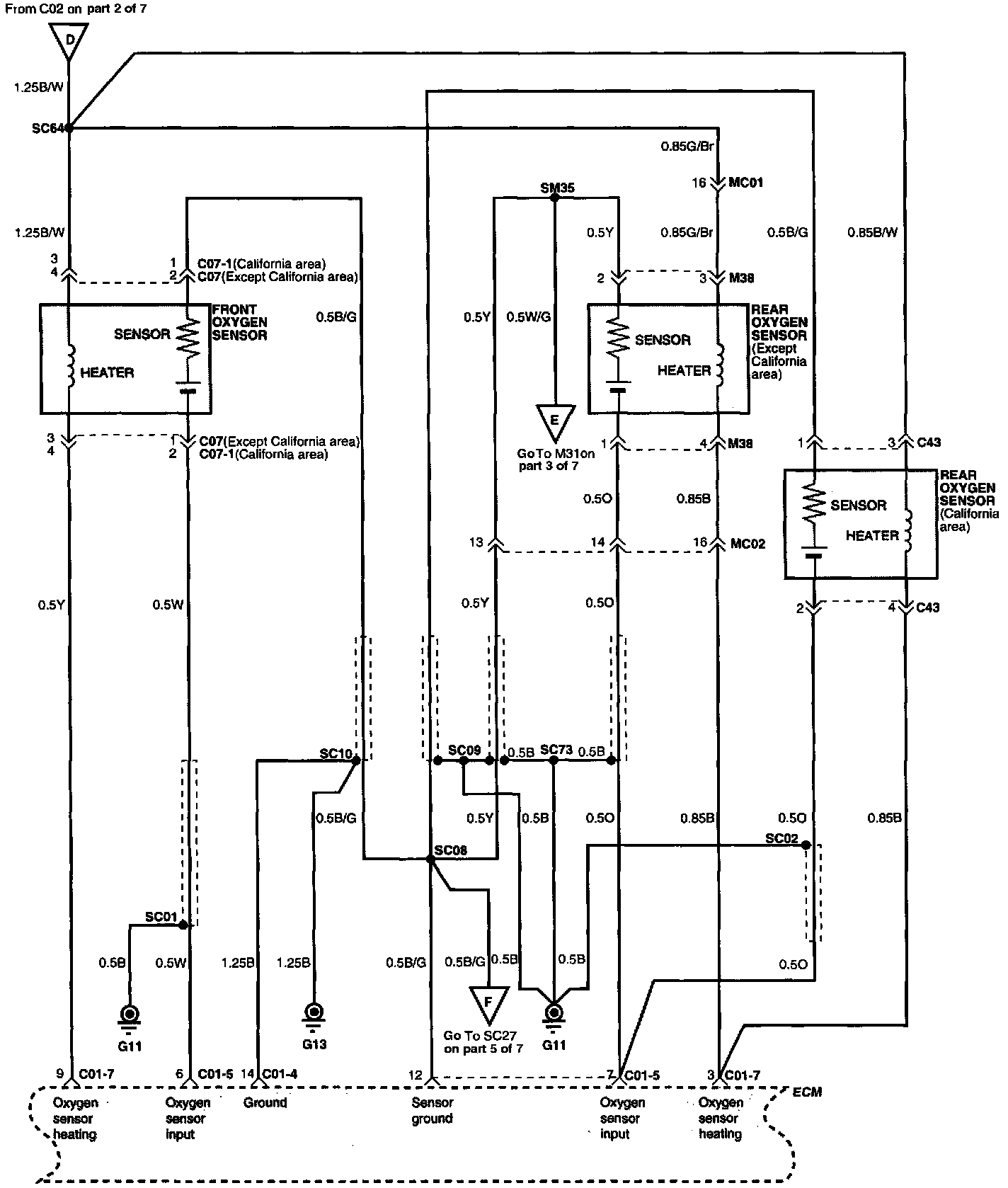

Engine Control System (Part 4 Of 7):
(Part 4 Of 7)
ECM
Front Oxygen Sensor
Rear Oxygen Sensor
Engine Control System (Part 5 Of 7):
(Part 5 Of 7)
CMP Sensor
CKP Sensor
ECM
Ignition Control Adjusting Connector
MDP Sensor
Power Steering Pressure Switch
Throttle Position Sensor
VAF Sensor
Engine Control System (Part 6 Of 7):
(Part 6 Of 7)
Engine Compartment Relay And Fuse Box
Engine Coolant Temperature Sensor

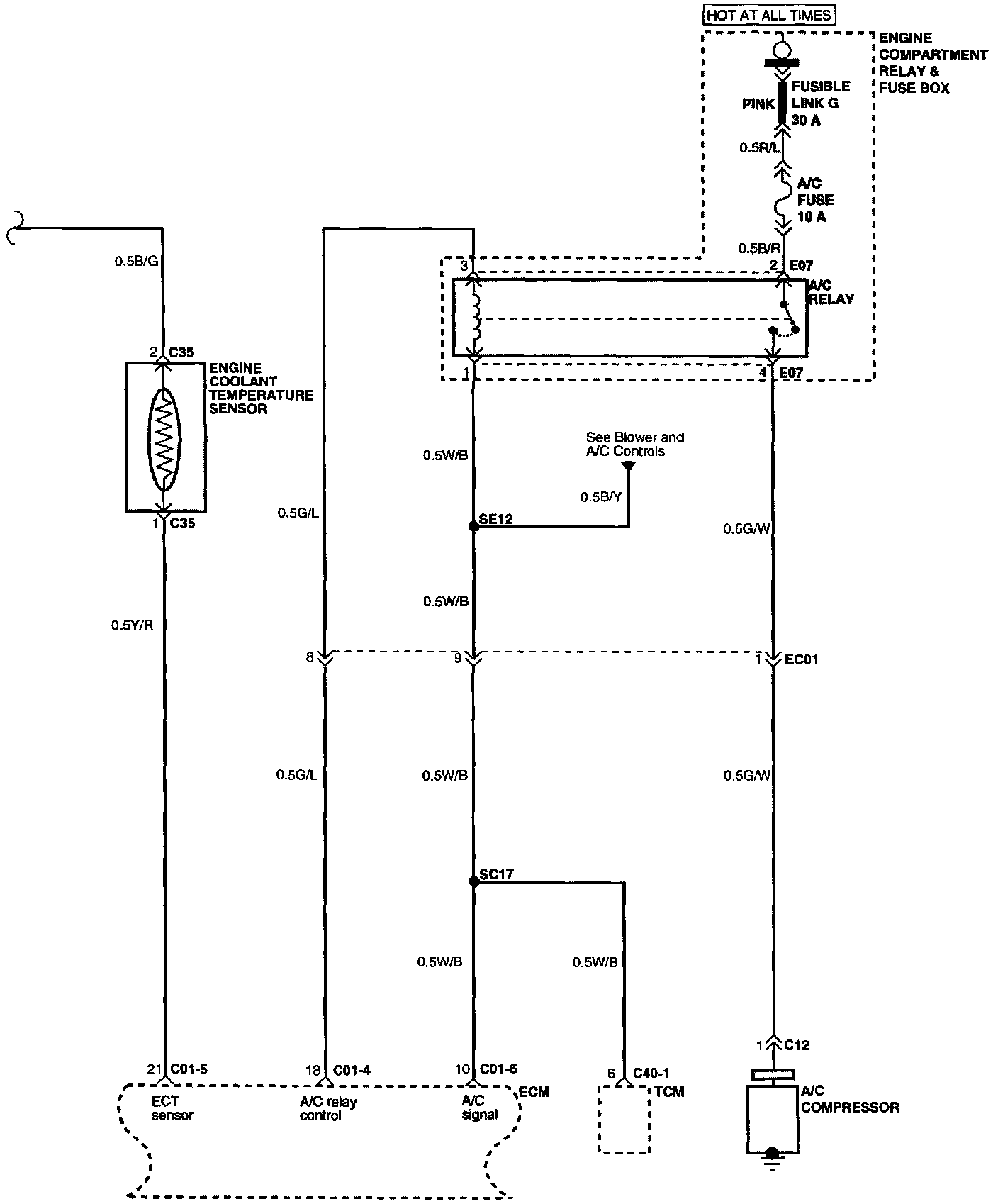

ECM A/C Compressor
Engine Control System (Part 7 Of 7):
(Part 7 Of 7)
Defogger Relay
Defogger Timer
ECM
High Mounted Stop Lamp
Left Rear Combination Lamp
Radiator Fan Motor
Radiator Fan Relay
Radiator Resistor
Rear Window Defogger
Stop Lamp Switch
Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views
Connector Locations Are Found In The Locations Section Of Powertrain Management.
Locations
