Federal & Canadian

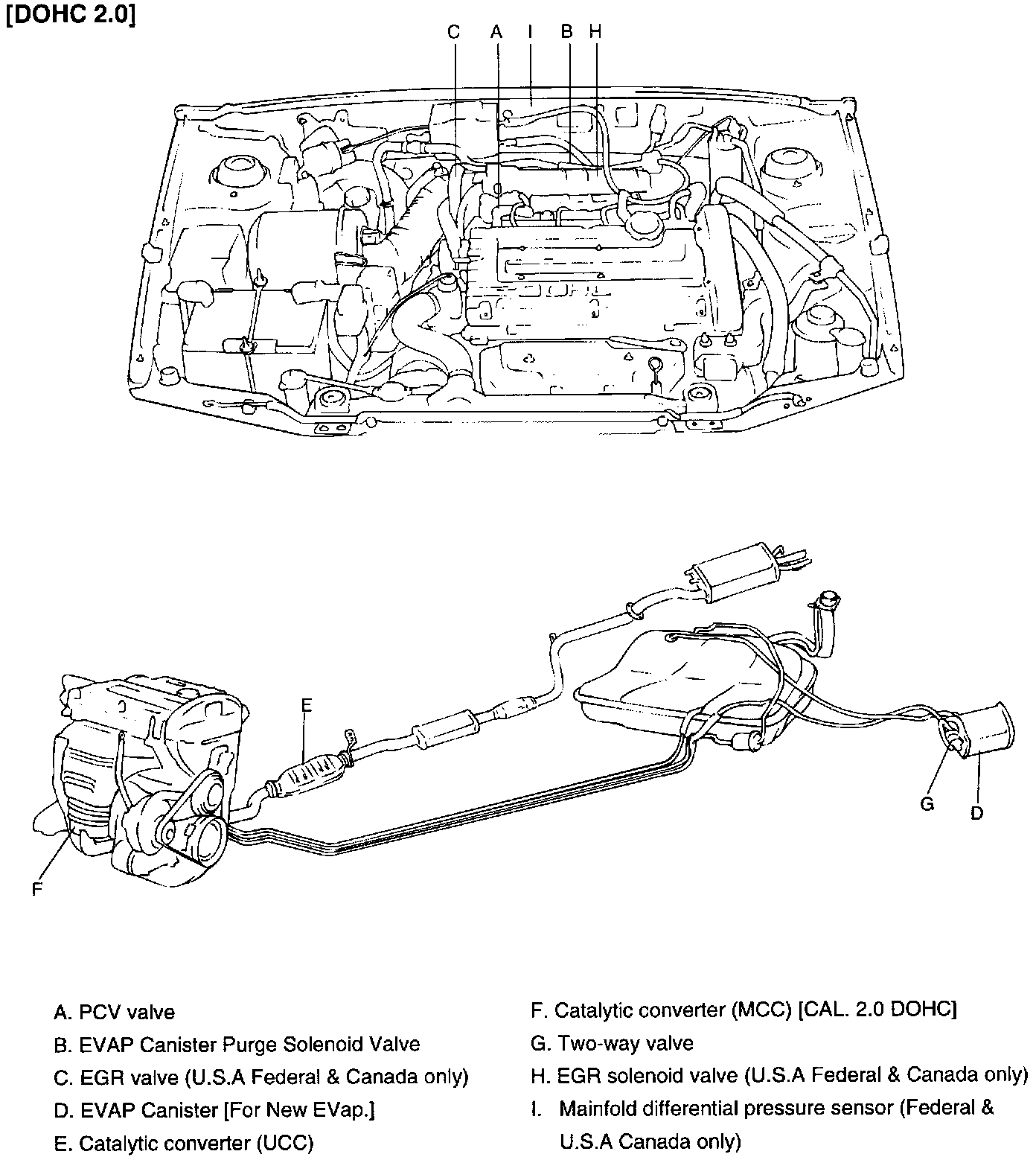

Component Locations

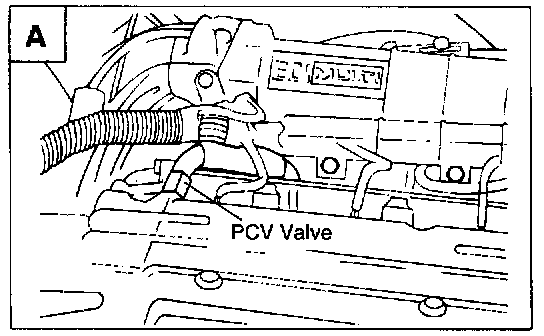

PCV Valve

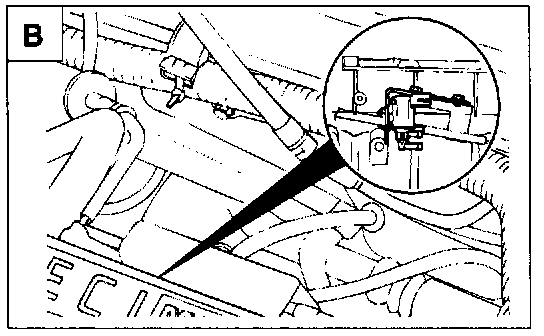

Canister Purge Solenoid Valve

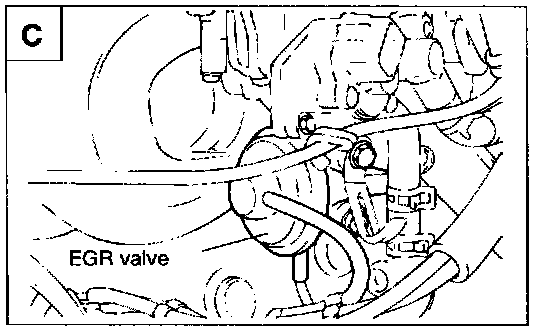

EGR Valve

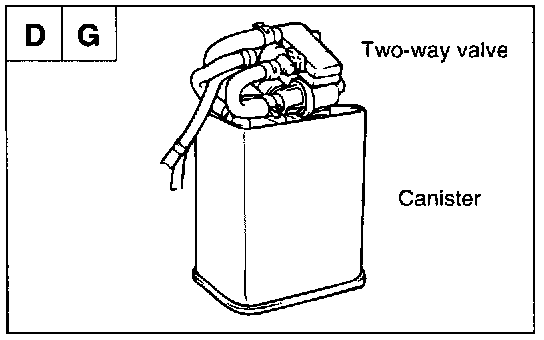

Two Way Valve / EVAP Emissions Control Canister

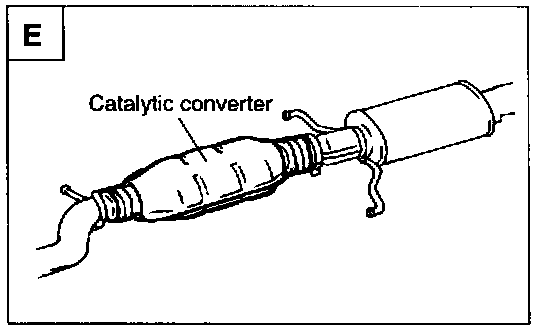

(UCC) Underfloor Catalytic Converter

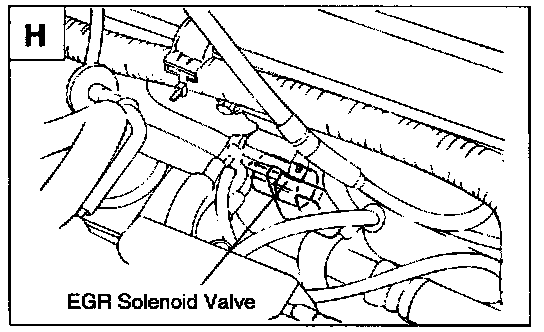

EGR Solenoid Valve

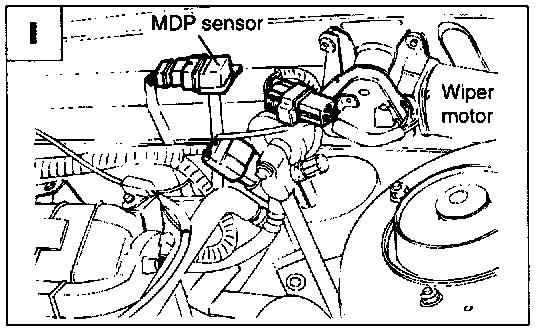

Manifold Differential Pressure Sensor
