Removal and Installation

MANUAL TRANSAXLE





Components

Removal





1. Remove the clutch release cylinder.
2. Remove the drain plug and drain out the transaxle oil.
3. Remove the air cleaner assembly.

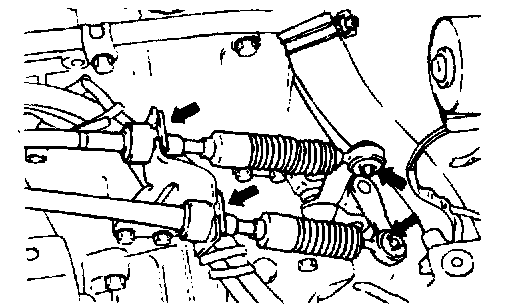

4. Remove the select cable and shift cable.





5. Remove the backup lamp switch connector.
6. Remove the speedometer cable.





7. Remove the starter motor.





8. Remove the stabilizer bar, tie rod end, lower arm ball joint, drive shaft side cover, and under cover.
9. Remove the bell housing cover.





10. Remove the cap and transaxle mounting bracket.





11. Remove the transaxle assembly.

Installation

1. For installation, reverse the removal procedure.
