Antilock Brakes / Traction Control Systems

#C OCf O�u OAnti-Lock Brake System:

Circuit Diagram

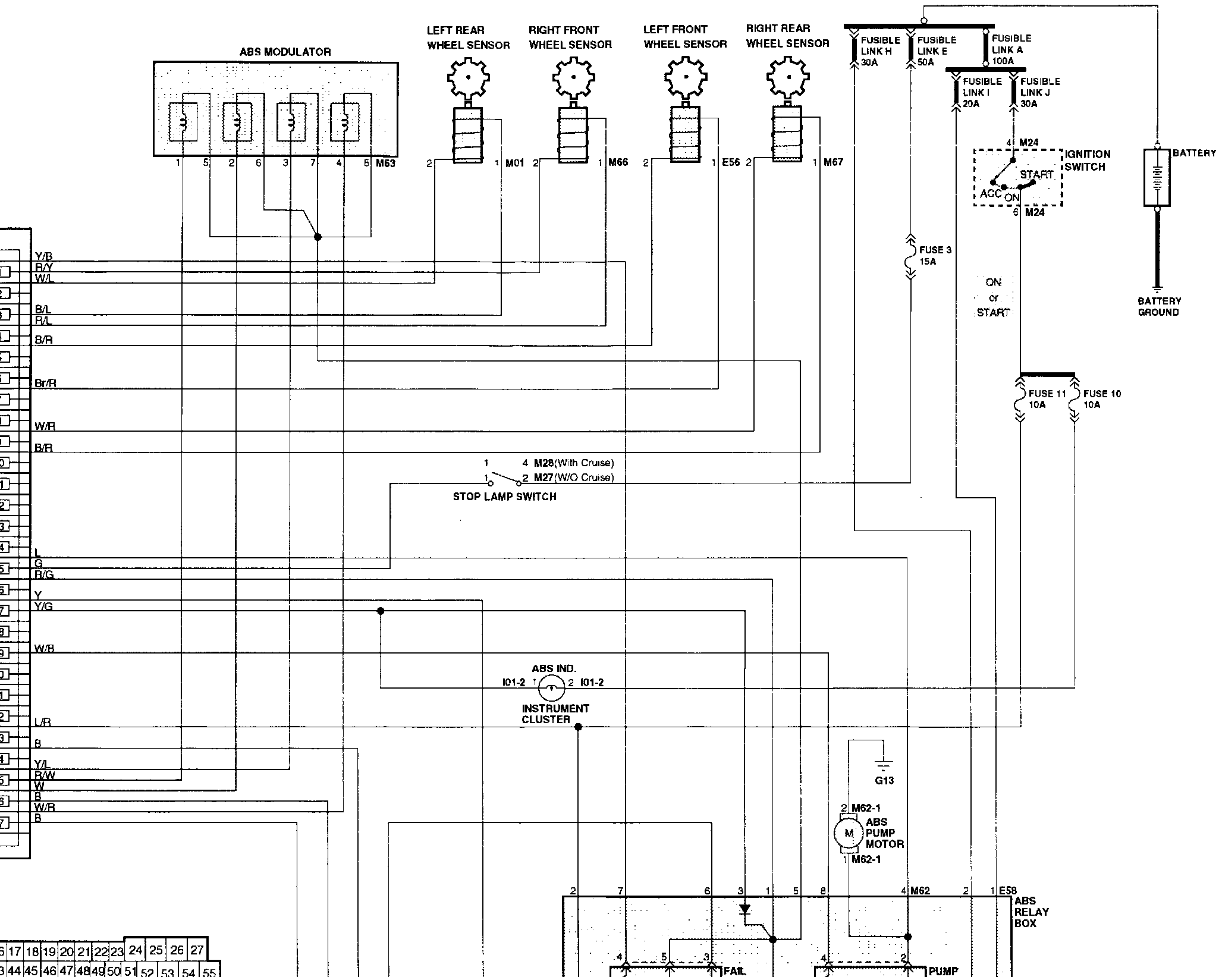

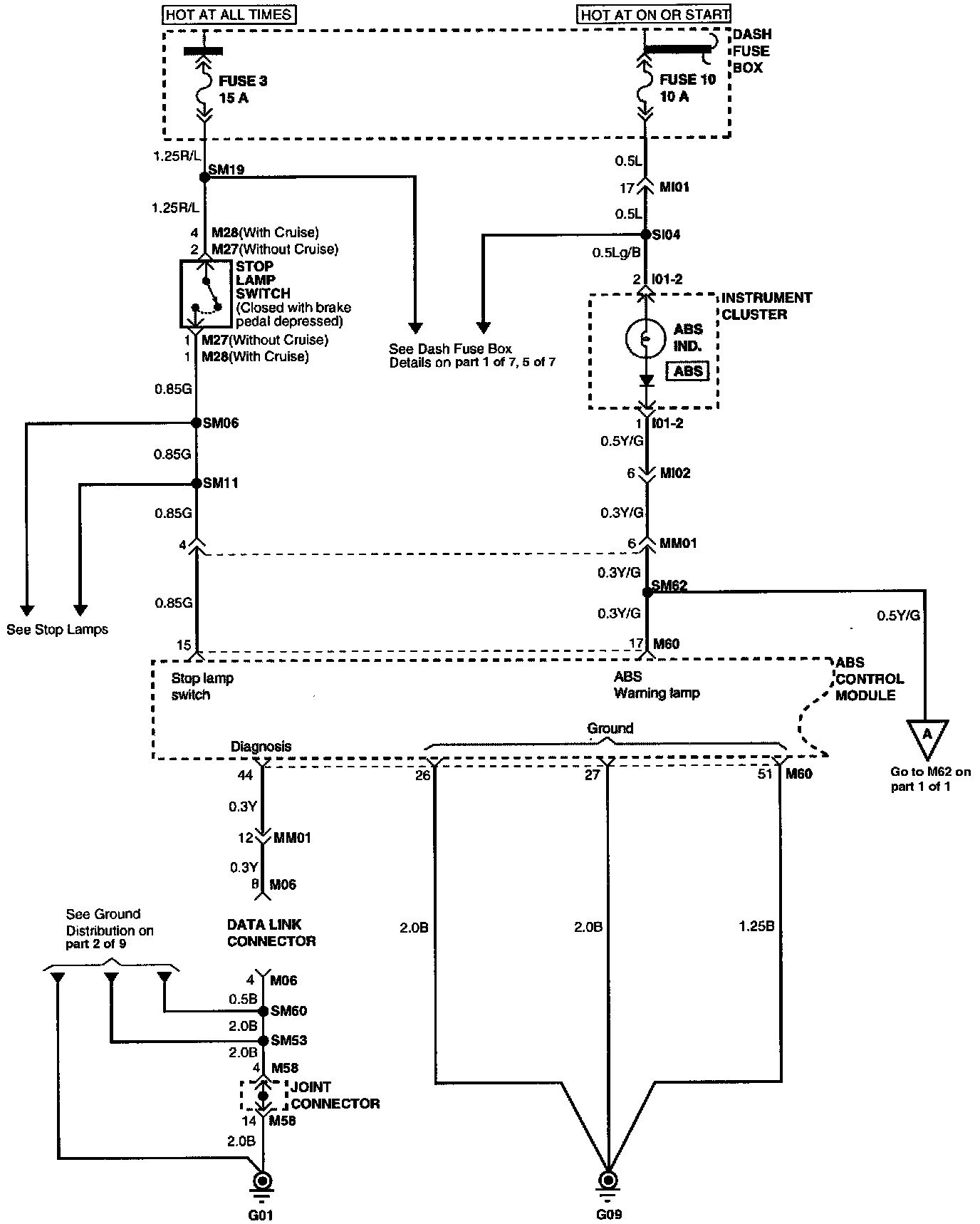

Anti-Lock Brake System (Part 1 Of 3):

(Part 1 Of 3)
ABS Control Module
Data Link Connector
Dash Fuse Box
Instrument Cluster
Joint Connector
Stop Lamp Switch

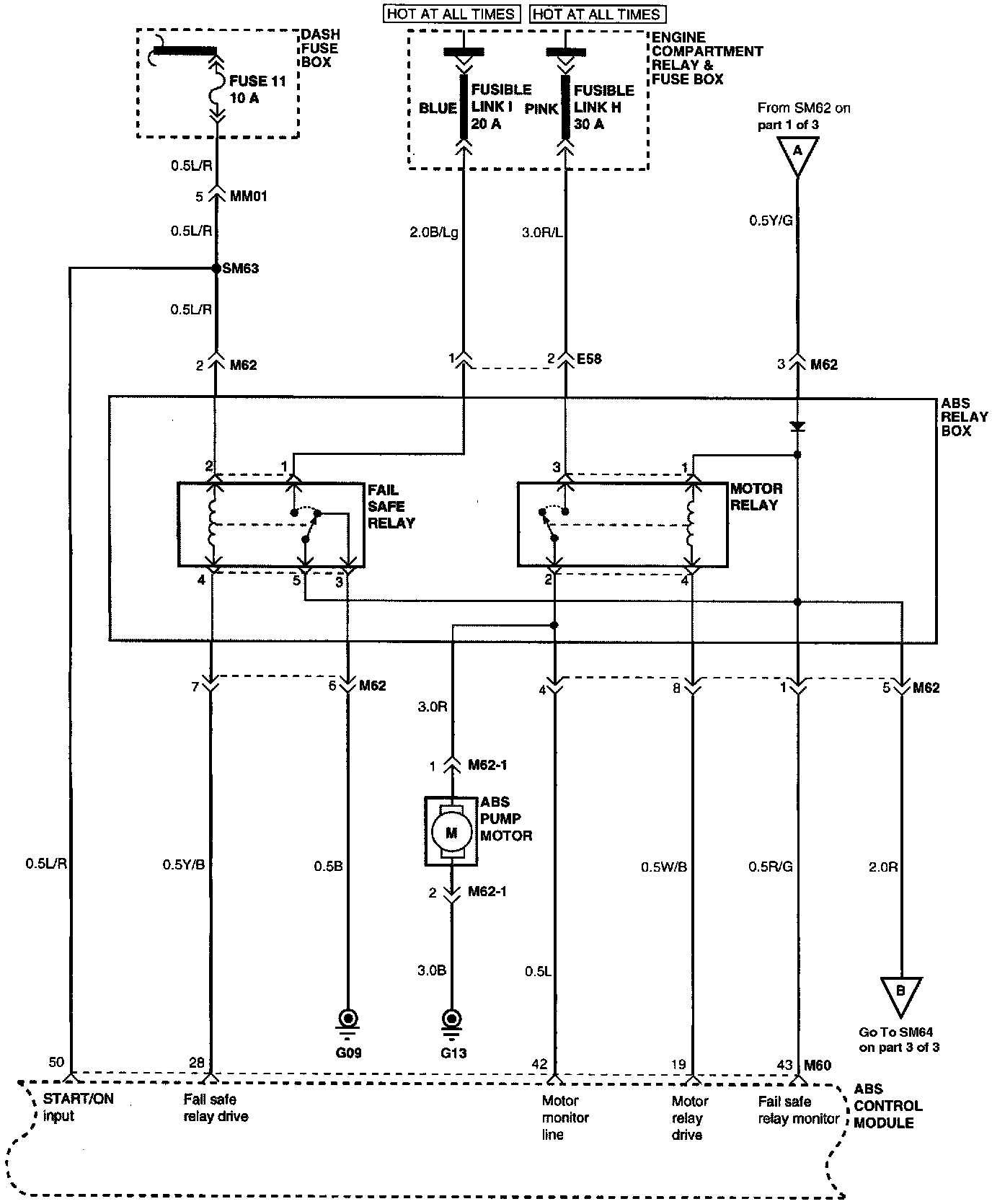

Anti-Lock Brake System (Part 2 Of 3):

(Part 2 Of 3)
ABS Pump Motor
ABS Relay Box
ABS Control Module
Dash Fuse Box
Engine Compartment Relay & Fuse Box
Fail-Safe Relay
Motor Relay

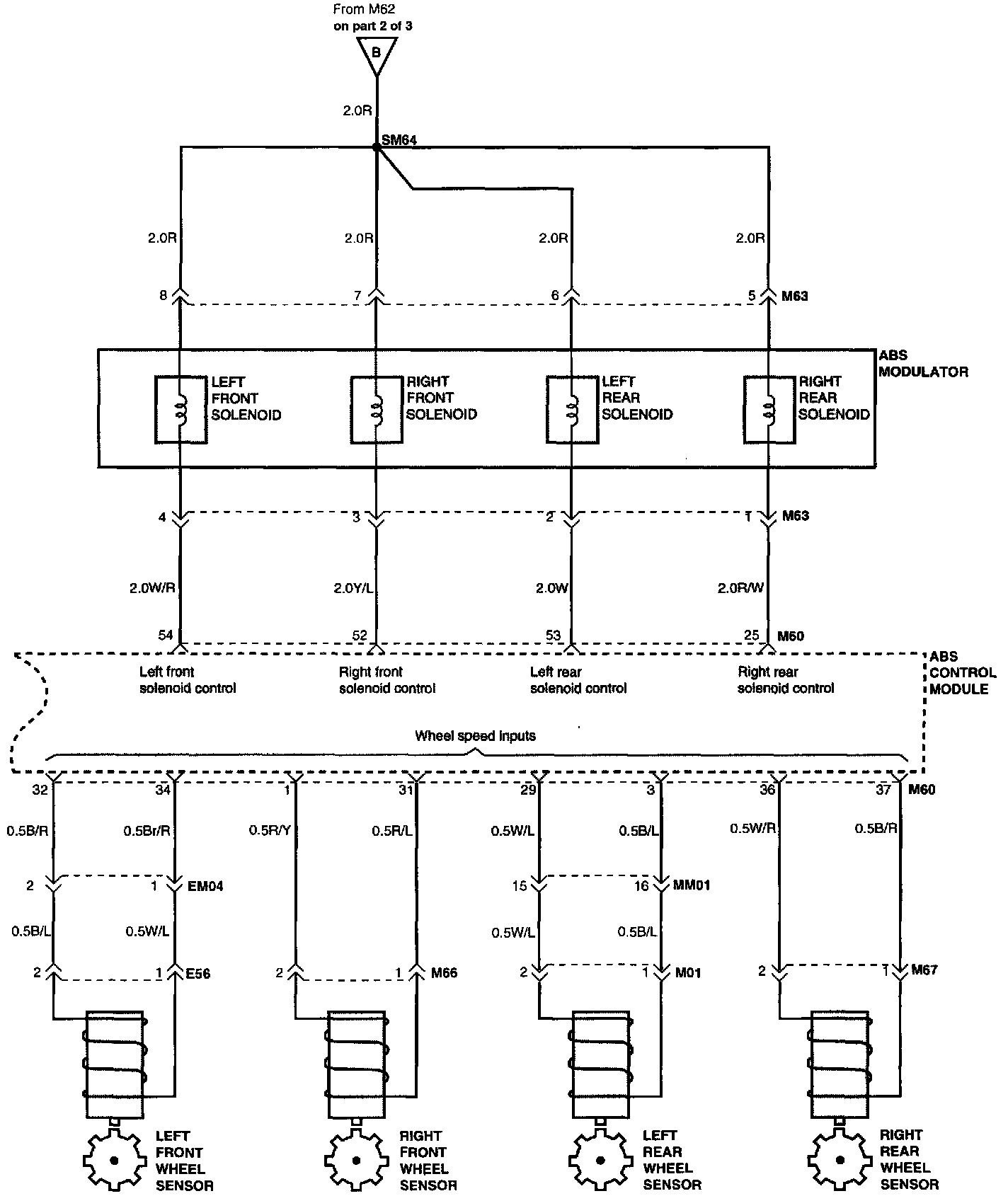

Anti-Lock Brake System (Part 3 Of 3):

(Part 3 Of 3)
ABS Modulator
ABS Control Module
Left Front Solenoid
Left Rear Solenoid
Left Front Wheel Sensor
Left Rear Wheel Sensor
Right Front Solenoid
Right Rear Solenoid
Right Front Wheel Senor
Right Rear Wheel Sensor

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of The Anti-Lock Brake System.
Locations
