Cooling System

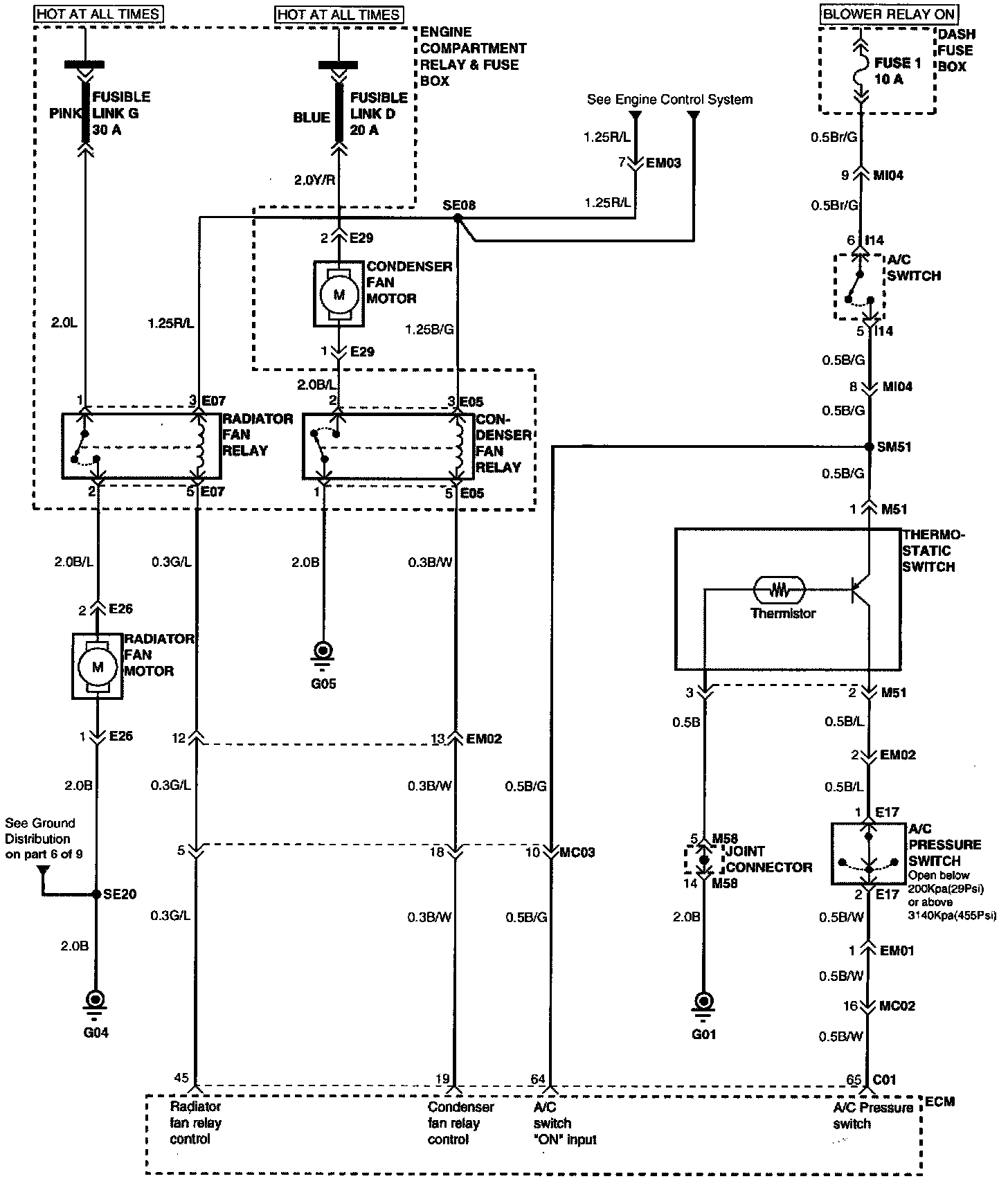

Circuit Diagrams

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of The Cooling System.
Locations
