Courtesy Lamp

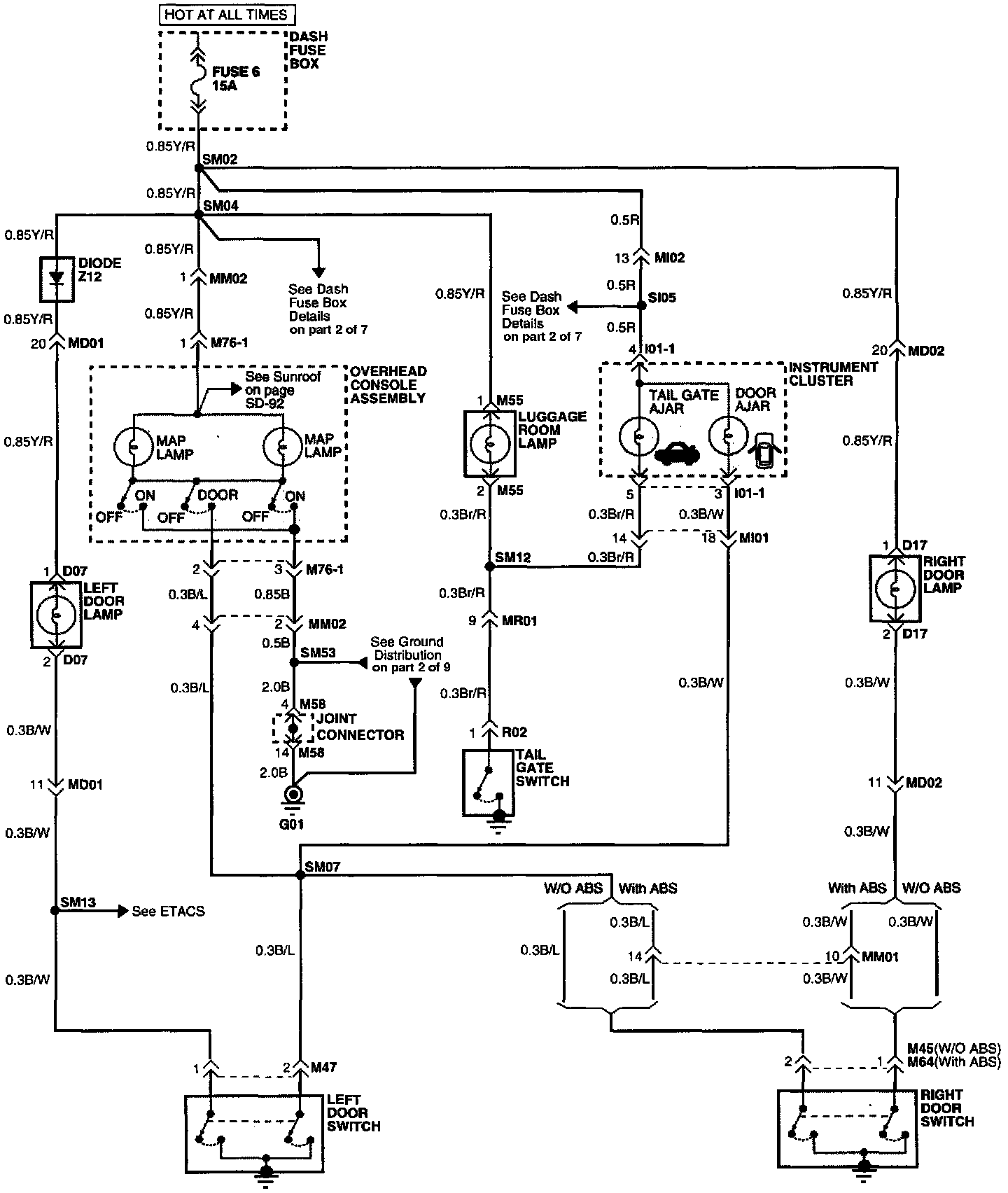

Courtesy And Luggage Room Lamp (Part 1 Of 2):
Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views
Connector Locations Are Found In The Locations Section Of The Cargo Lamp.
Locations
Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views
Connector Locations Are Found In The Locations Section Of The Cargo Lamp.
Locations
