Daytime Running Lamp

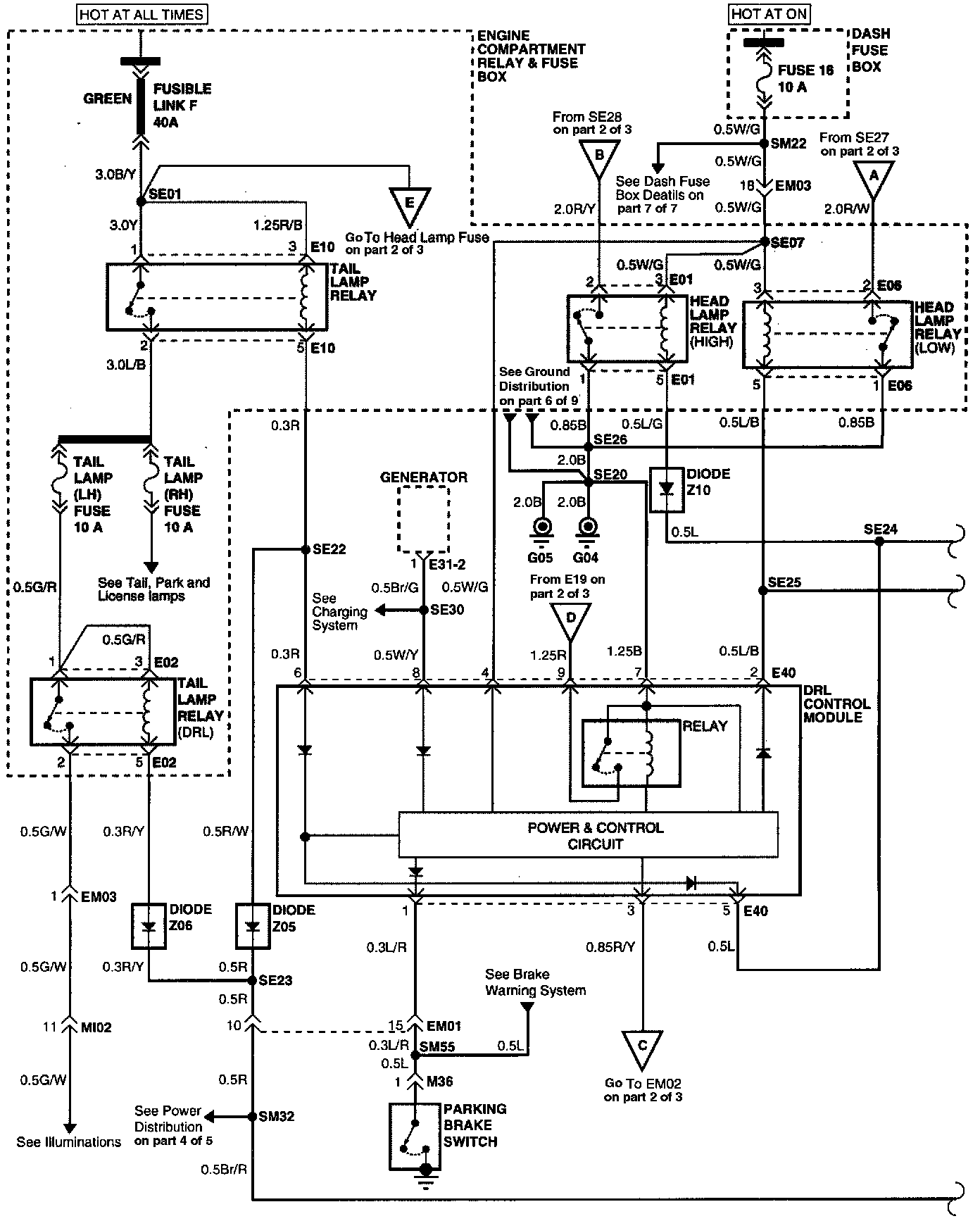

Daytime Running Lights (Part 1 Of 3):

(Part 1 Of 3)
Dash Fuse Box
DRL Control Module
Engine Compartment Relay & Fuse Box
Generator
Head Lamp Relay (High)
Head Lamp Relay (Low)
Parking Brake Switch
Tail Lamp Relay
Tail Lamp Relay (DRL)

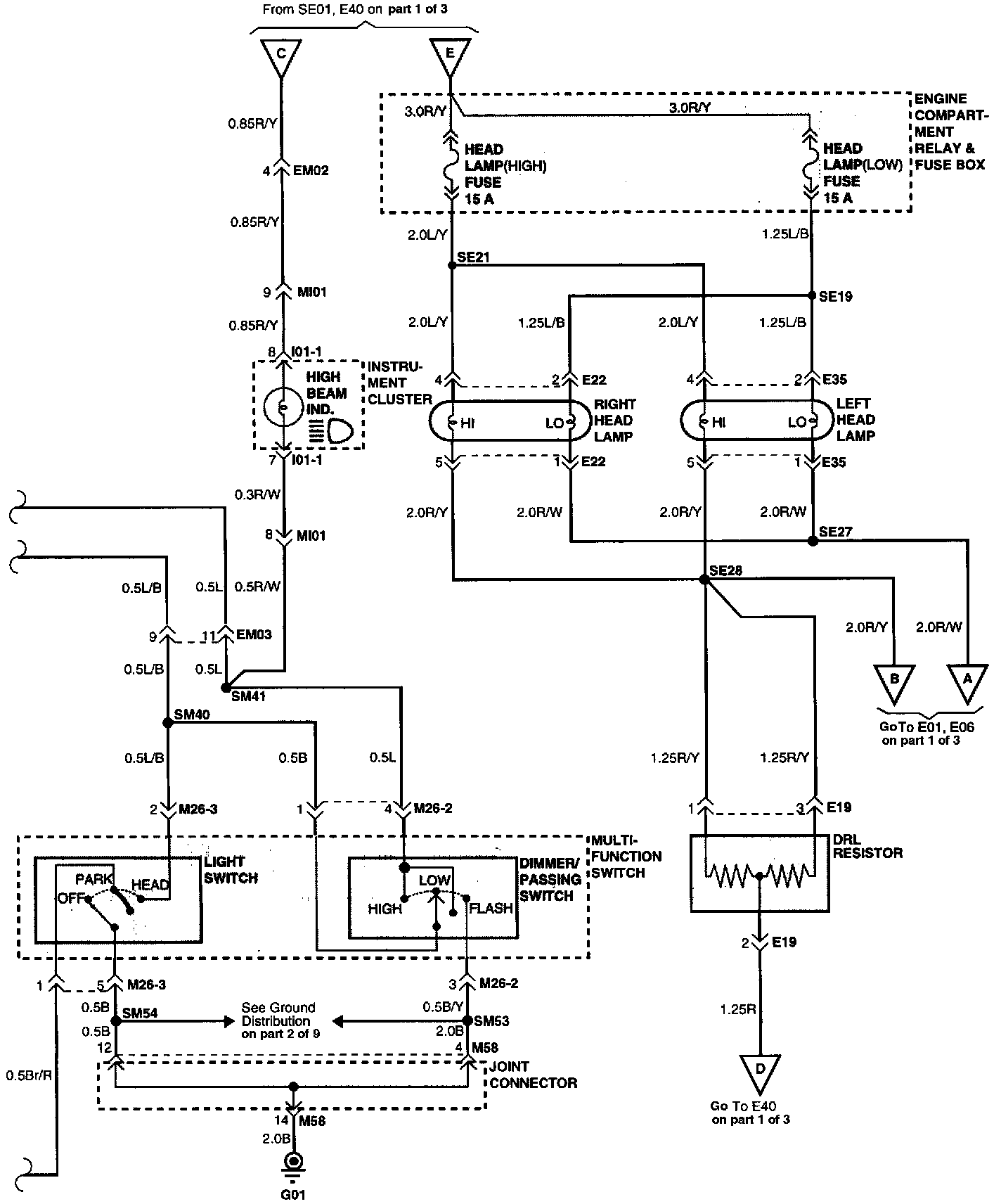

Daytime Running Lights (Part 2 Of 3):

(Part 2 Of 3)
DRL Resistor
Dimmer/Passing Switch
Engine Compartment Relay & Fuse Box
Instrument Cluster
Joint Connector
Light Switch
Multi-Function Switch

Daytime Running Lights (Part 3 Of 3):

(Part 3 Of 3)
Battery
Dimmer/Passing Switch
DRL Relay
DRL Control Module
DRL Resistor
Generator
Head Lamp Relay
Ignition Switch
Instrument Cluster
Left Head Lamp
Light Switch
Multi-Function Switch
Parking Brake Switch
Rheostat
Right Head Lamp
Tail Lamp Relay

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of The Daytime Running Lamp.
Locations
