Radio, Stereo, and Compact Disc

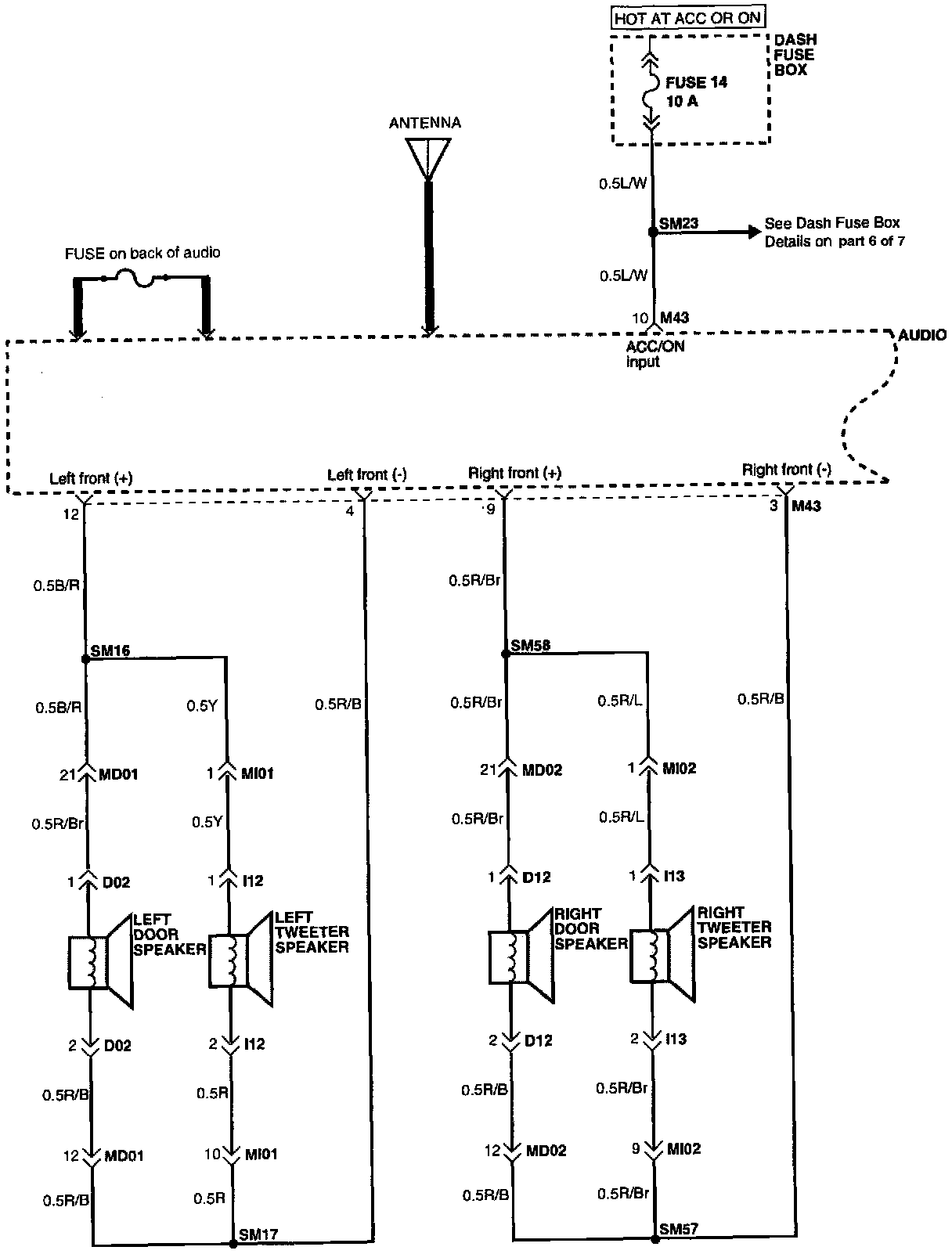

Sound System (Part 1 Of 2):
Sound System (Part 2 Of 2):
Electrical Diagrams
Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views
Connector Locations Are Found In The Locations Section Of The Amplifier, Sound Systems.
Locations
