Turn Signals

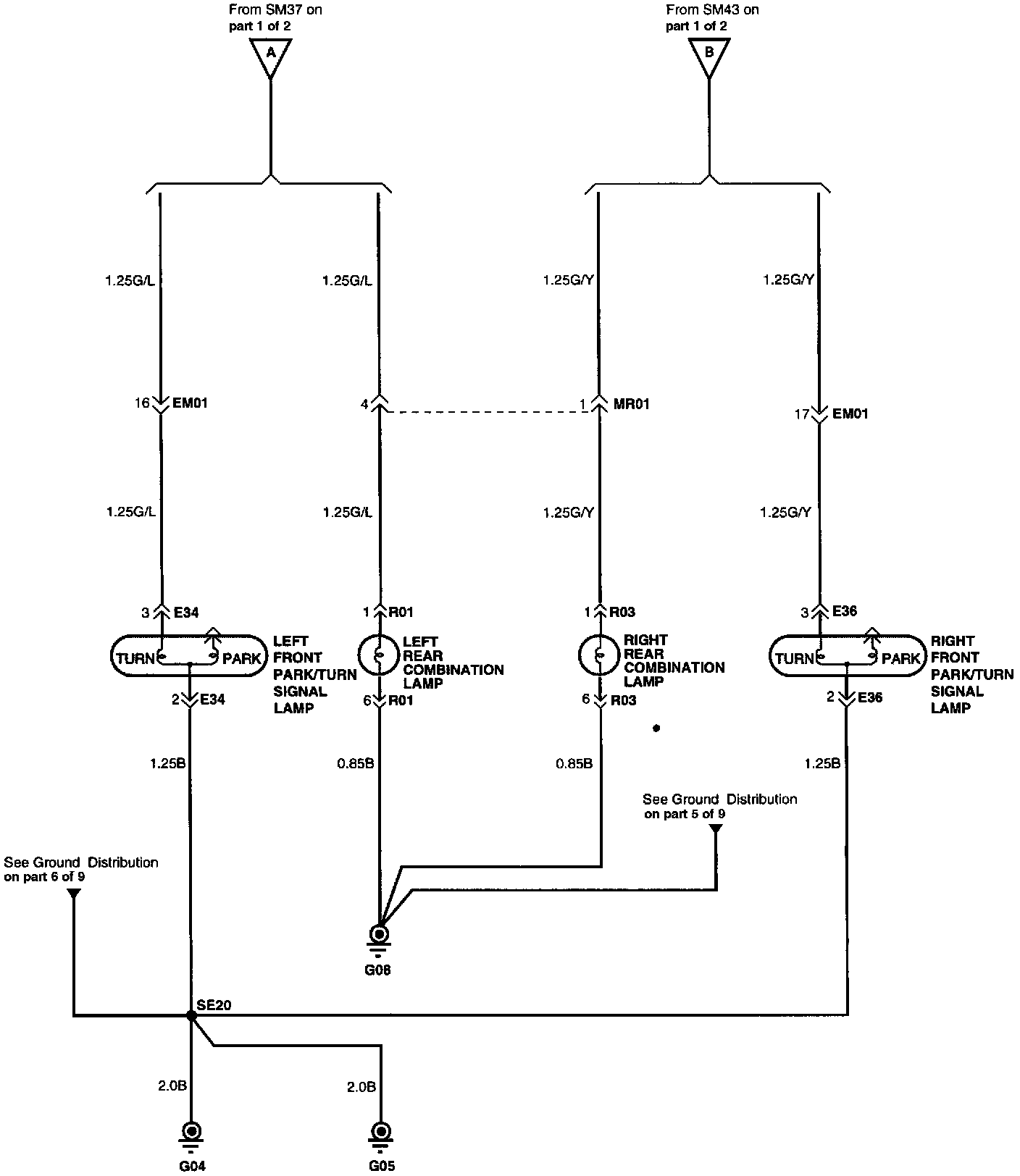

Turn/Hazard Lamps (Part 1 Of 2):
Turn/Hazard Lamps (Part 2 Of 2):
Electrical Diagrams
Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views
Connector Locations Are Found In The Locations Section Of The Turn Signal and Hazard Warning Lamps.
