Engine Harness

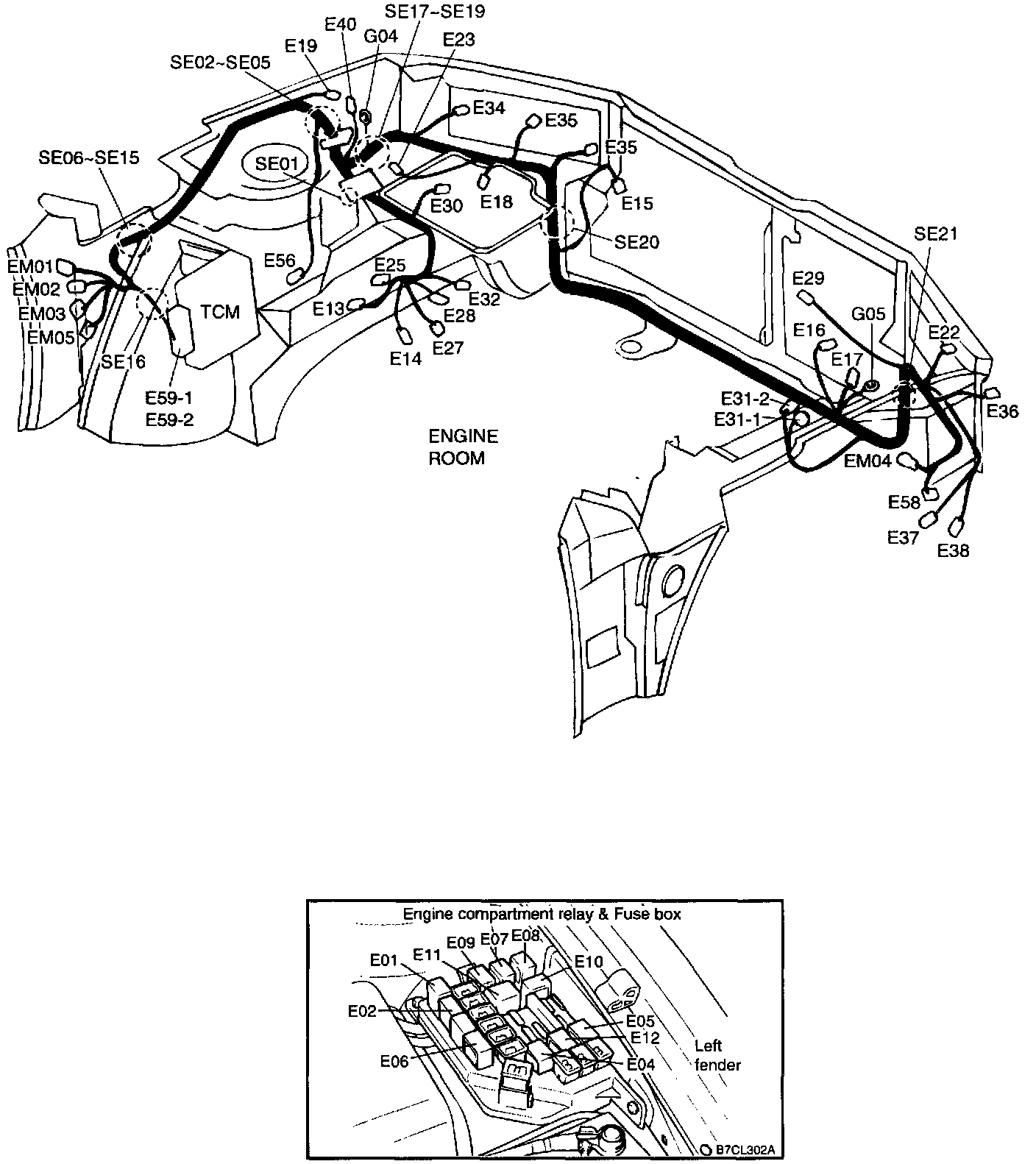

Harness Layout

E01 Head lamp relay (High)
E02 Tail lamp relay (DRL)
E04 Start relay
E05 Condenser fan relay
E06 Head lamp relay (Low)
E07 Radiator fan relay
E08 A/C relay
E08-1 Horn relay
E09 Front fog lamp relay
E10 Tail lamp relay
E11 Blower relay
E12 Horn relay
E13 A/T pulse generator
E14 K/D servo switch
E15 Left front fog lamp
E16 Right front fog lamp
E17 A/C pressure switch
E18 Horn
E19 DRL resistor
E22 Right head lamp
E23 Canister close valve (CCV)
E25 Transaxle valve body (A/T solenoid)
E26 Radiator fan motor
E27 Back up lamp switch
E28 Transaxle range switch
E29 Condenser fan motor
E30 Start solenoid extension
E31-1 Generator (B+)
E31-2 Generator (L,S)
E32 A/T oil temperature sensor
E34 Left front combination lamp
E35 Left head lamp
E36 Right front combination lamp
E37 Front washer motor
E38 Rear washer motor
E40 DRL control module
E56 Left front wheel sensor
E58 ABS relay box
E59-1 Transaxle control module (TCM)
E59-2 Transaxle control module (TCM)
EM01 Connection with MAIN harness
EM02 Connection with MAIN harness
EM03 Connection with MAIN harness
EM04 Connection with ABS harness
EM05 Connection with MAIN harness
GR0UND G04
GR0UND G05
